Connector End Views - Power System

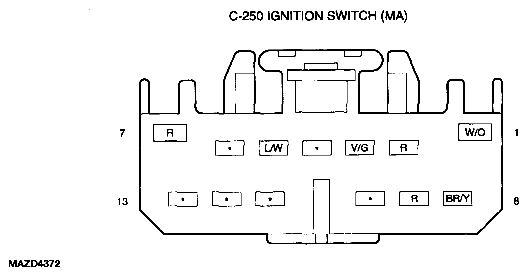

Fig 1: Identifying C250 Ignition Switch (MA) Connector Terminals
G04929074Courtesy of MAZDA MOTORS CORP.
Fig 2: Identifying J-2280b Smart Junction Box (SJB) (MA) Connector Terminals
G04930924Courtesy of MAZDA MOTORS CORP.
Fig 3: Identifying J-2280c Smart Junction Box (SJB) (MA) Connector Terminals
G04930917Courtesy of MAZDA MOTORS CORP.
