Front Oil Seal Replacement: Notes

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the drive belt. (See DRIVE BELT REPLACEMENT .)
  3. Remove in the order indicated in the figure.

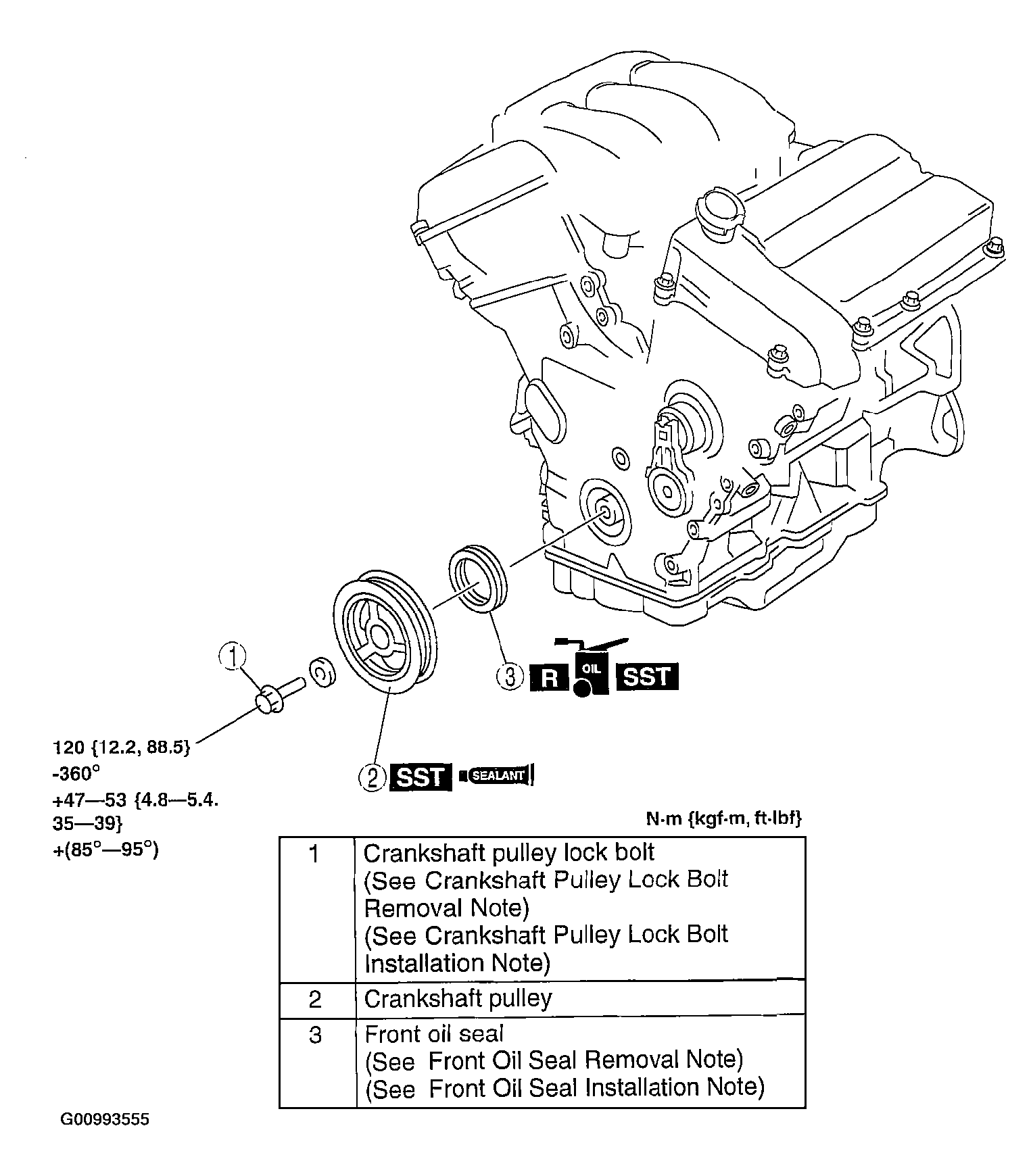

    Fig 1: Removing/Installing Front Oil Seal
    G00993555Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order or removal.
