Torque Specifications

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

TORQUE SPECIFICATIONS

Application

Ft. Lbs. (N.m)

Connector Rod Cap Nuts

⁽¹⁾

Crankshaft Damper Bolt

Step 1

88 (120)

Step 2

Loosen One Full Turn

Step 3

35-39 (47-53)

Step 4

Additional 85-95 Degrees

Crankshaft Main Bearing Cap Bolts

⁽¹⁾

Cylinder Head Bolts ⁽²⁾

Step 1

24-28 (32-38)

Step 2

Additional 85-95 Degrees

Step 3

Loosen One Full Turn

Step 4

24-28 (32-38)

Step 5

Additional 85-95 Degrees

Step 6

Additional 85-95 Degrees

Drive Belt Tensioner

15-22 (20-30)

EGR Pipe Nuts

26-33 (35-45)

EGR Valve Bolts

14-19 (19-26)

Engine Front Cover Bolts ⁽³⁾

15-22 (20-30)

Engine Hanger Bolt

73-92 (100-125)

Engine Mount Nuts

50-67(67-93)

Engine Mount Through Bolts

63-86 (85-116)

Exhaust Manifold Nuts ⁽⁴⁾⁽⁵⁾

15-18 (20-25)

Flex Plate Bolts ⁽⁶⁾

54-64 (73-87)

Generator Bolts

29-24 (40-55)

Generator Bracket Bolts

15-22 (20-30)

Heated Oxygen Sensor

22-36 (29-49)

Knock Sensor

15-22 (20-30)

Oil Pan Drain Plug

16-22 (22-30)

Oil Pan Bolts ⁽⁷⁾

15-22 (20-30)

Oil Pressure Switch

9-12 (12-16)

Spark Plug

7-15 (9-20)

Starter Motor Bolts

28-38 (38-51)

Transmission-To-Engine Bolts

28-38 (38-51)

INCH Lbs. (N.m)

A/C Pipe Stay Nut

80-115 (9-13)

Battery Clamp Nuts

35-62 (4-7)

Battery Tray Bolts & Nut

71-106 (8-12)

Camshaft Bearing Cap Bolts

71-106 (8-12)

Camshaft Position Sensor

71-106 (8-12)

Crankshaft Position Sensor

71-106 (8-12)

Ignition Coil Bolts

53-70 (6-8)

Intake Manifold Bolts (Lower) ⁽⁸⁾

71-106 (8-12)

Intake Manifold Bolts (Upper) ⁽⁹⁾

71-106 (8-12)

Oil Level Indicator Tube Bolt

71-106 (8-12)

Oil Pump Bolts ⁽¹⁰⁾

71-106 (8-12)

Oil Strainer Bolts

71-106 (8-12)

Oil Strainer Stay Nut

Step 1

133 (15)

Step 2

Additional 45 Degrees

PCM Connector Bolt

26-44 (3-5)

PCM Bracket Nuts

80-115 (9-13)

Radiator Bracket Bolts

71-106 (8-12)

Starter Motor Terminal Nuts

89-106 (10-12)

Thermostat Cover Bolts

71-106 (8-12)

Valve Cover Bolts ⁽¹¹⁾⁽¹²⁾

71-106 (8-12)

Water Bypass Tube Bolts

71-106 (8-12)

Water Pump Bolt

89 (10)

Water Pump Drive Belt Tensioner Bolt

71-106 (8-12)

⁽¹⁾	Specification not provided from manufacturer.

⁽²⁾	Tighten bolts in sequence. See Fig 1.

⁽³⁾	Tighten bolts in sequence. See Fig 2.

⁽⁴⁾	Tighten bolts in sequence. See Fig 3.

⁽⁵⁾	Tighten bolts in sequence. See Fig 4.

⁽⁶⁾	Tighten bolts in sequence. See Fig 5.

⁽⁷⁾	Tighten bolts in sequence. See Fig 6.

⁽⁸⁾	Tighten bolts in sequence. See Fig 7.

⁽⁹⁾	Tighten bolts in sequence. See Fig 8.

⁽¹⁰⁾	Tighten bolts in sequence. See Fig 9.

⁽¹¹⁾	Tighten bolts in sequence. See Fig 10.

⁽¹²⁾	Tighten bolts in sequence. See Fig 11.

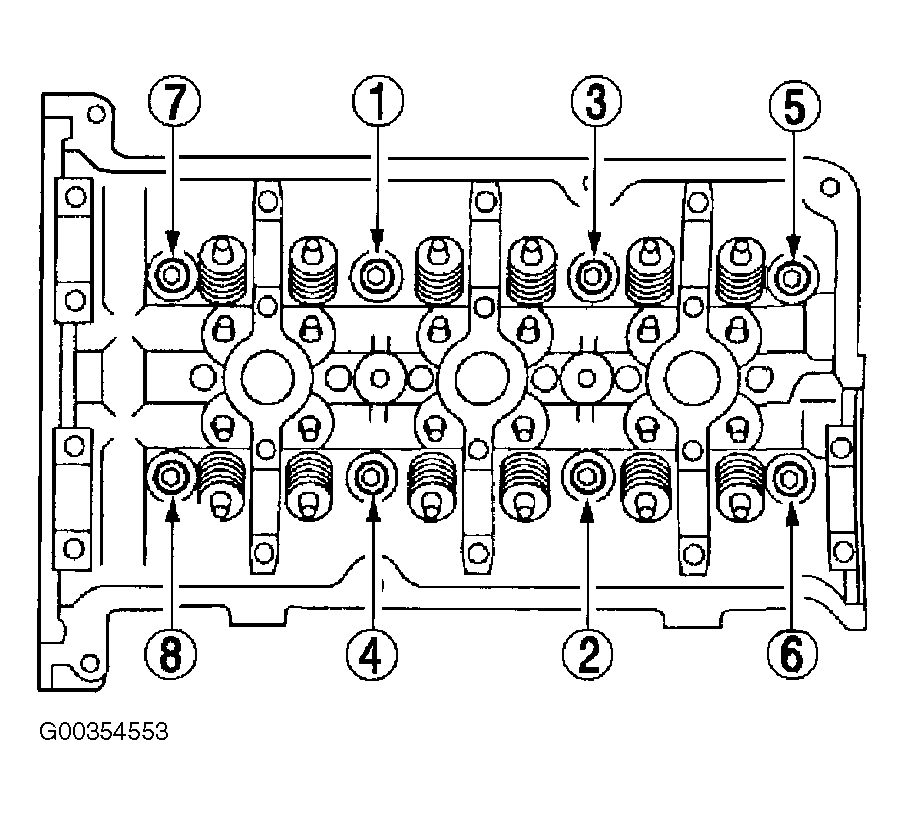

Fig 1: Cylinder Head Bolt Tightening Sequence

Courtesy of MAZDA MOTOR CORP.

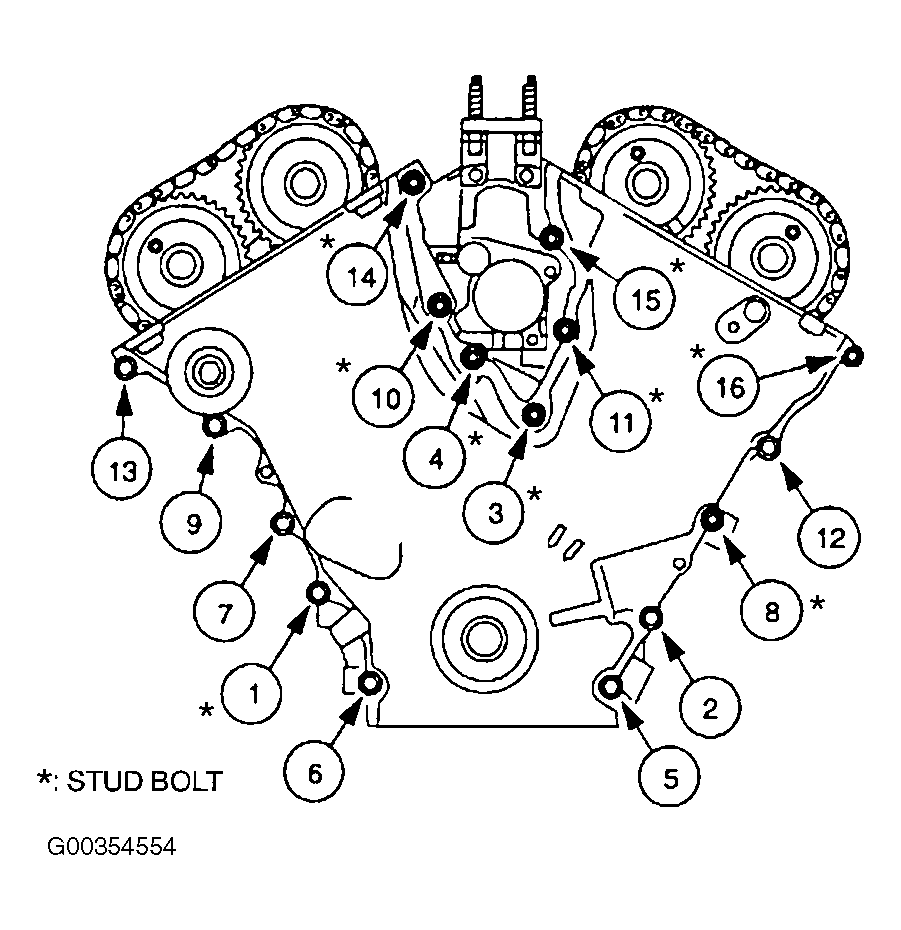

Fig 2: Engine Front Cover Bolt Tightening Sequence

Courtesy of MAZDA MOTOR CORP.

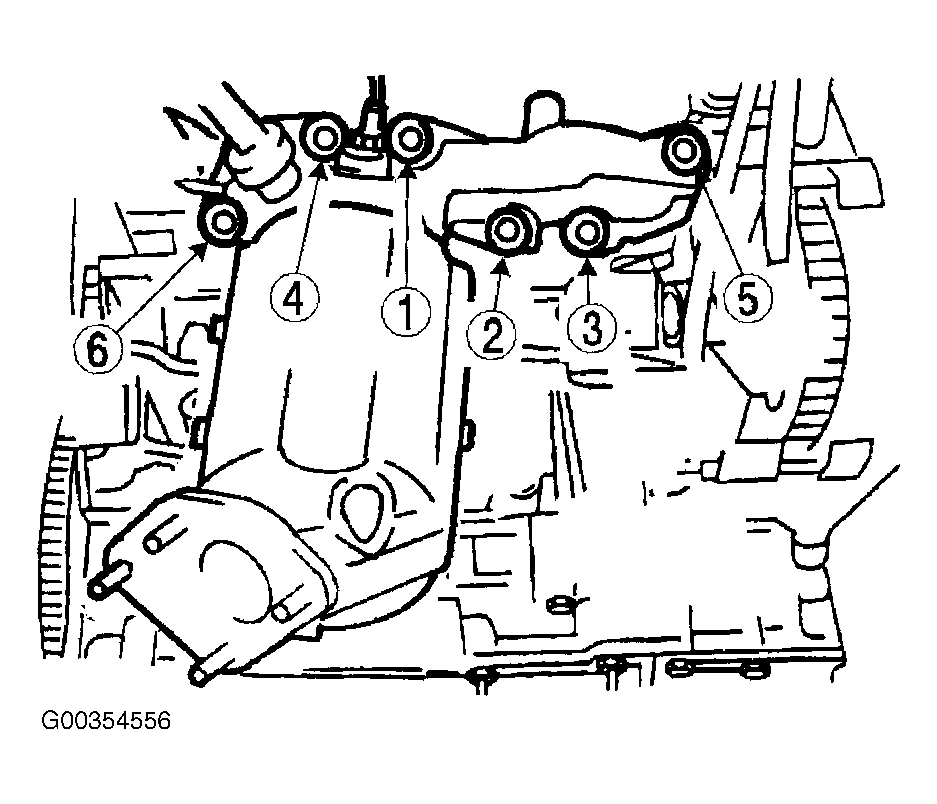

Fig 3: Exhaust Manifold Nut Tightening Sequence (Left)

Courtesy of MAZDA MOTOR CORP.

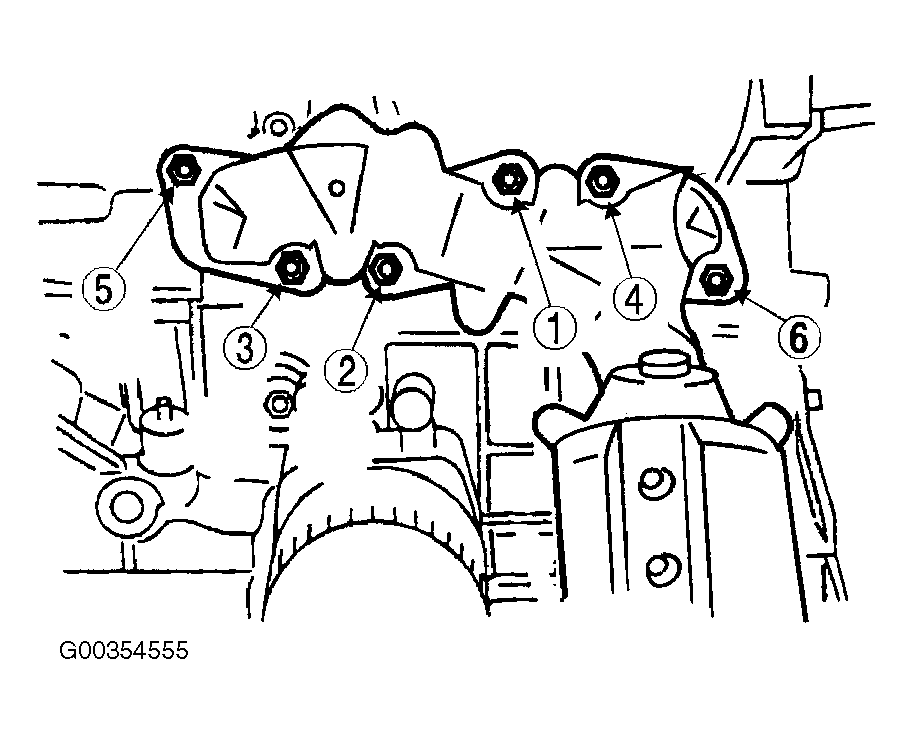

Fig 4: Exhaust Manifold Nut Tightening Sequence (Right)

Courtesy of MAZDA MOTOR CORP.

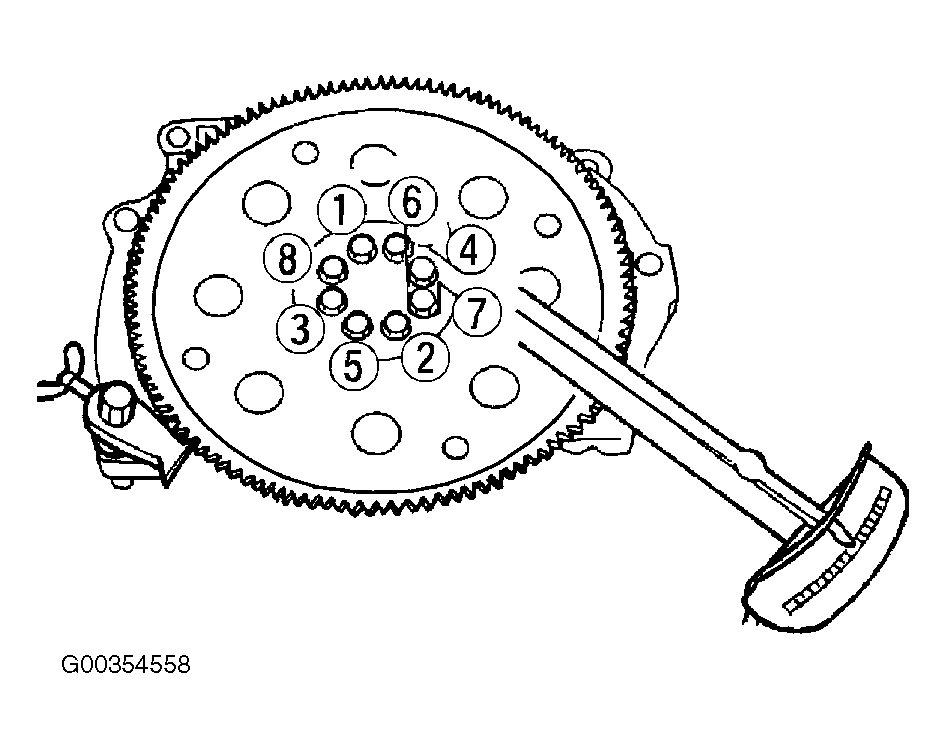

Fig 5: Flex Plate Bolt Tightening Sequence

Courtesy of MAZDA MOTOR CORP.

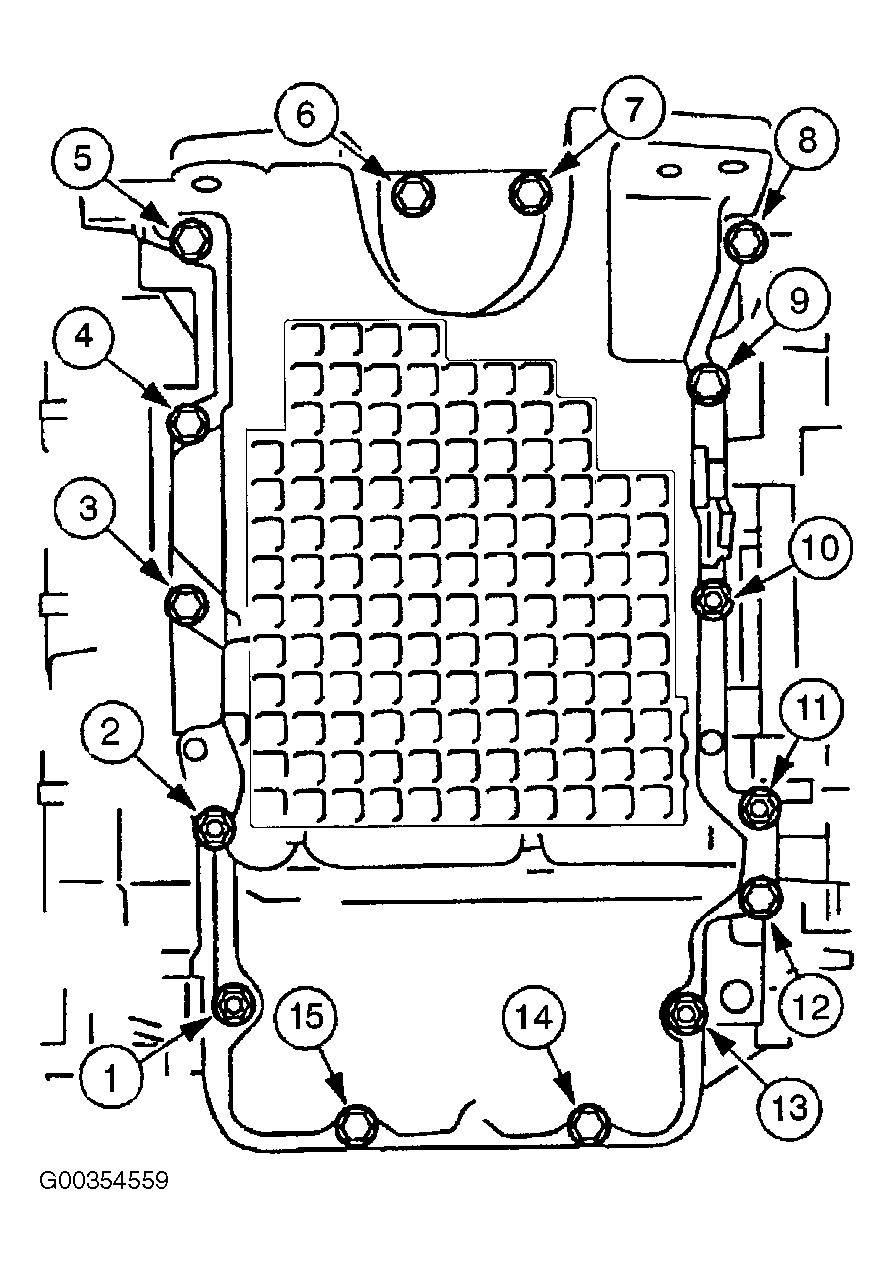

Fig 6: Oil Pan Bolt Tightening Sequence

Courtesy of MAZDA MOTOR CORP.

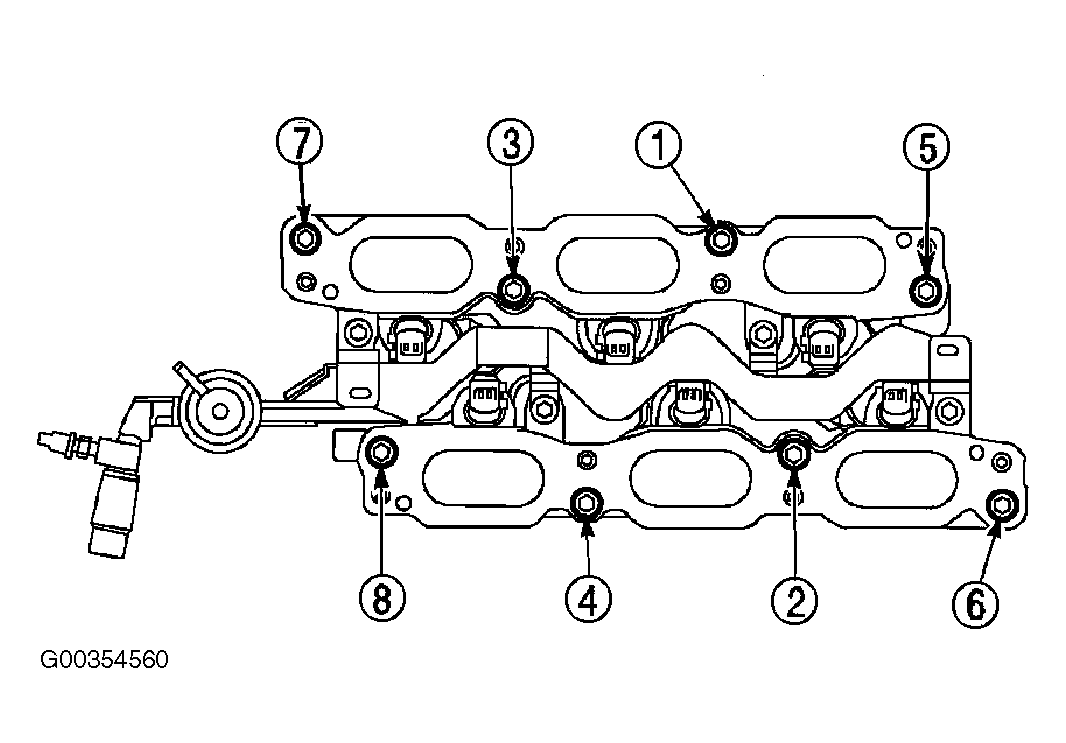

Fig 7: Intake Manifold Bolt Tightening Sequence (Lower)

Courtesy of MAZDA MOTOR CORP.

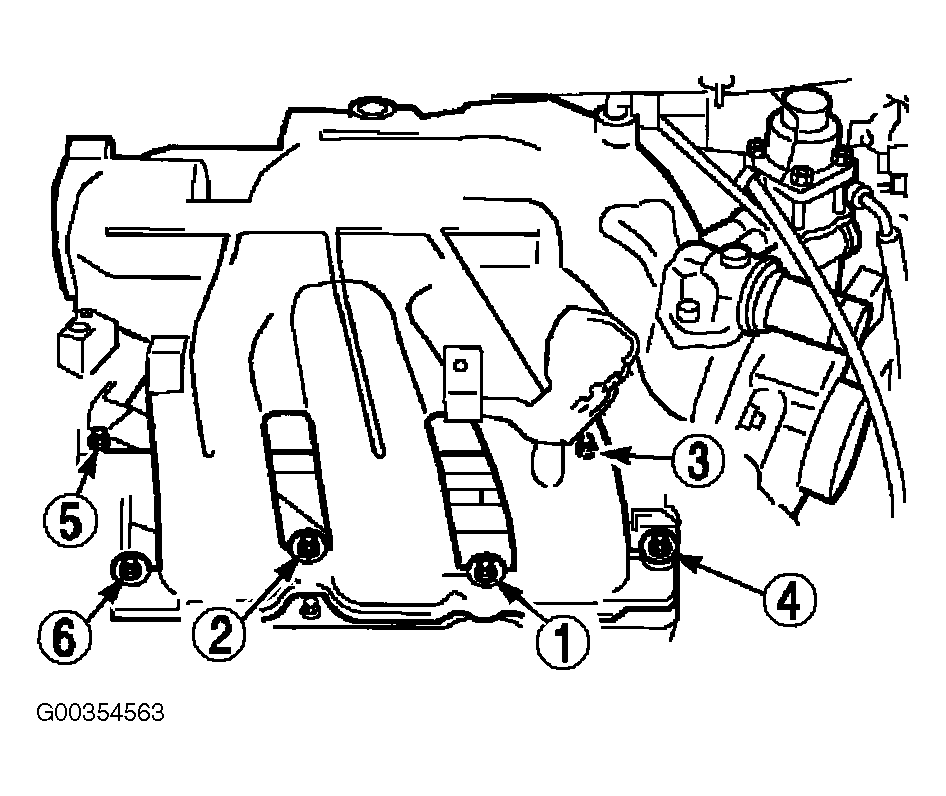

Fig 8: Intake Manifold Bolt Tightening Sequence (Upper)

Courtesy of MAZDA MOTOR CORP.

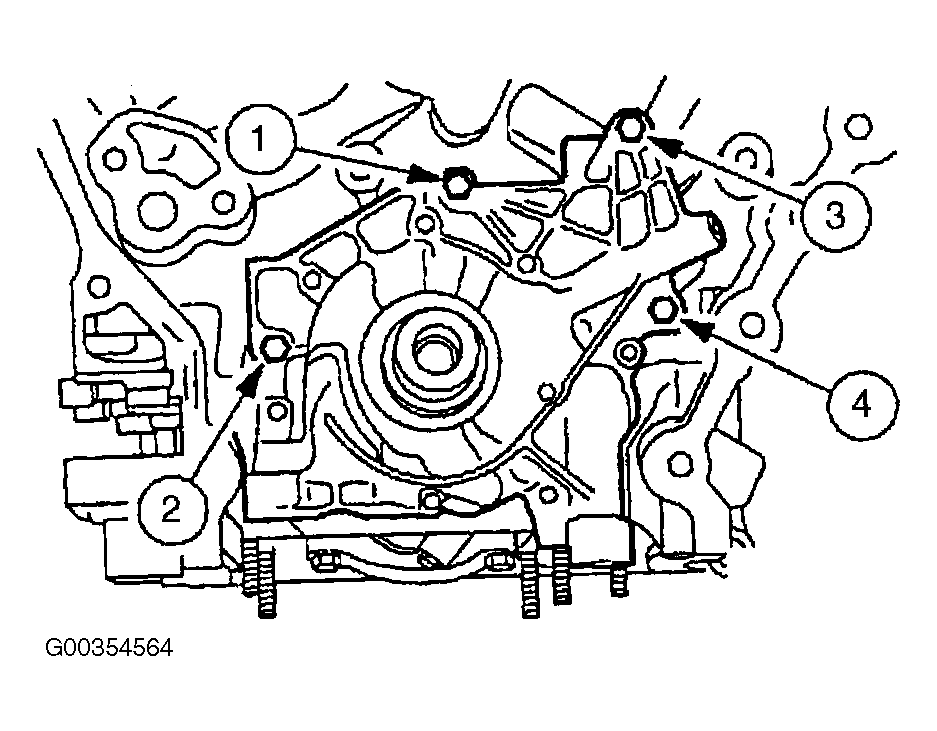

Fig 9: Oil Pump Bolt Tightening Sequence

Courtesy of MAZDA MOTOR CORP.

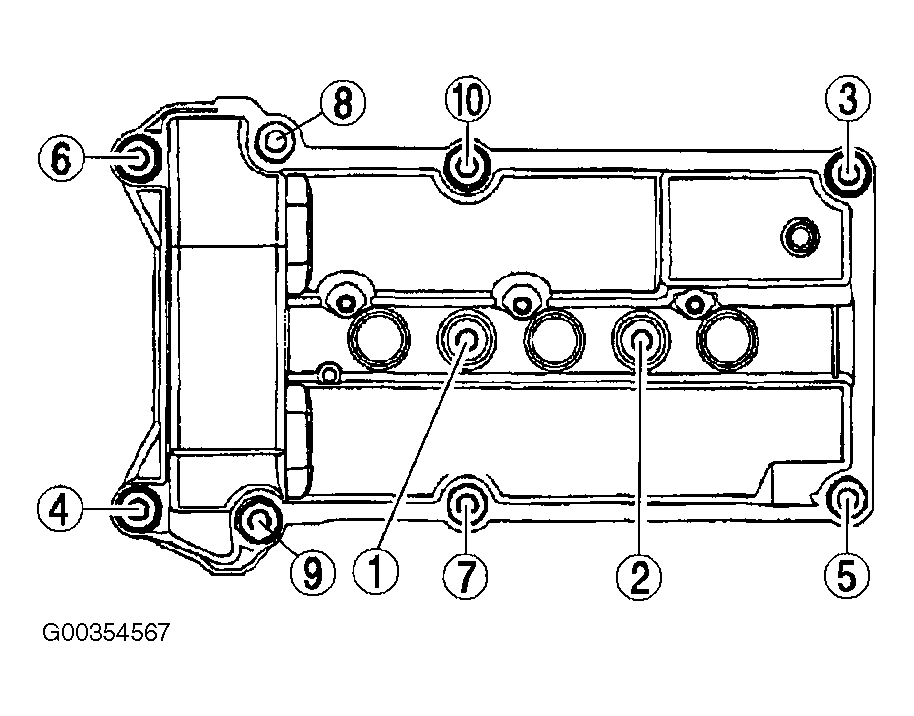

Fig 10: Valve Cover Bolt Tightening Sequence (Right)

Courtesy of MAZDA MOTORS CORP.

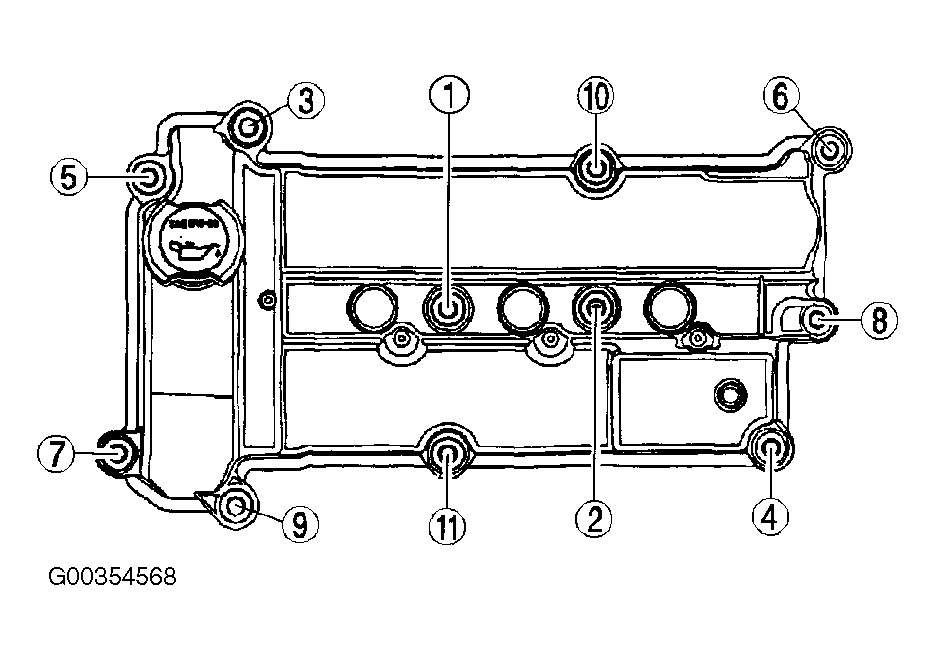

Fig 11: Valve Cover Bolt Tightening Sequence (Left)

Courtesy of MAZDA MOTORS CORP.
