Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel center finish panel. For additional information, refer to INSTRUMENT CLUSTER FINISH PANEL .

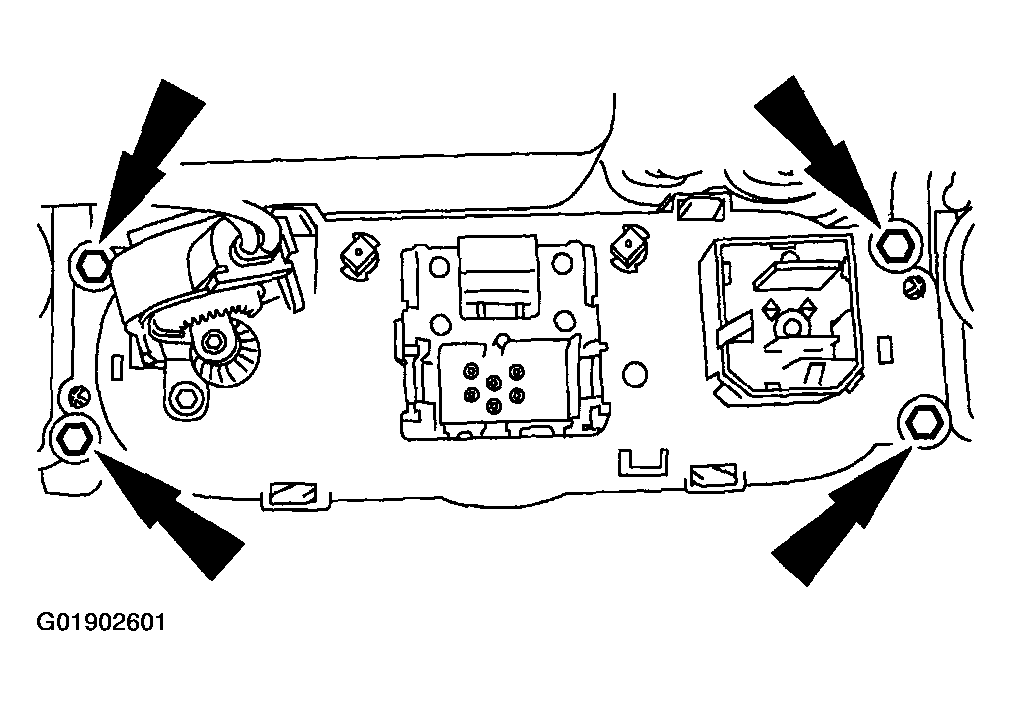

    Fig 1: Removing Climate Control Assembly
    G01902601Courtesy of MAZDA MOTORS CORP.
  2. Remove the four screws and the climate control assembly.
  3. To install, reverse the removal procedure.
