Water Pump Removal/Installation: Notes
WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION .)
- Drain the engine coolant. (See COOLING SYSTEM SERVICE WARNINGS .) (See ENGINE COOLANT REPLACEMENT .)
- Remove the water pump drive pulley. (See WATER PUMP DRIVE BELT PULLEY REMOVAL NOTE .)

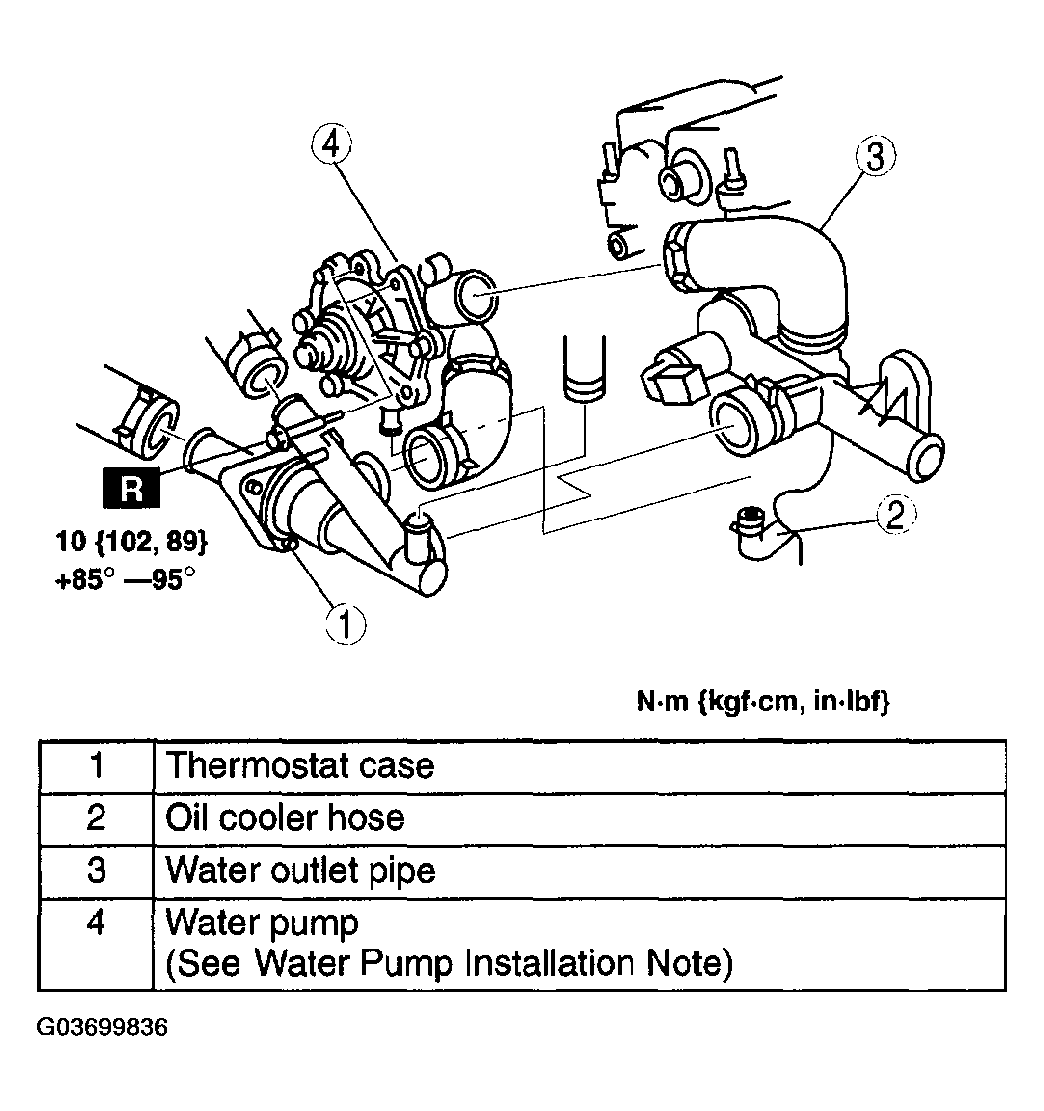

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
