Tie-rod End Boot Assembly Note
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Wipe the grease off the ball joint.
- Put a small amount of lithium-based grease into a new dust boot.

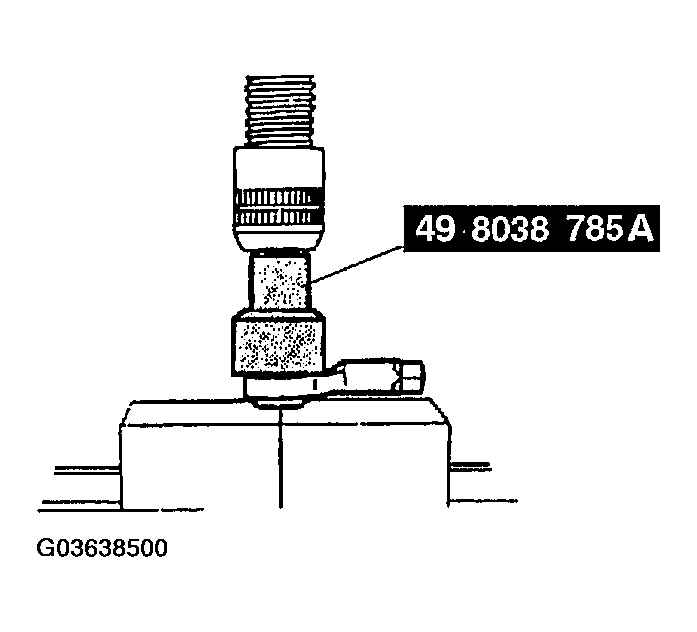

- Install the dust boot onto the tie-rod end using the SST
and a press.
Courtesy of MAZDA MOTORS CORP.
- Wipe away any excessive grease.
