A/C System Structural View

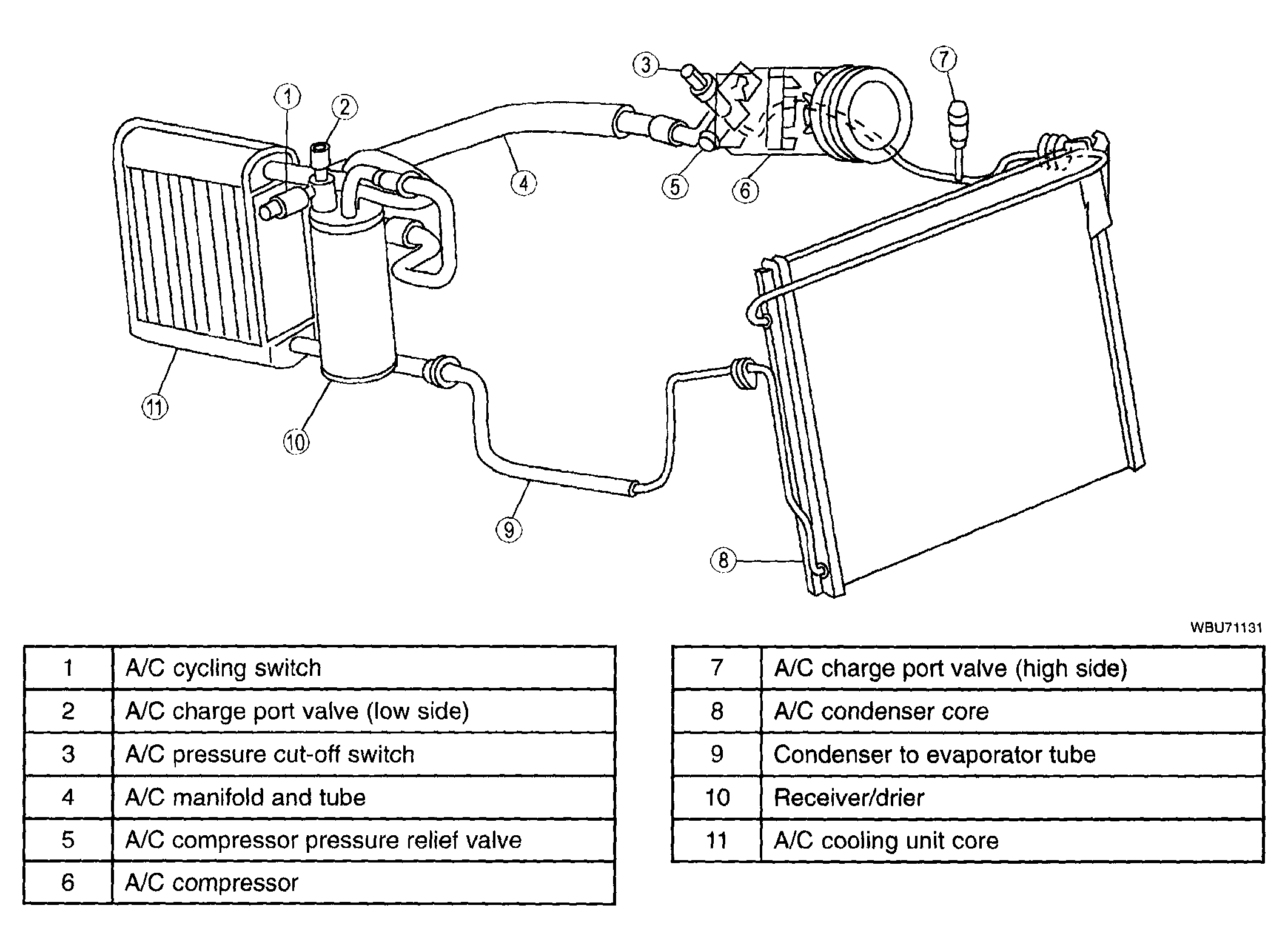

Fig 1: Identifying A/C System Structural View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
