Gearmotor Encoder Assembly Connector End View (C350)

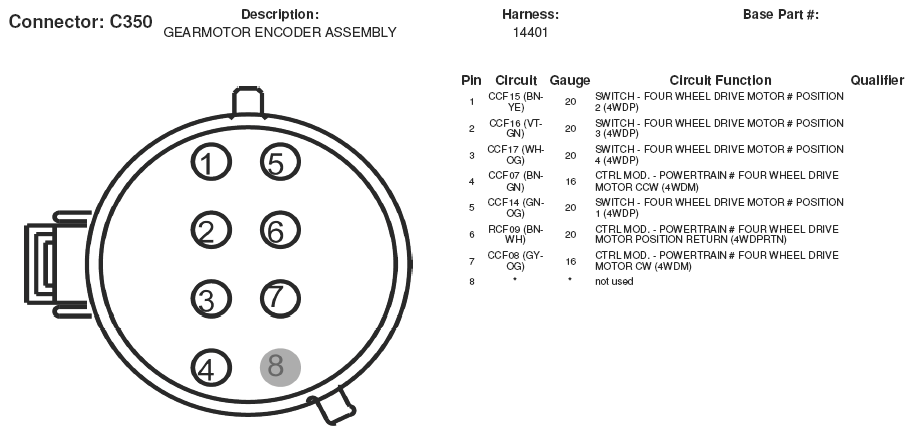

Fig 1: Gearmotor Encoder Assembly Connector End View (C350)
G05169229Courtesy of FORD MOTOR CO.
