Dual Proportioning Valve (Without Abs/TCS) And Brake Pipe Joint (With Abs/TCS) Replacement: Notes

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the table.

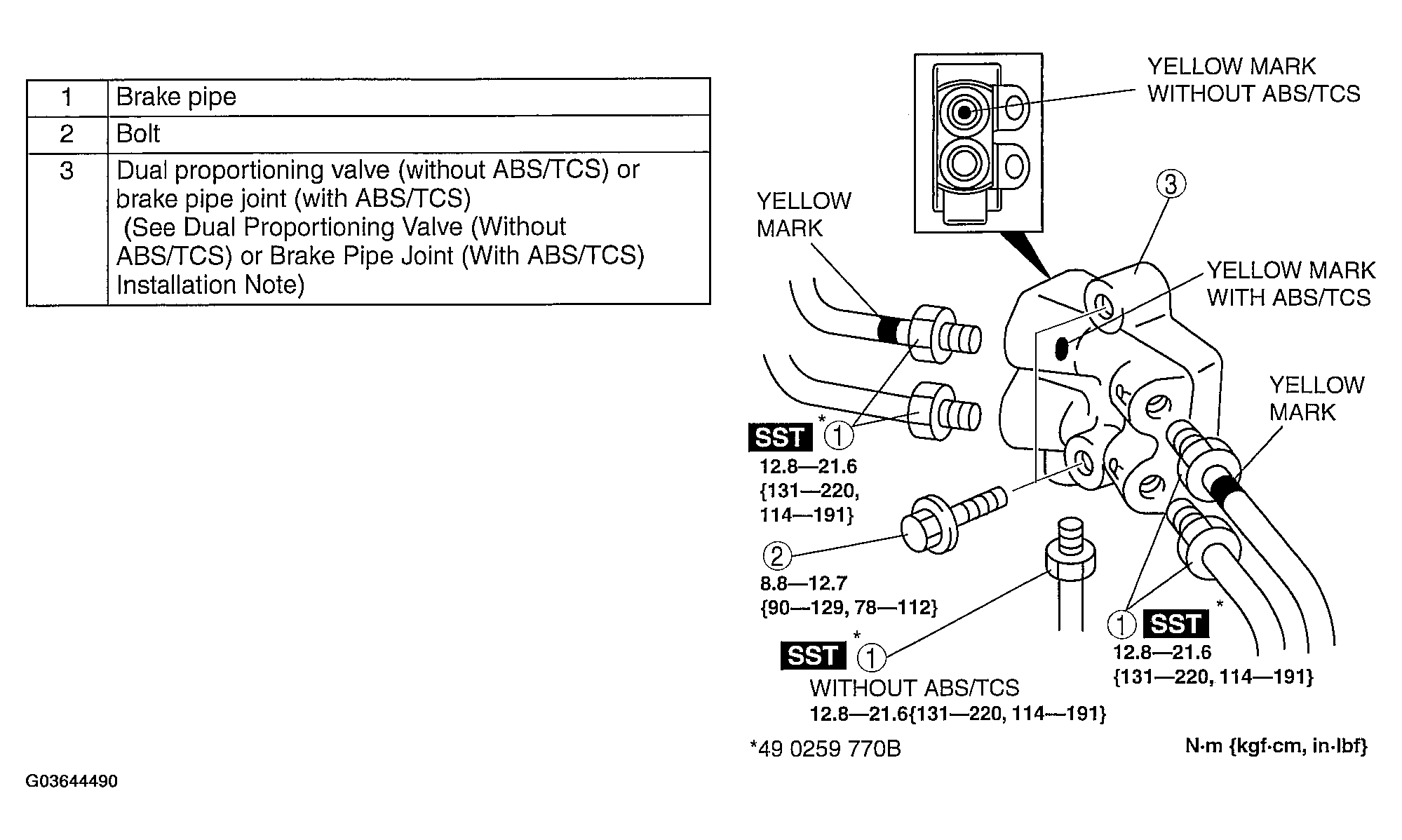

Fig 1: Removal Order Of Dual Proportioning Valve (Torque Specs)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
