Disc Plate Removal Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Mark the wheel hub bolt and disc plate before removal for reference during installation.

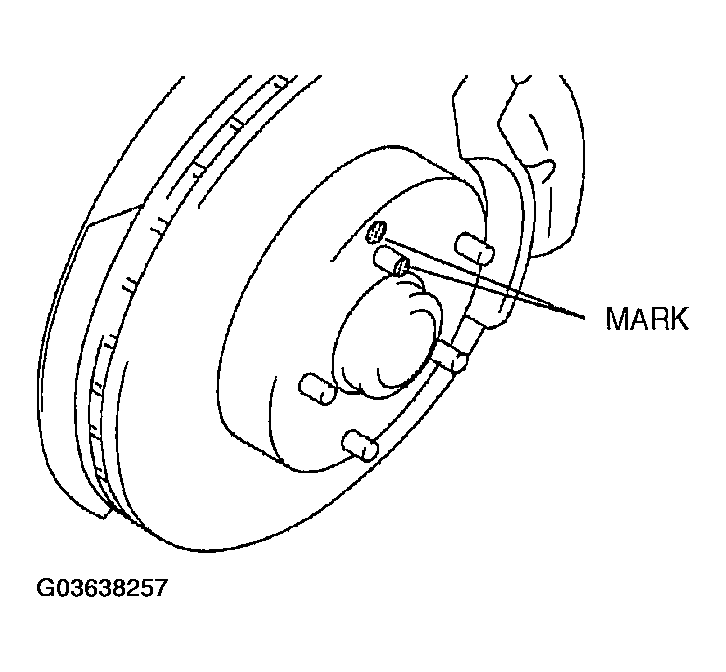

    Fig 1: Identifying Mark On Wheel Hub Bolt And Disc Plate
    G03638257Courtesy of MAZDA MOTORS CORP.
