Disc Pad Installation Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Turn the manual adjustment gear counterclockwise using an Allen wrench to pull the brake caliper piston back.
Install the disc pads.
Turn the manual adjustment gear clockwise until the brake pads just touch the disc plate.

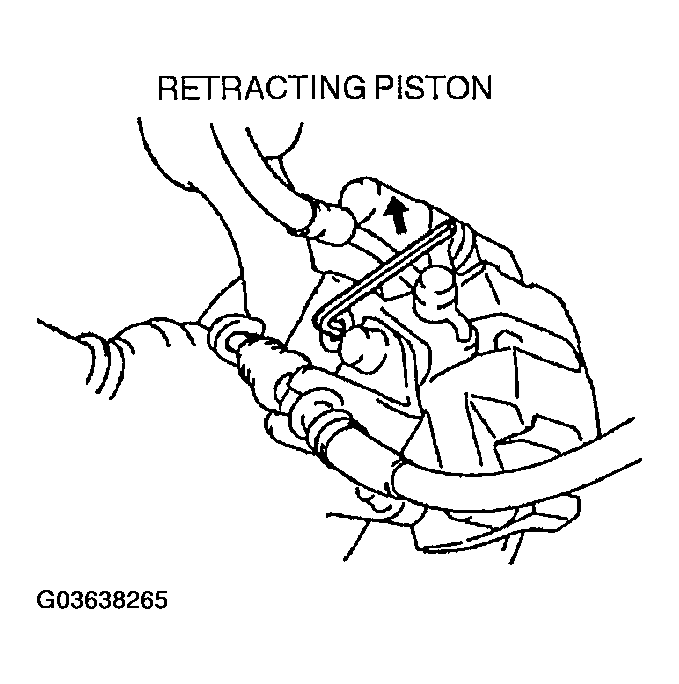

Fig 1: Identifying Retracting Piston
Courtesy of MAZDA MOTORS CORP.
Return the manual adjustment gear counterclockwise 1/3 turn.

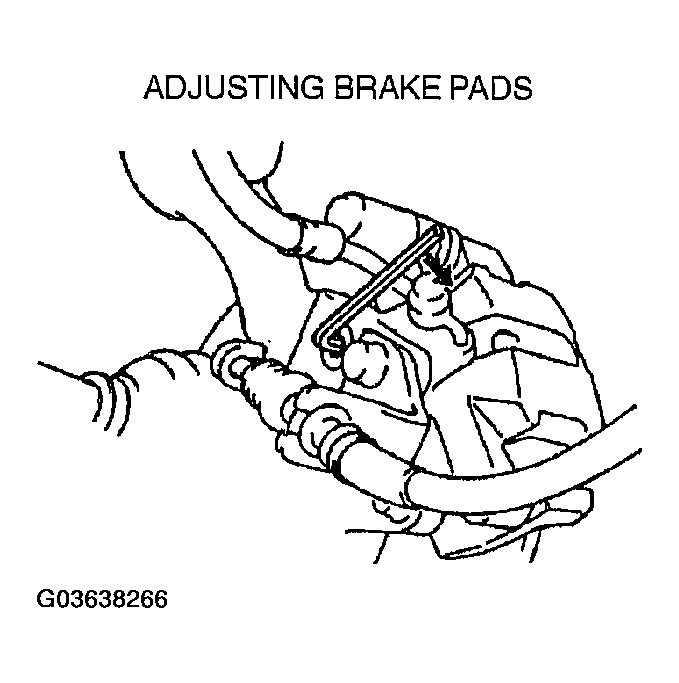

Fig 2: Identifying Adjusting Brake Pads
Courtesy of MAZDA MOTORS CORP.
