Pinpoint Test 1: All Power Windows Are Inoperative

WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

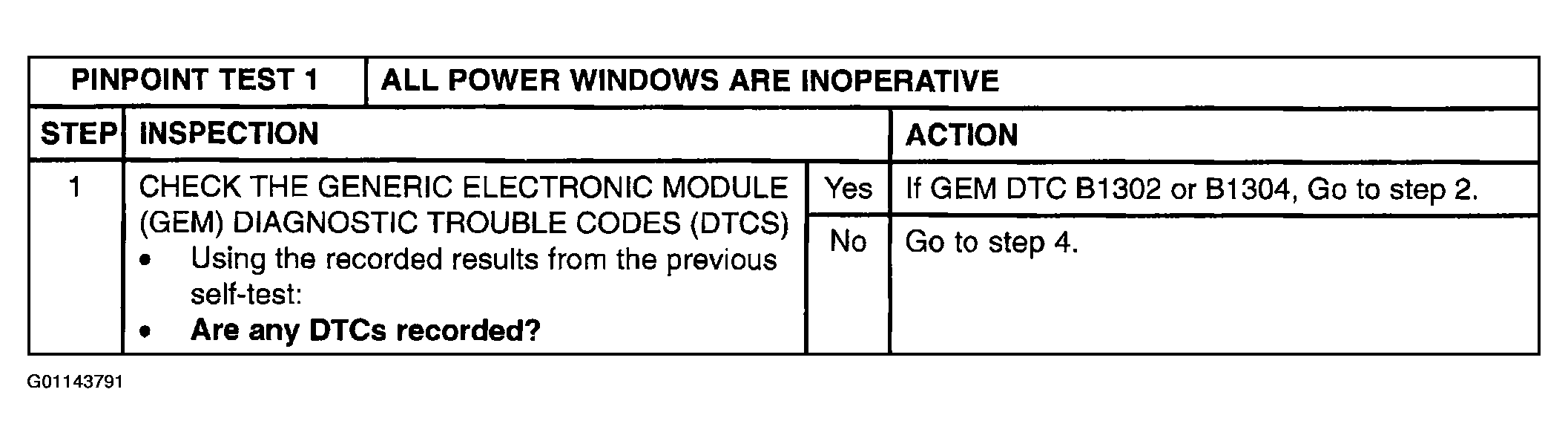

Fig 1: Pinpoint Test 1: All Power Windows Are Inoperative (Step 1)
G01143791Courtesy of MAZDA MOTORS CORP.

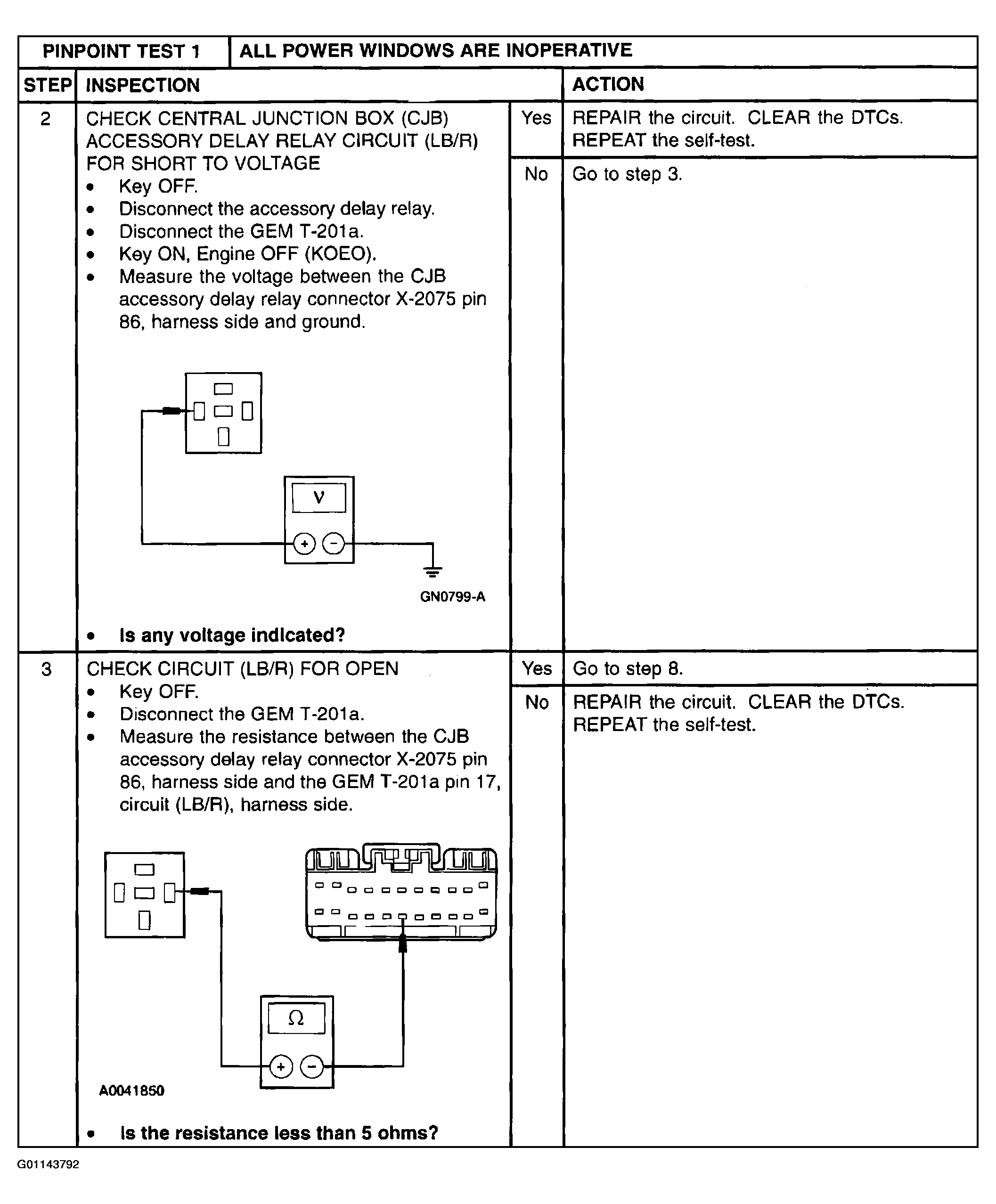

Fig 2: Pinpoint Test 1: All Power Windows Are Inoperative (Steps 2-3)
G01143792Courtesy of MAZDA MOTORS CORP.

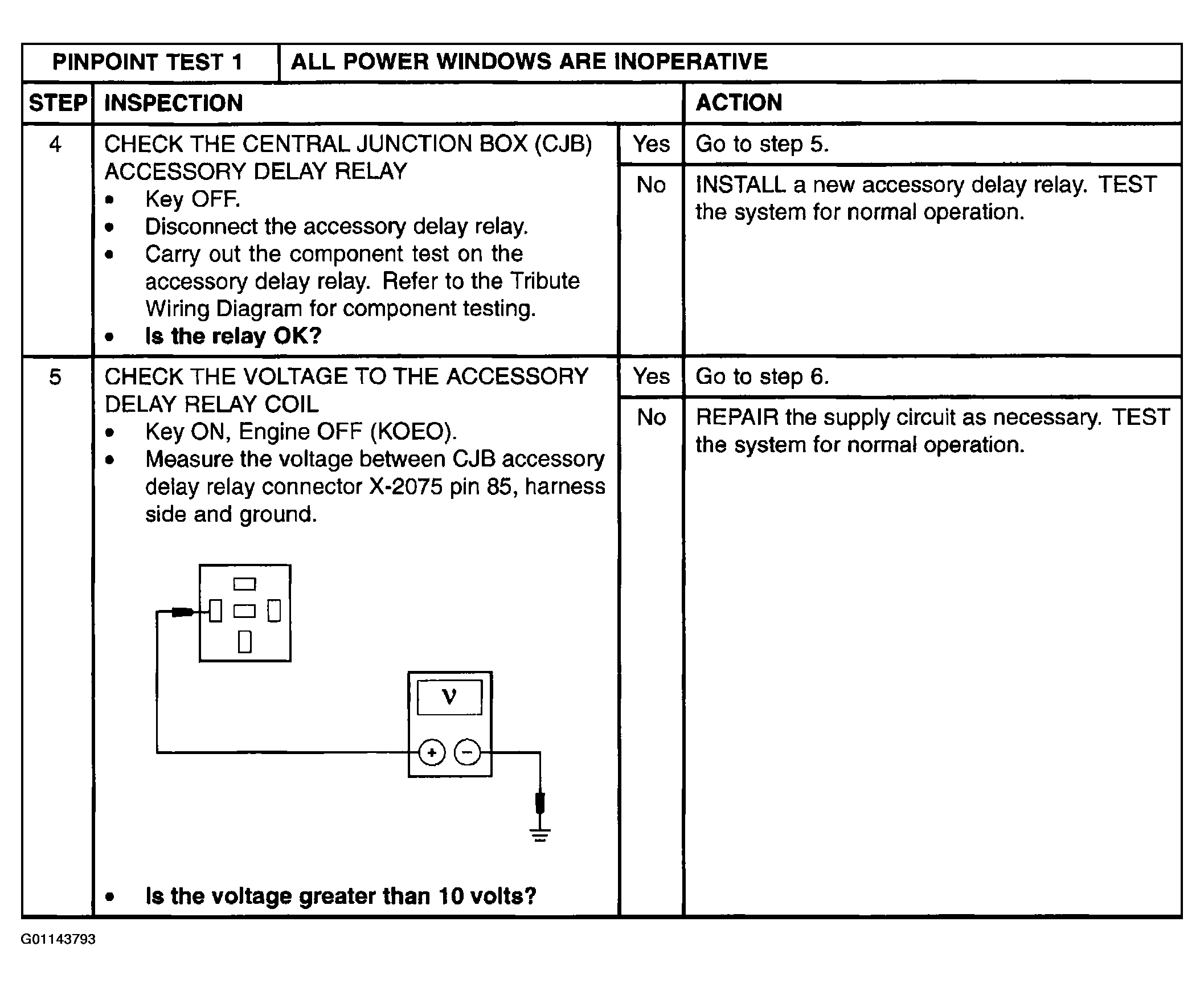

Fig 3: Pinpoint Test 1: All Power Windows Are Inoperative (Steps 4-5)
G01143793Courtesy of MAZDA MOTORS CORP.

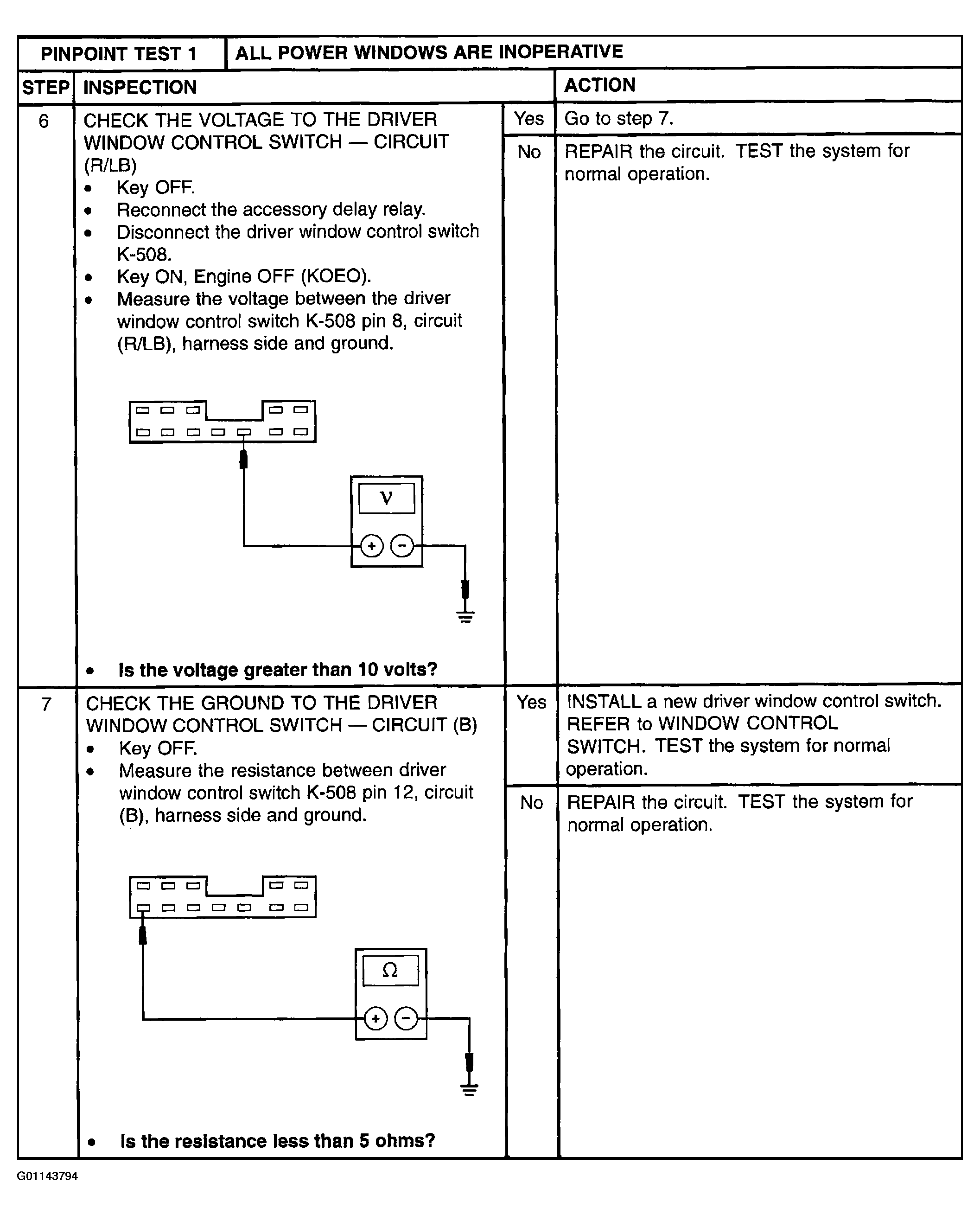

Fig 4: Pinpoint Test 1: All Power Windows Are Inoperative (Steps 6-7)
G01143794Courtesy of MAZDA MOTORS CORP.

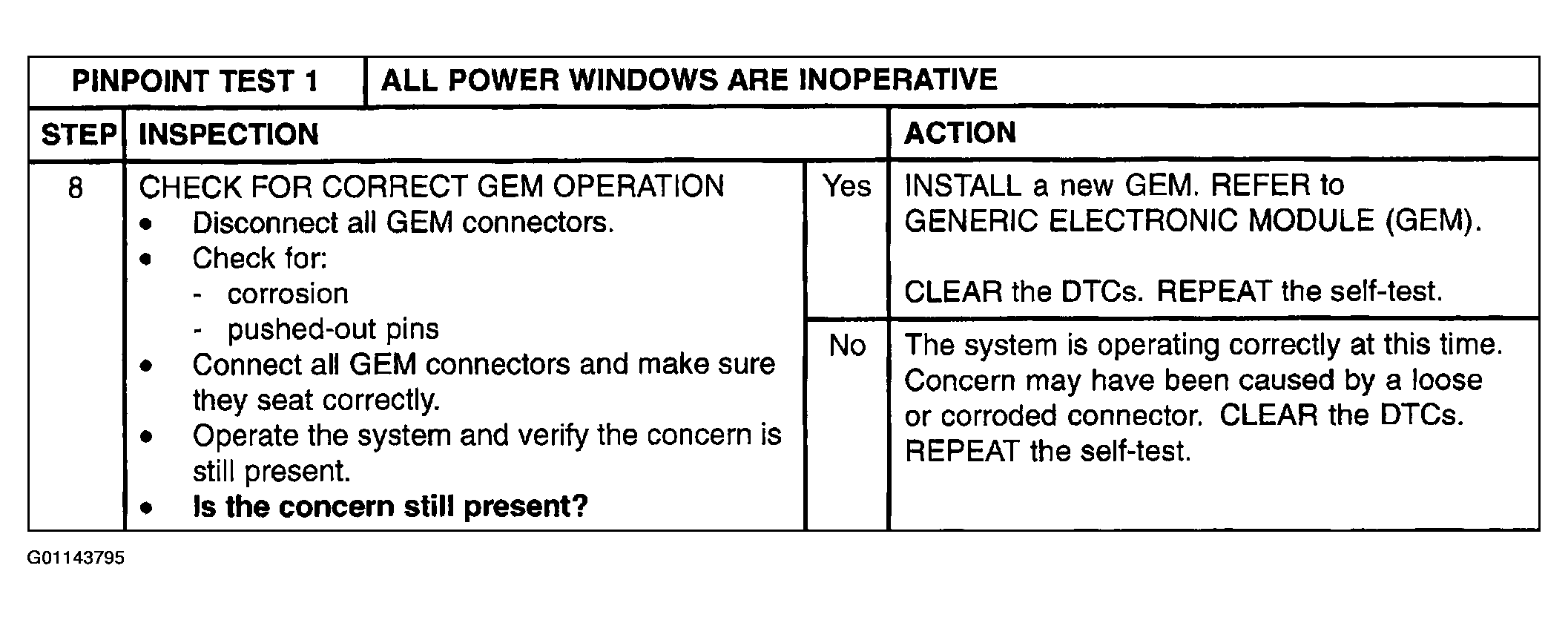

Fig 5: Pinpoint Test 1: All Power Windows Are Inoperative (Step 8)
G01143795Courtesy of MAZDA MOTORS CORP.
