Digital Transmission Range Sensor Connector End View (C167)

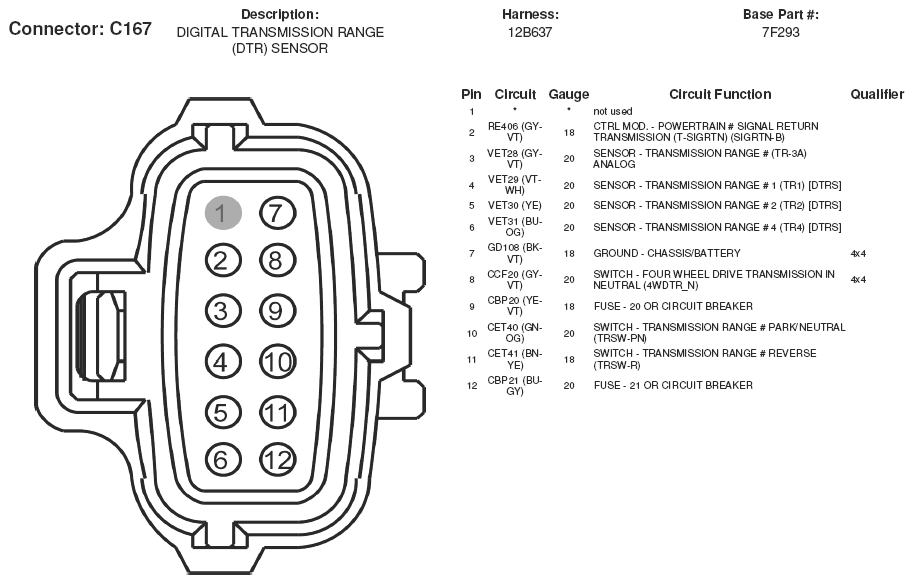

Fig 1: Digital Transmission Range Sensor Connector End View (C167)
G05169161Courtesy of FORD MOTOR CO.
