Interior Lamp/ Map Lamp Assembly Connector End View (C931)

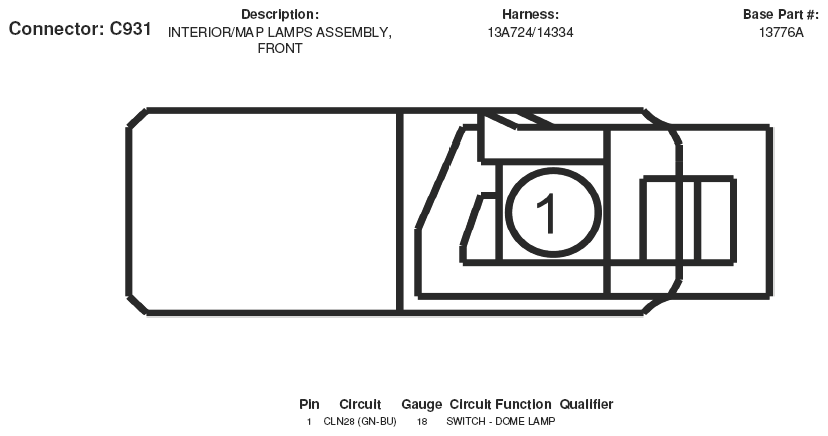

Fig 1: Interior Lamp/ Map Lamp Assembly Connector End View (C931)
G05169269Courtesy of FORD MOTOR CO.
