Intermediate Shaft Speed Sensor Connector End View (C164)

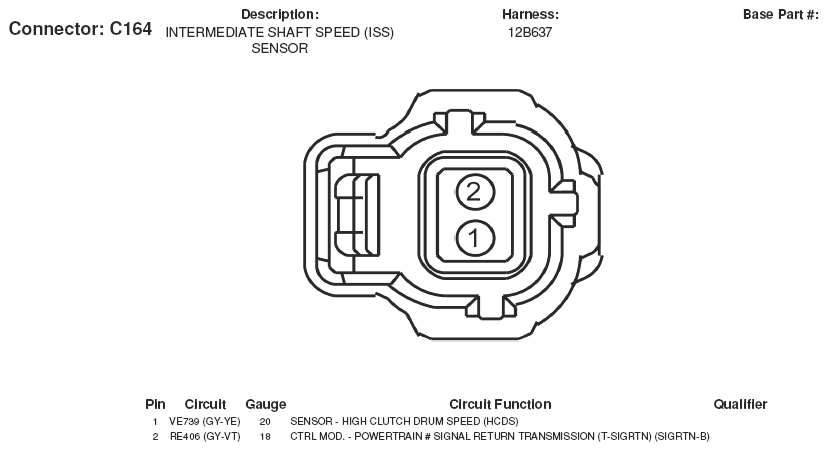

Fig 1: Intermediate Shaft Speed Sensor Connector End View (C164)
G05169160Courtesy of FORD MOTOR CO.
