Liftgate Lock Actuator Inspection [5HB, WGN]

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Apply battery positive voltage and connect ground to the corresponding liftgate lock actuator terminals, and inspect the liftgate lock actuator operation.
- If not as specified, replace the liftgate latch and lock actuator.

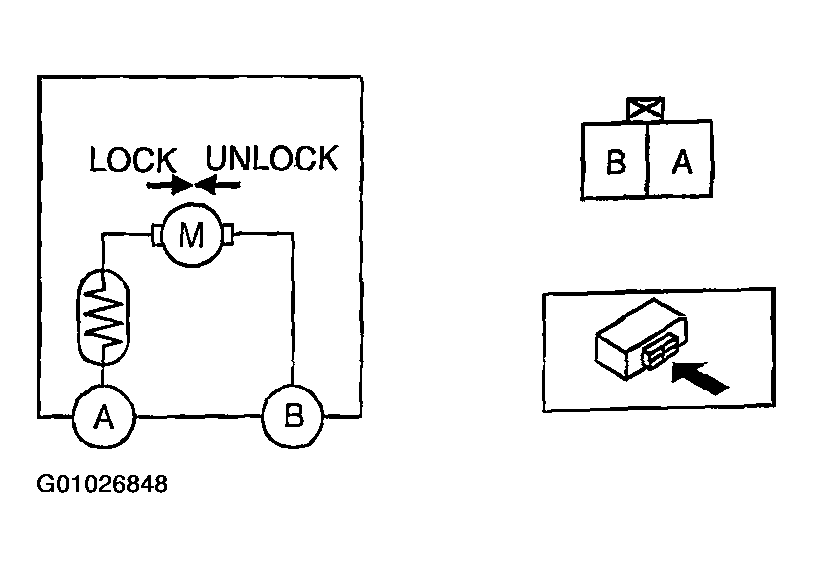

Fig 1: Identifying Liftgate Lock Actuator Operation

Courtesy of MAZDA MOTORS CORP.

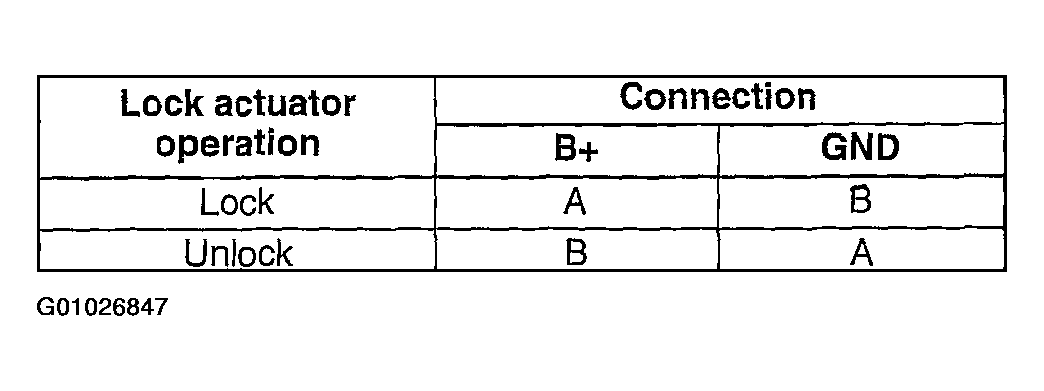

Fig 2: Identifying Liftgate Lock Actuator Connector Terminals

Courtesy of MAZDA MOTORS CORP.
