Home >> Mazda >> 2007 >> B4000 V6-4.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Differential Assembly >> Front Axle
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

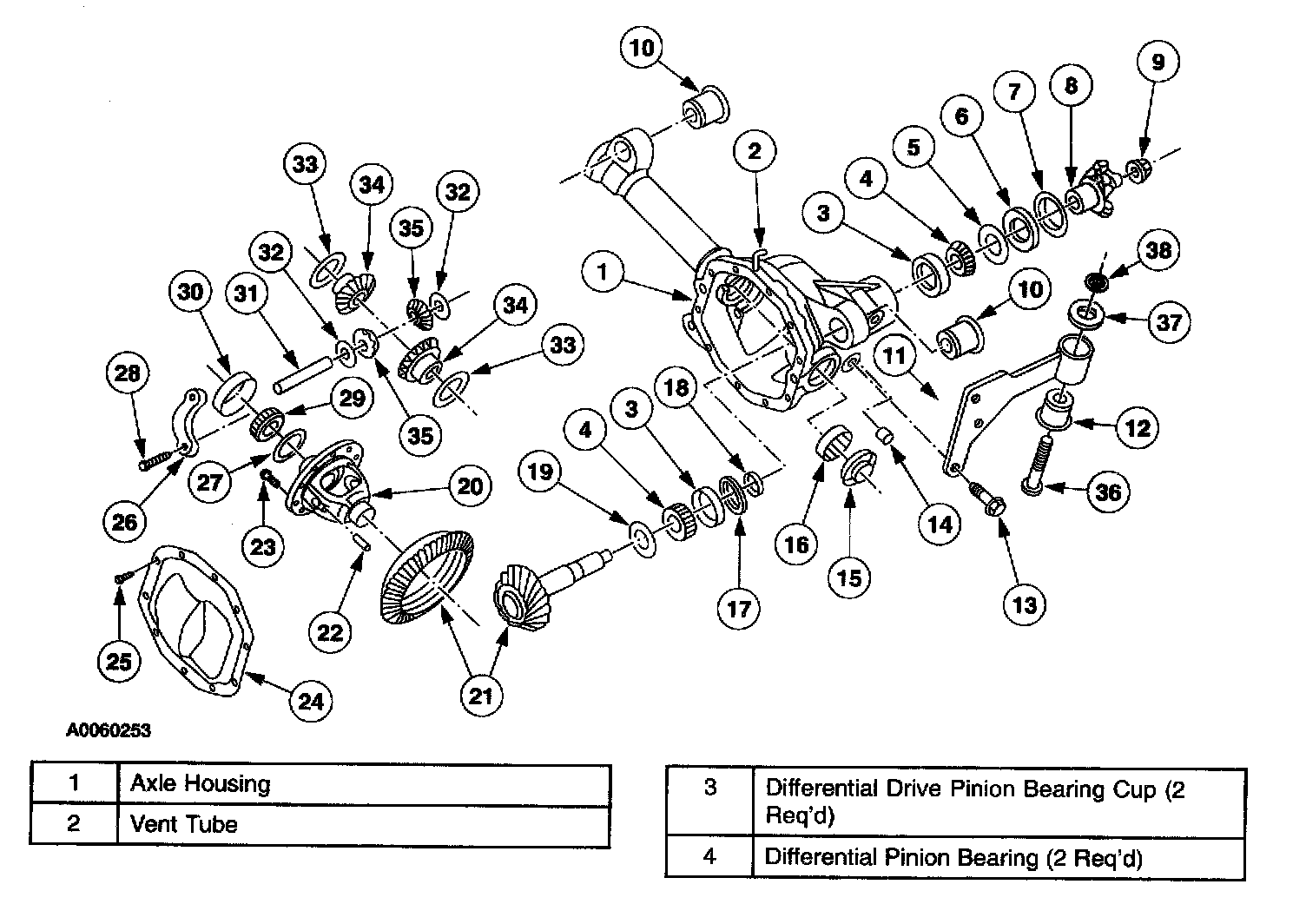

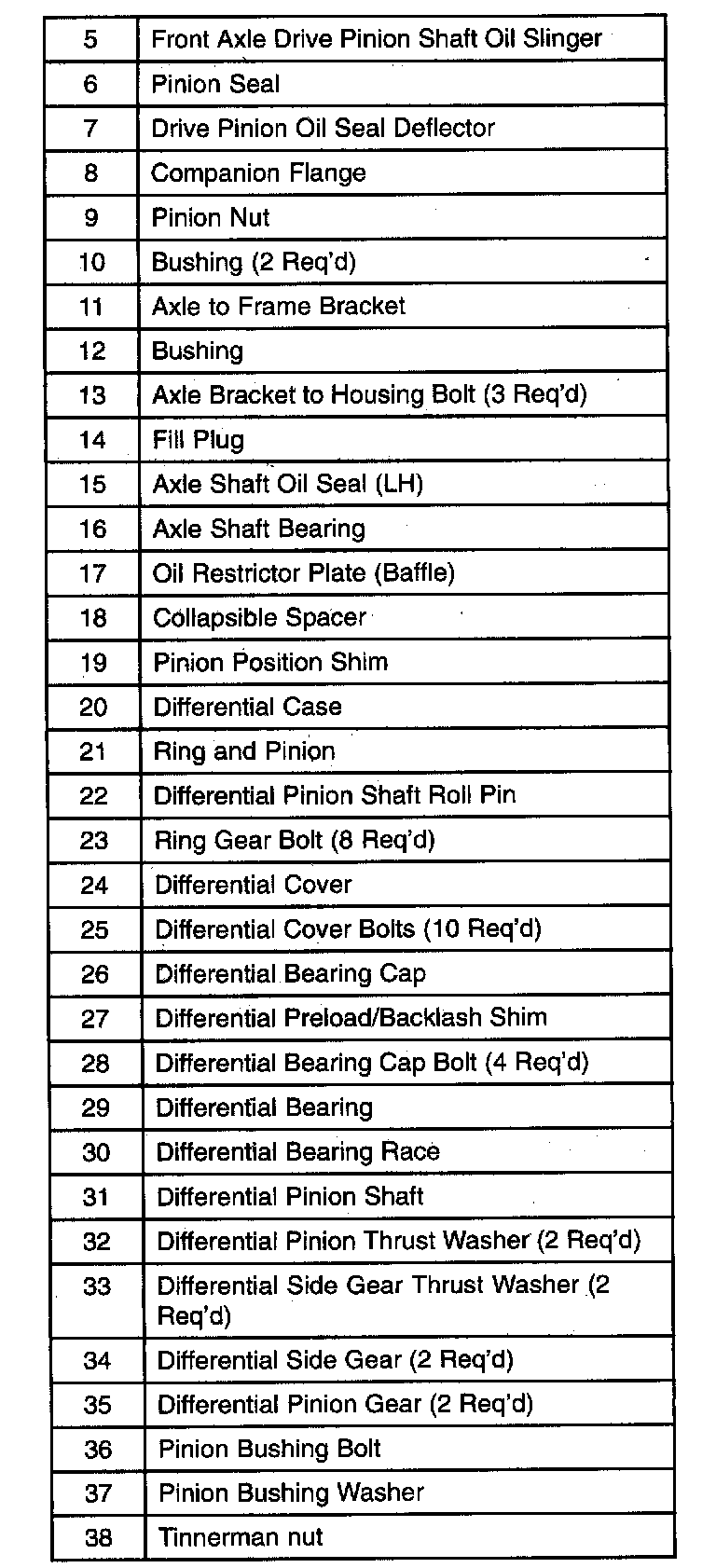

Front Axle
