Keyless Entry Receiver: Service and Repair

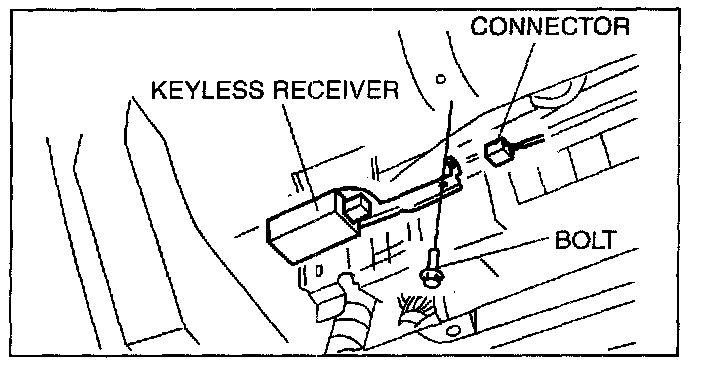

KEYLESS RECEIVER REMOVAL/INSTALLATION




1. Disconnect the negative battery cable.
2. Remove the glove compartment.
3. Disconnect the keyless receiver connector.
4. Remove the bolt, then remove the keyless receiver.
5. Install in the reverse order of removal.
