Keyless Entry System (With Advanced Keyless System)

Diagram 0914-3a:




Connectors 0914-3a:




Routing View 0914-3a:






Diagram 0914-3b:




Connectors 0914-3b:

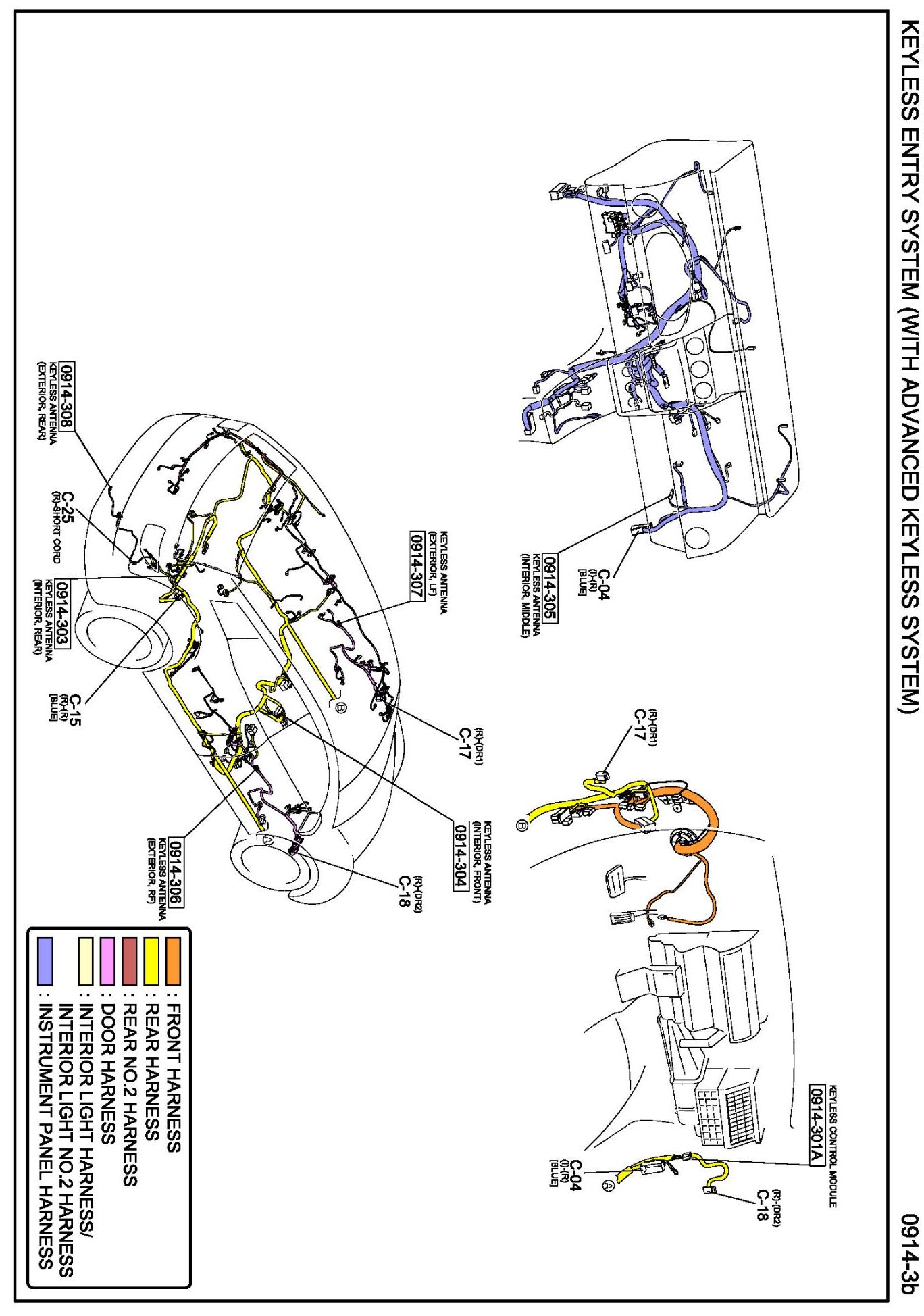

Routing View 0914-3b:






Diagram 0914-3c:

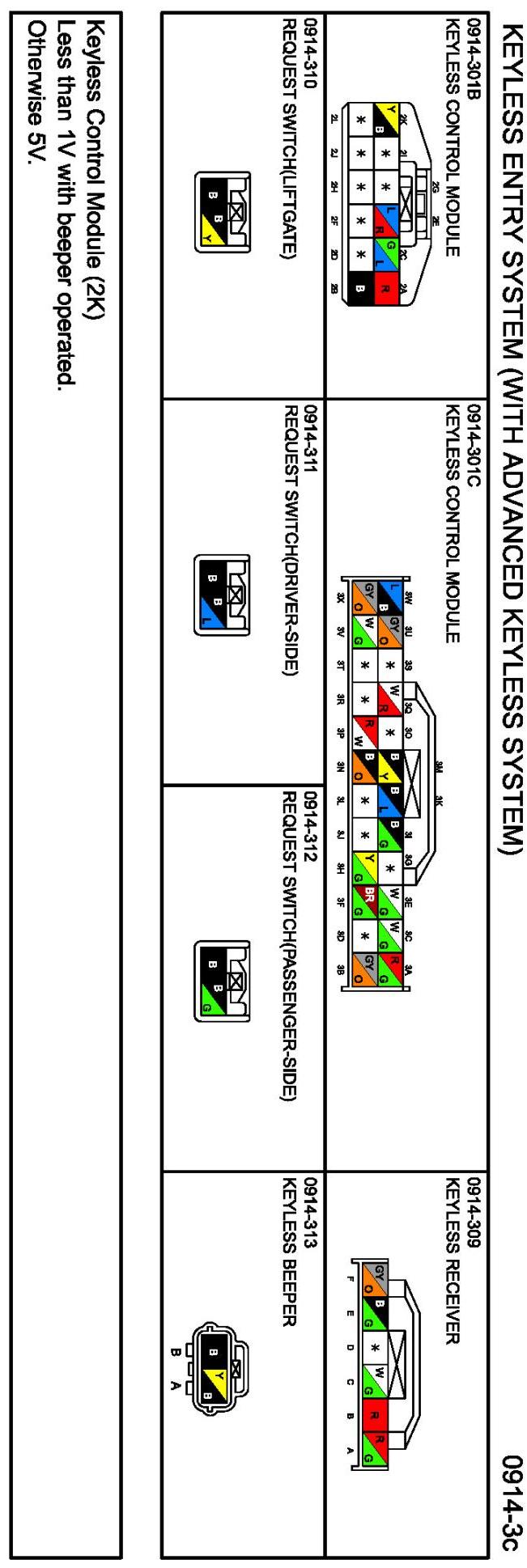

Connectors 0914-3c:




Routing View 0914-3c:






Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by diagram Name. Diagrams By Diagram Name
