Control Module HVAC: Testing and Inspection

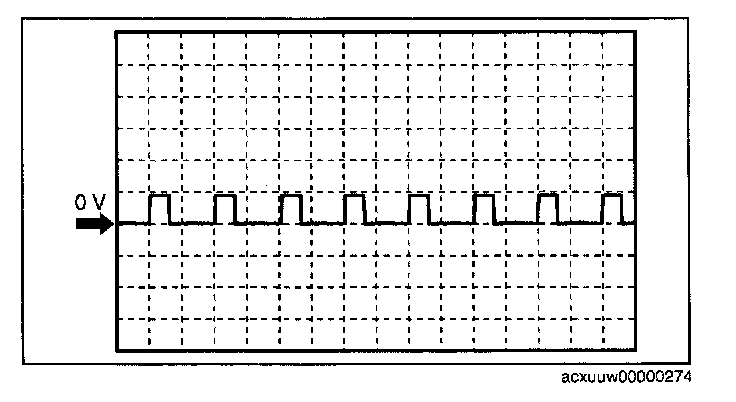

Fan control module (No.1) signal




PCM terminals
- 1AE (+) - body ground (-)

Oscilloscope setting
- 5 V/DIV (Y), 20 ms/DIV (X), DC range

Vehicle condition
- Idle after warm up (no load, P/S off, A/C off)
