Main Relay (Computer/Fuel System): Testing and Inspection

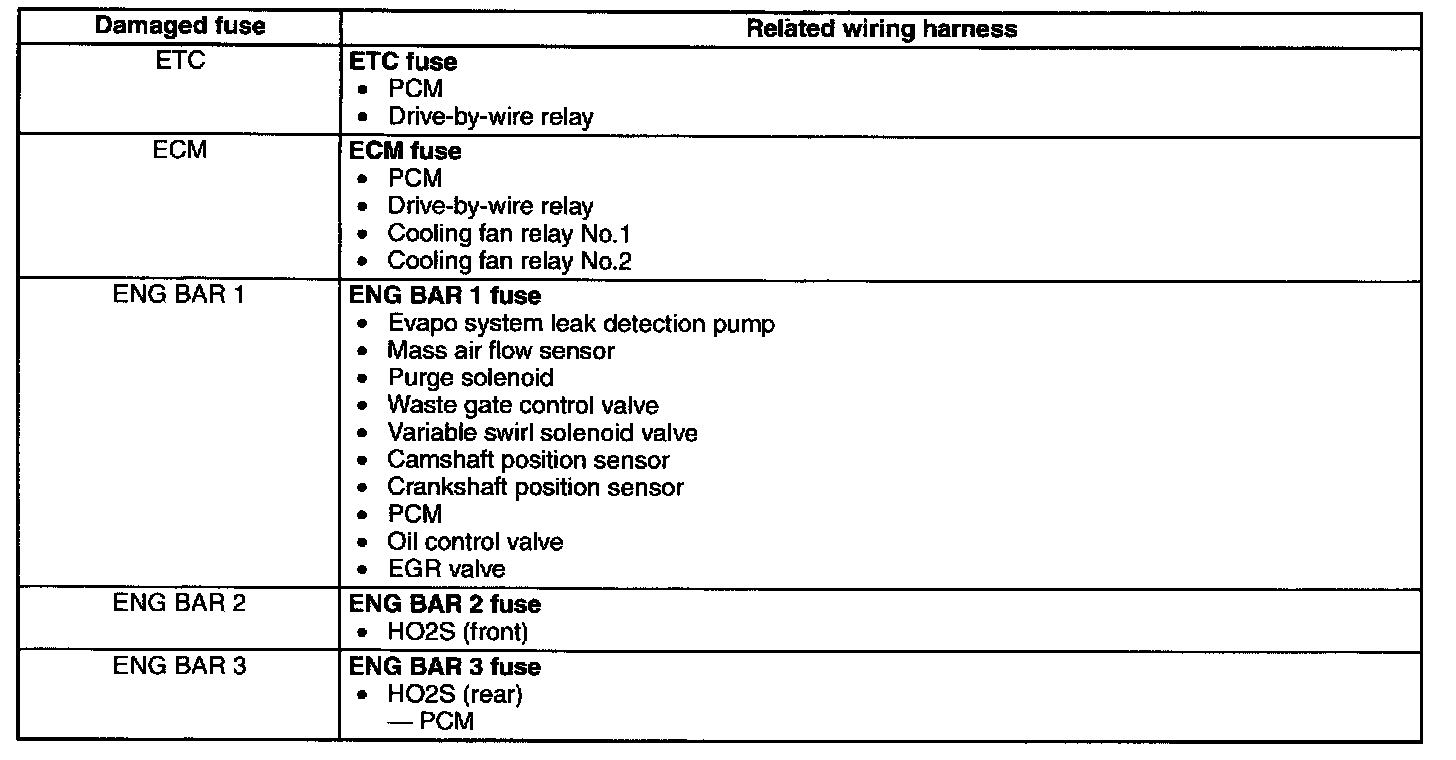

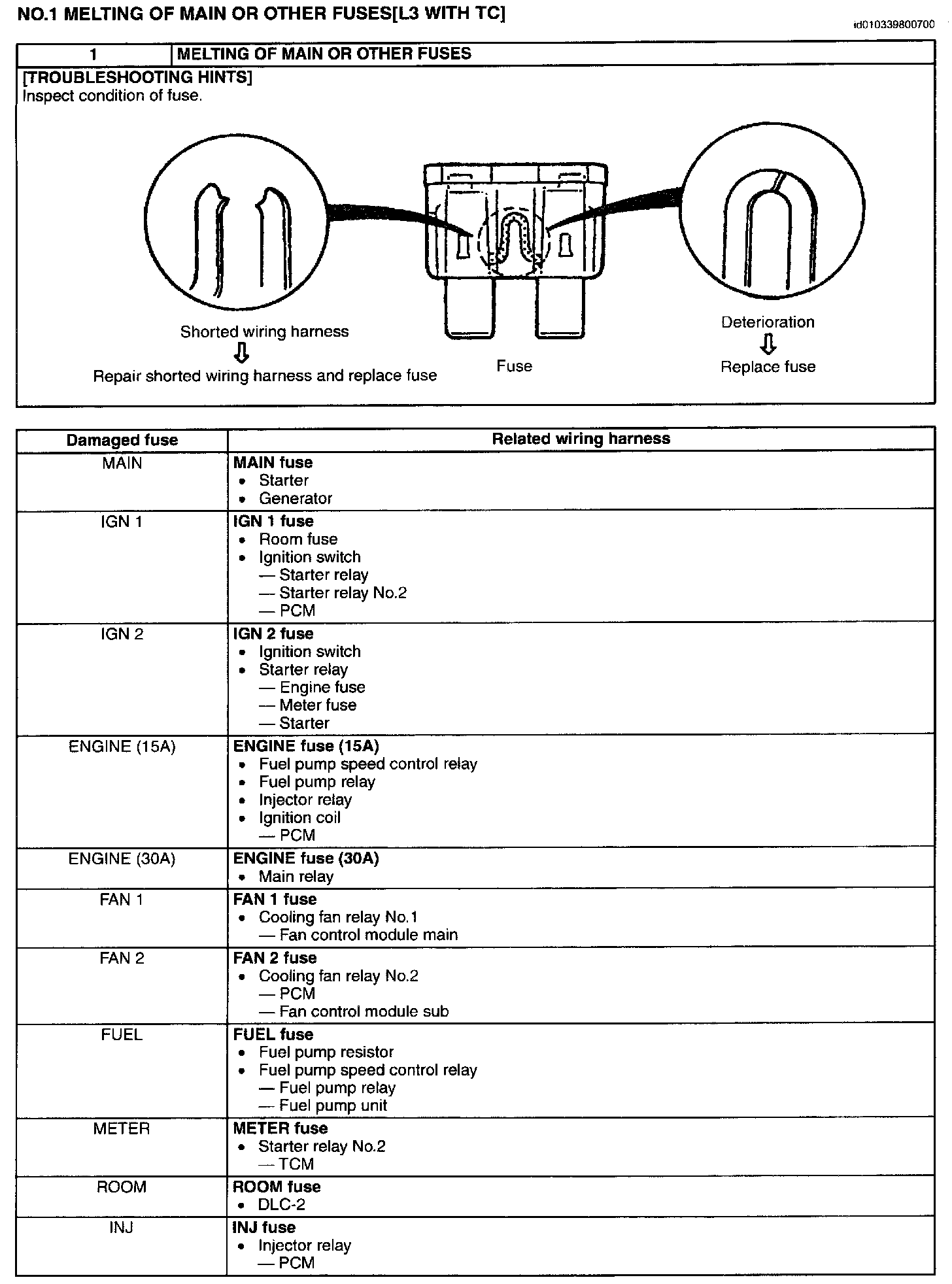

No.1 Melting Of Main Or Other Fuses Part 1:



No.1 Melting Of Main Or Other Fuses Part 2:
