PID/DATA Monitor Table (Reference)

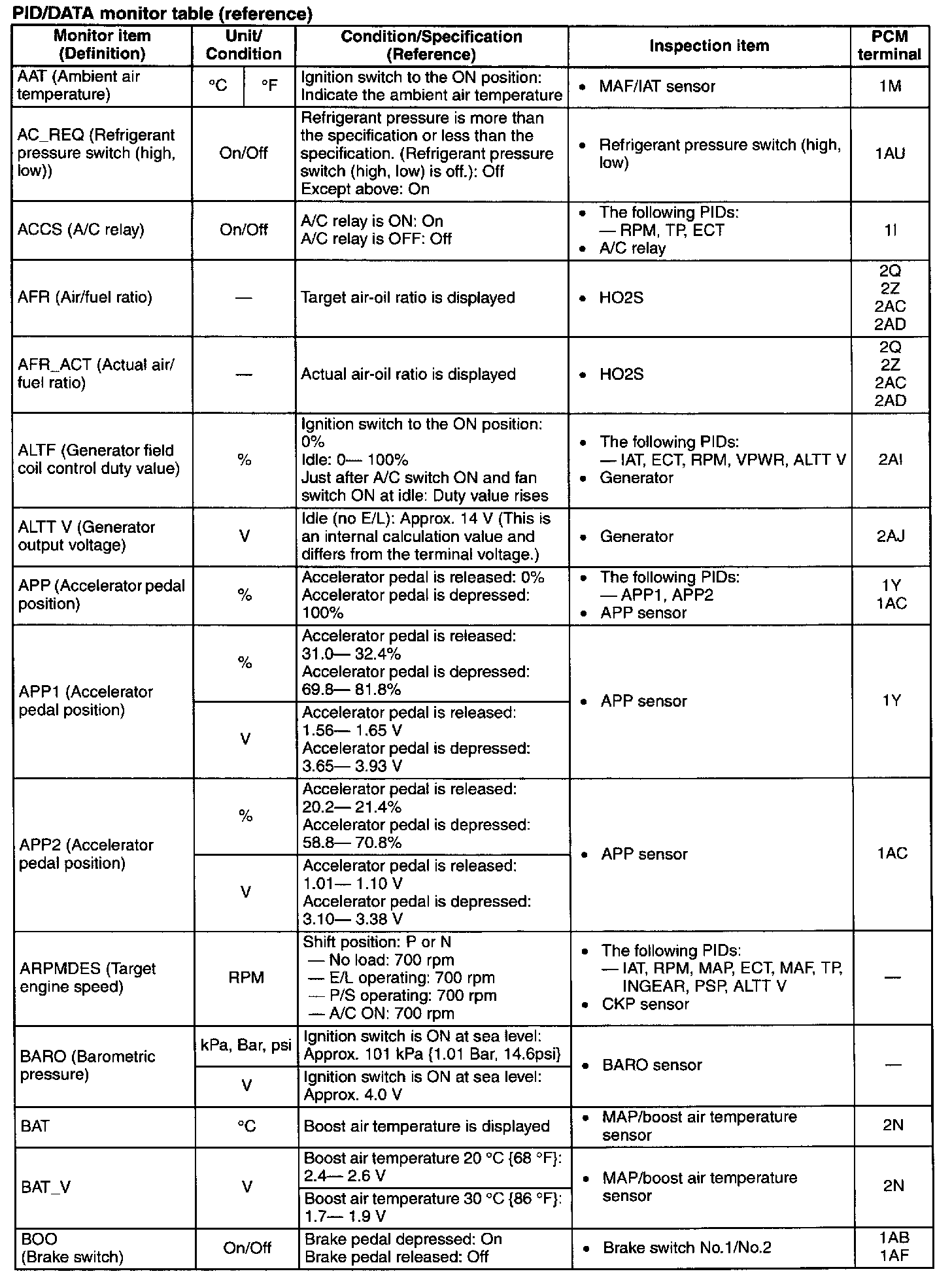

PID/DATA Monitor Table (reference) Part 1:

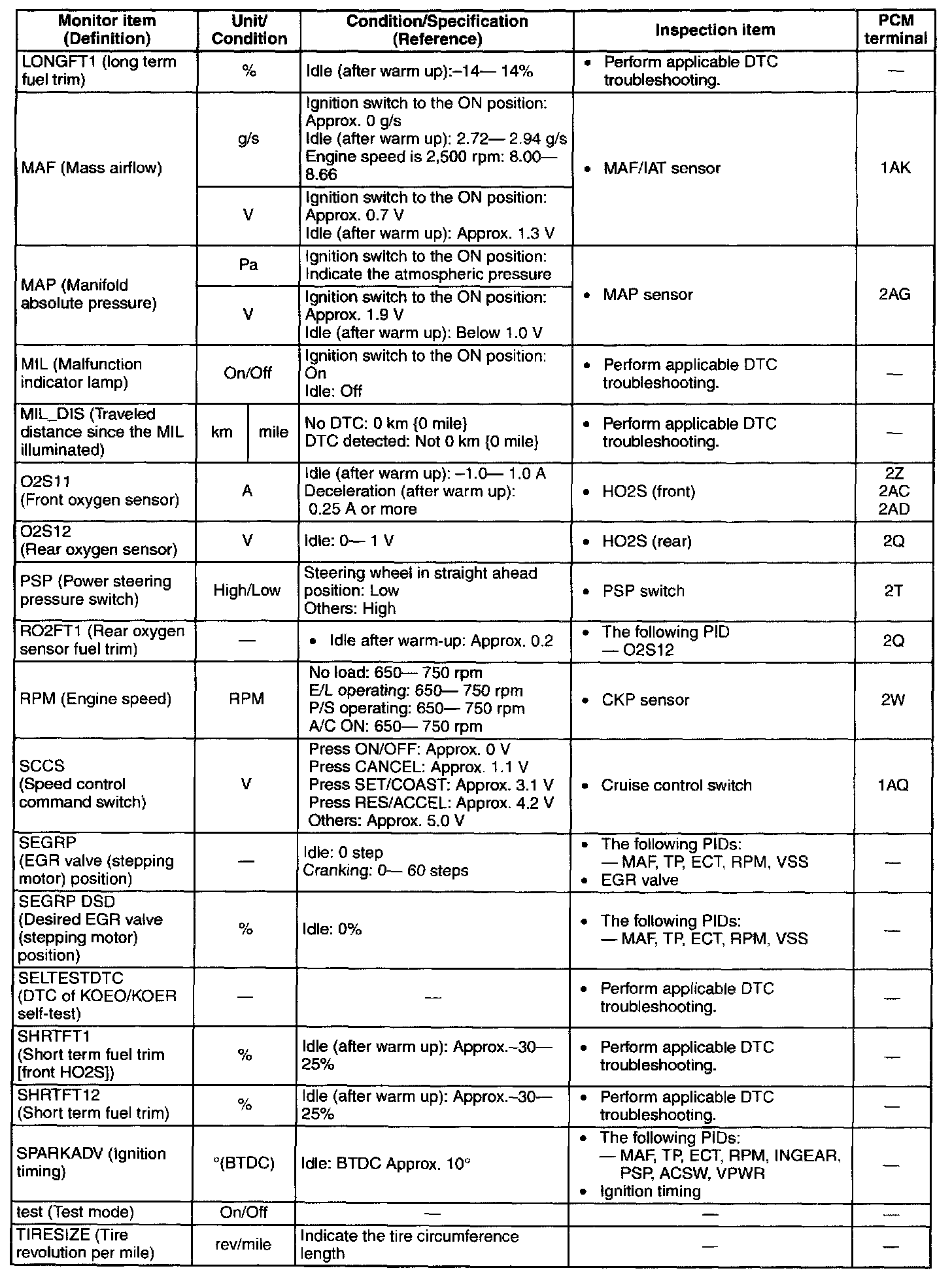

PID/DATA Monitor Table (reference) Part 2:

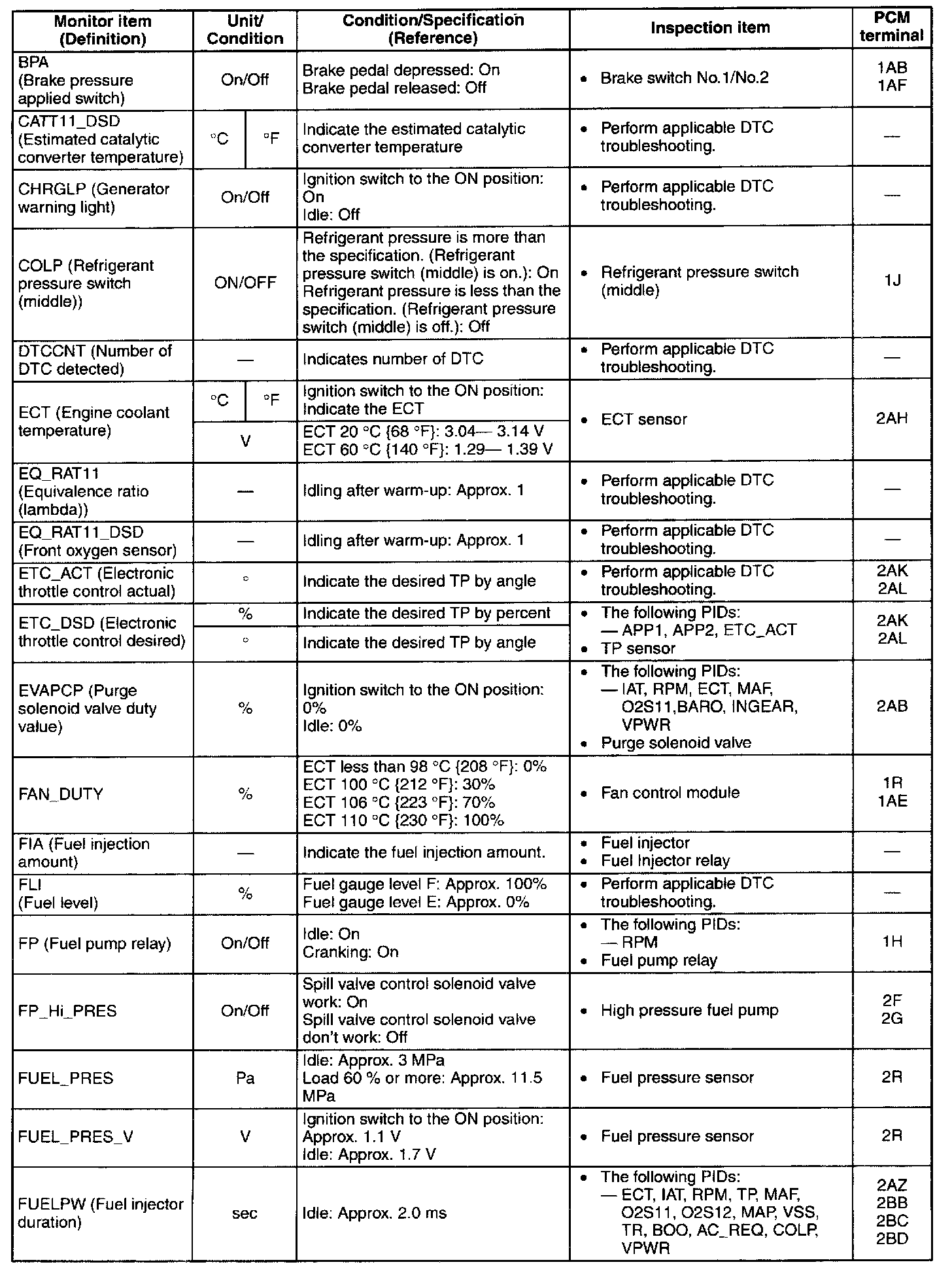

PID/DATA Monitor Table (reference) Part 3:

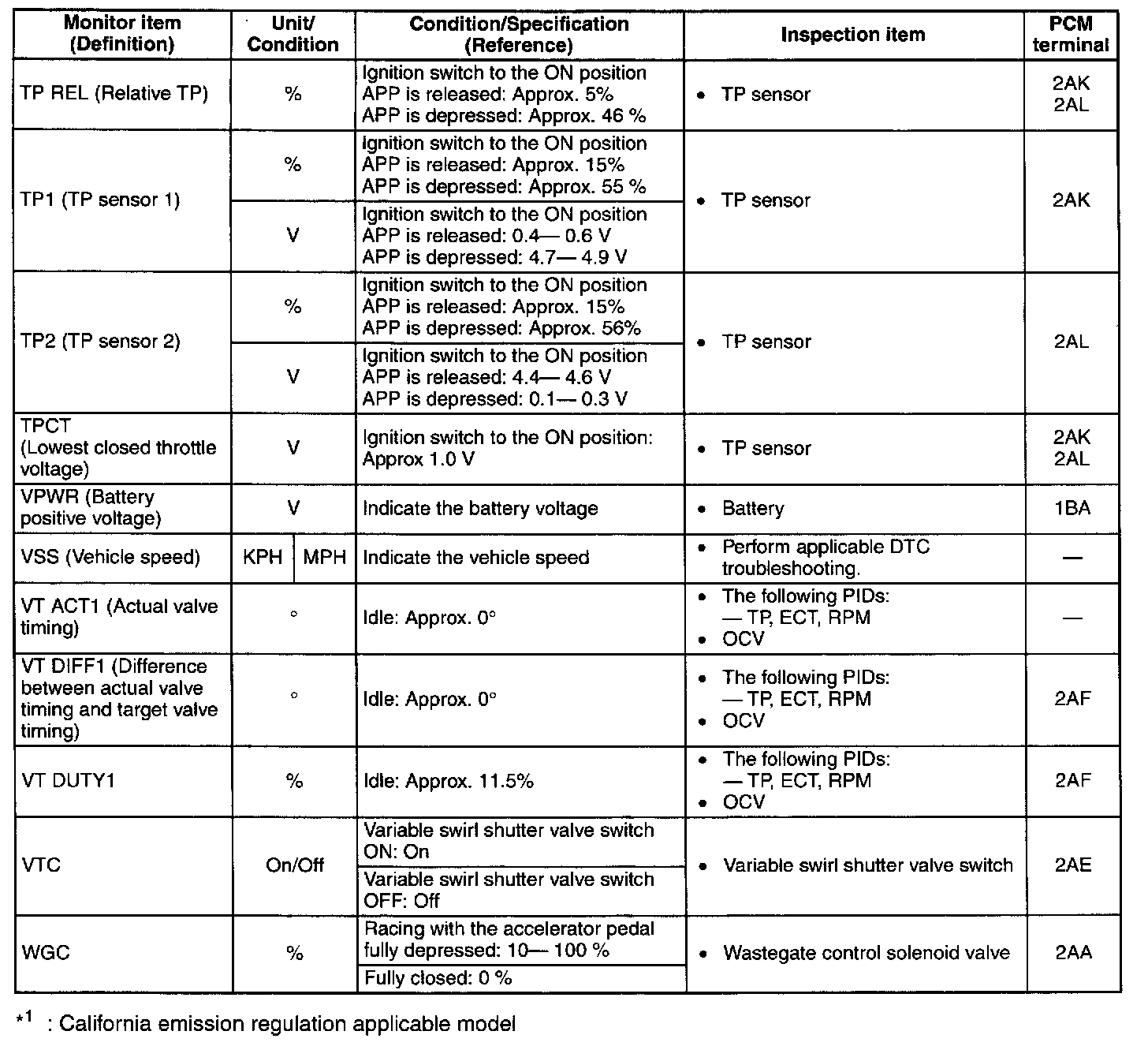

PID/DATA Monitor Table (reference) Part 4:

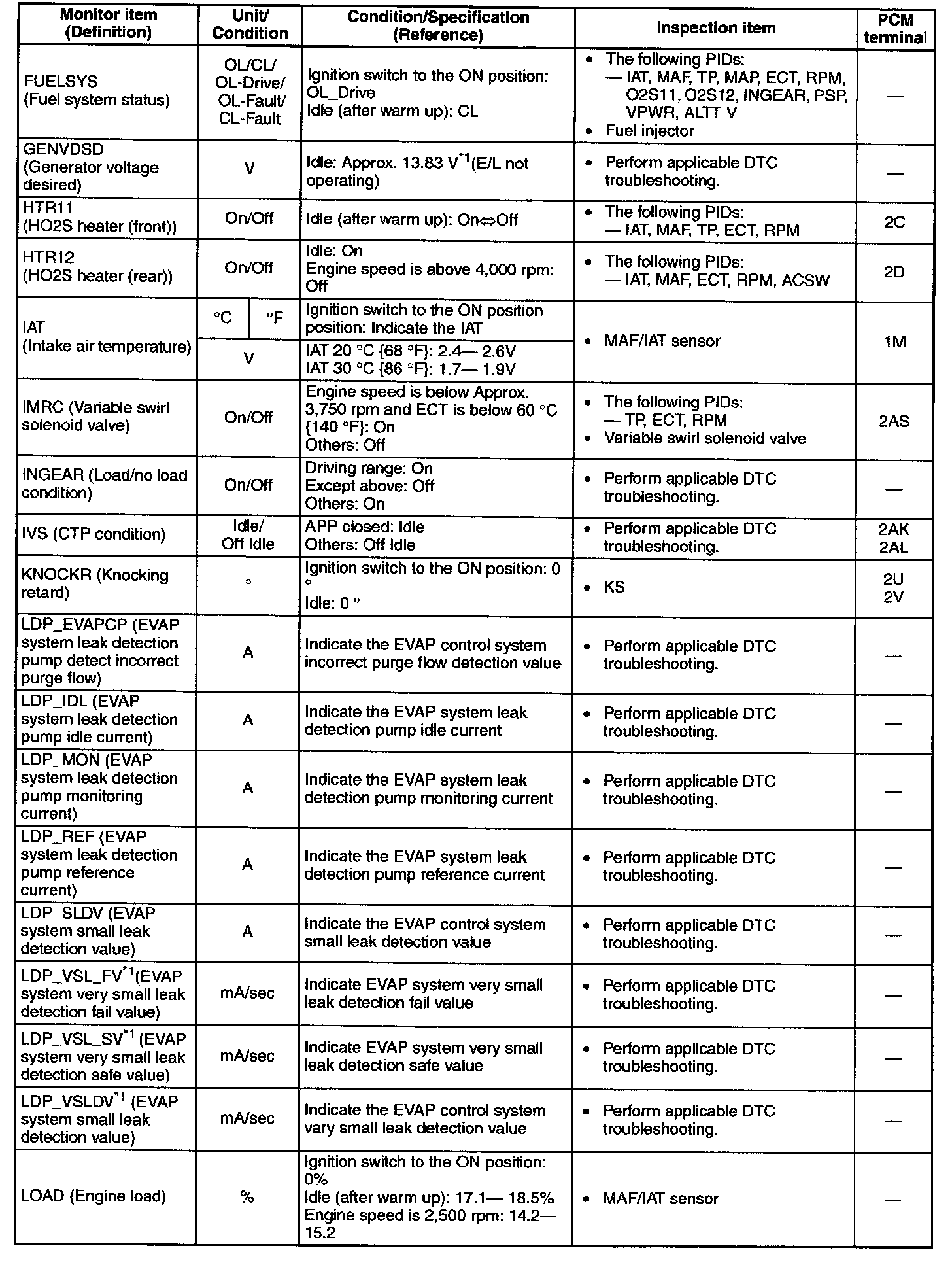

PID/DATA Monitor Table (reference) Part 5:
