Engine Technical Data [L3 With TC]

ENGINE TECHNICAL DATA [L3 WITH TC]

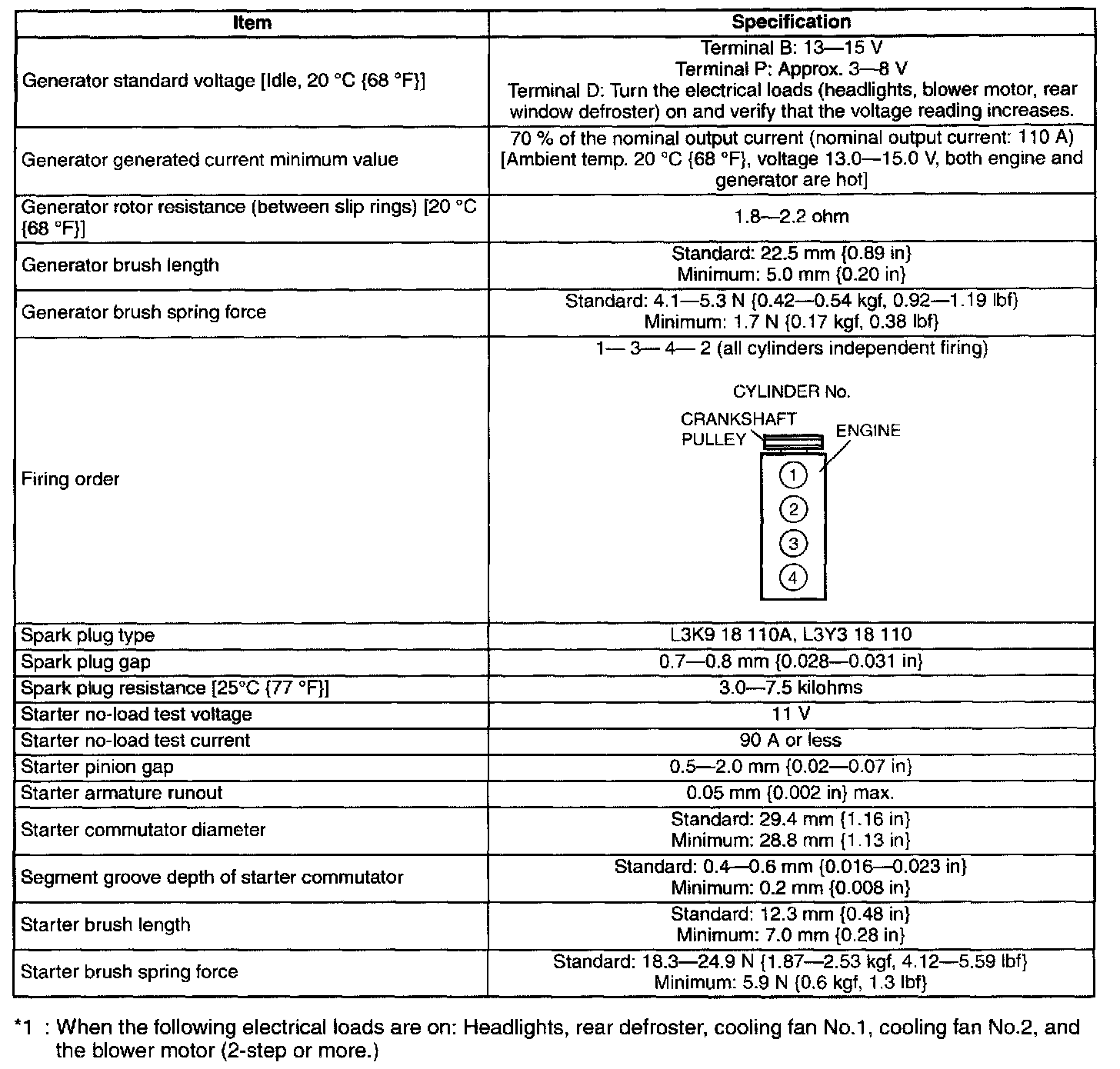

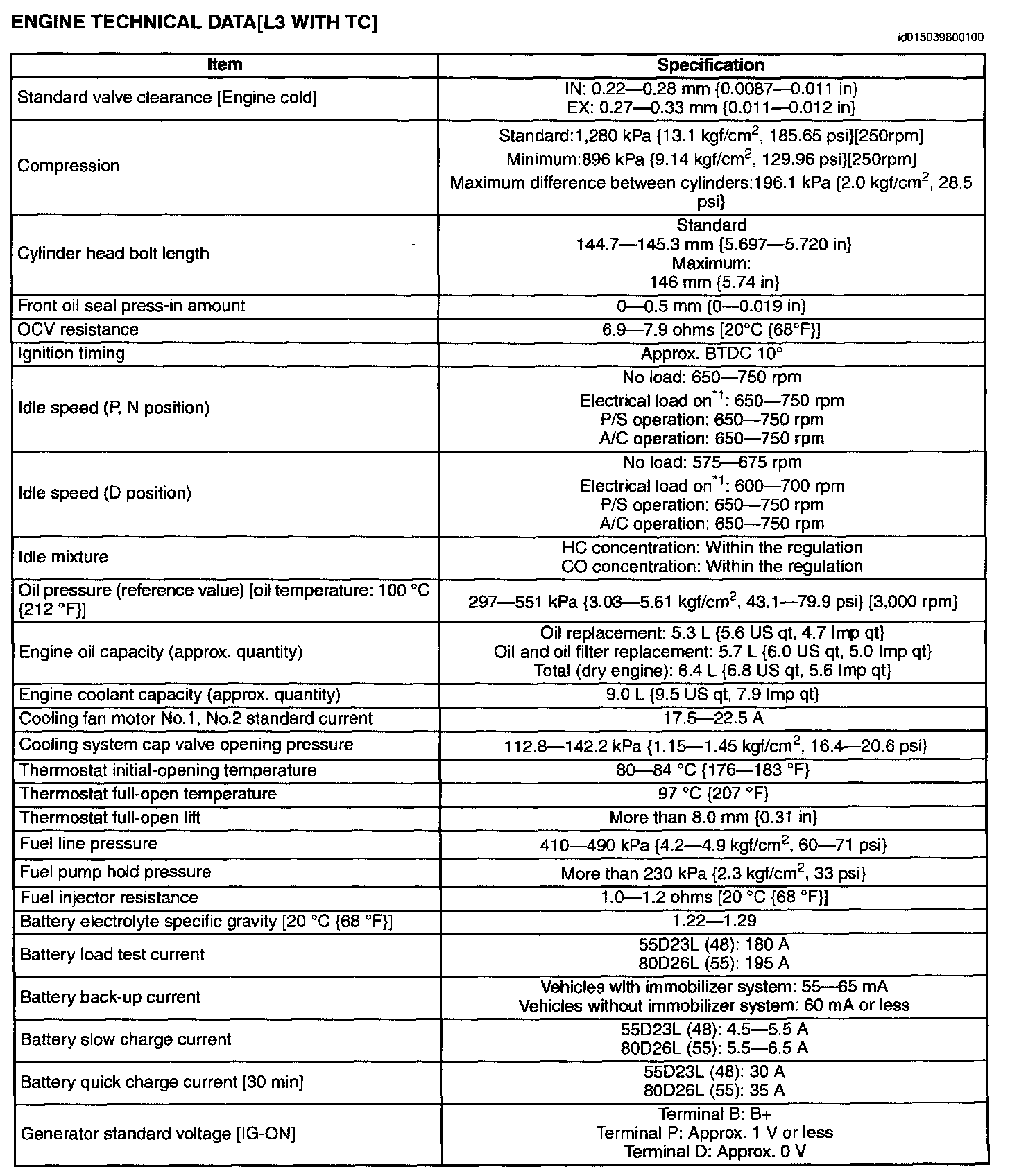

Engine Technical Data (L3 With TC) (part 1):




Engine Technical Data (L3 With TC) (part 2):

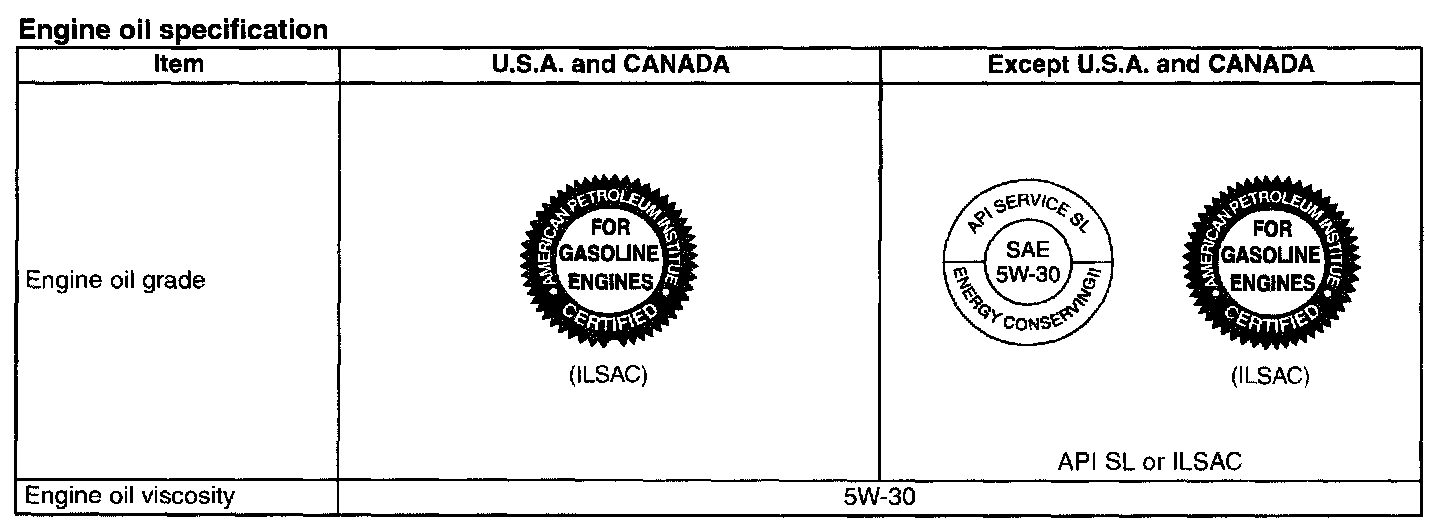

Engine Oil Specification:
