Body Control Module (BCM) Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the front scuff plate inner (LH). (See FRONT SCUFF PLATE REMOVAL/INSTALLATION )
  3. Remove the front side trim (LH). (See FRONT SIDE TRIM REMOVAL/INSTALLATION )
  4. Remove in the order indicated in the illustration.

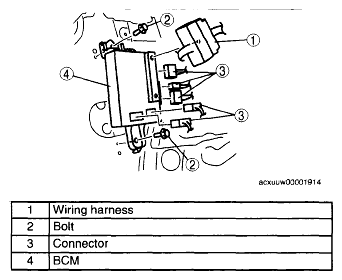

    Fig 1: Identifying Removal Order Of Body Control Module Components
    G04861510Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
