Steering Angle Sensor Inspection

  1. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION ).
  2. Turn the steering wheel to the right and left, and verify that the voltage and pulses at the terminals are as shown in the figure.
    • If not as specified, replace the steering angle sensor.

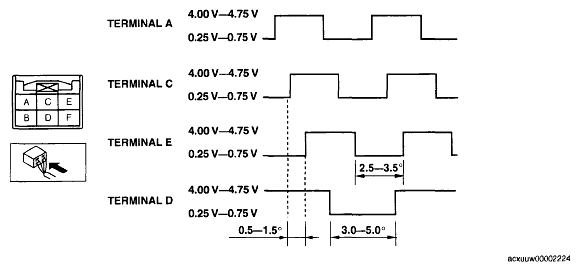

      Fig 1: Identifying Steering Angle Sensor Voltage Pulse Pattern
      G04861512Courtesy of MAZDA MOTORS CORP.
