Circuit Open/Short Inspection: Notes

Fig 1: Identifying Variable Swirl Shutter Valve Switch Connectors
G04859794Courtesy of MAZDA MOTORS CORP.

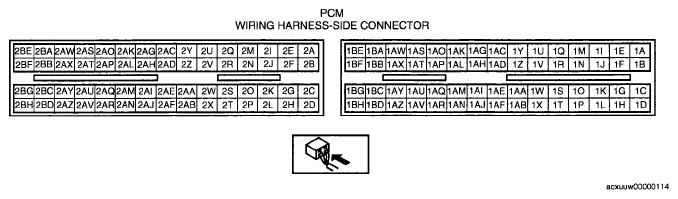

Fig 2: PCM Connector Terminal Identification
G04859793Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION .)
  2. Inspect the following harnesses for an open or short circuit. (Continuity check)
