Clearance Inspection

Verify the clearance between the ABS sensor rotor and the ABS wheel-speed sensor.
- If there is any malfunction, check for improper installation, and replace if necessary.
Clearance
- 0.7-1.5 mm {0.028-0.059 in}

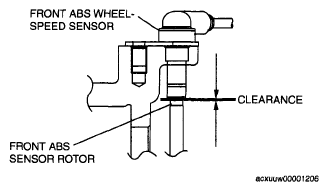

  Fig 1: Identifying Clearance Between ABS Sensor Rotor And ABS Wheel-Speed Sensor
  Courtesy of MAZDA MOTORS CORP.
