Rear Abs Wheel-Speed Sensor Removal/Installation[AWD]

  1. Remove the rear seat. (See REAR SEAT REMOVAL/INSTALLATION ).
  2. Rear scuff plate inner. (See REAR SCUFF PLATE REMOVAL/INSTALLATION ).
  3. Remove the sub trunk box. (See SUB TRUNK BOX REMOVAL/INSTALLATION ).
  4. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION ).
  5. Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION ).
  6. Remove in the order indicated in the figure.
  7. Install in the reverse order of removal.

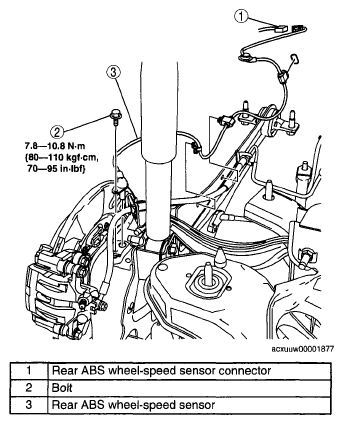

    Fig 1: Rear ABS Wheel-Speed Sensor Replacement Components With Torque Specifications
    G04860269Courtesy of MAZDA MOTORS CORP.
