TCS Off Switch Inspection

Remove the TCS OFF switch. (See TCS OFF SWITCH REMOVAL/INSTALLATION .)
Verify that the continuity is as indicated in the figure.
- If not as indicated in the figure, replace the TCS OFF switch.

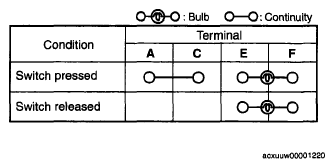

  Fig 1: Continuity Reference Table
  Courtesy of MAZDA MOTORS CORP.

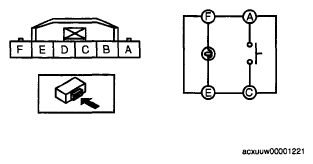

  Fig 2: Identifying TCS Off Switch Connector Terminals
  Courtesy of MAZDA MOTORS CORP.
