TCS Off Switch Removal/Installation: Notes

  1. Remove in the order indicated in the figure.
  2. Install in the reverse order of removal.

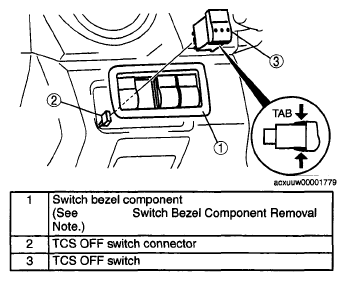

    Fig 1: Identifying TCS OFF Switch Connector And TCS OFF Switch
    G04860281Courtesy of MAZDA MOTORS CORP.
