Circuit Open/Short Inspection: Notes

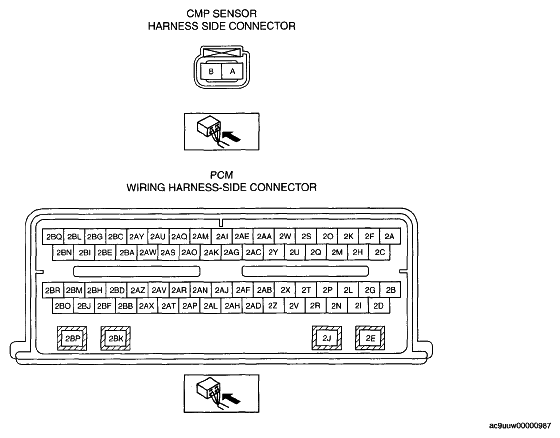

Fig 1: Identifying CMP Sensor & PCM Related Connector Terminals
G04969700Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION .)
  2. Inspect the following harness for open or short circuit. (Continuity check)
