Circuit Open/Short Inspection: Notes

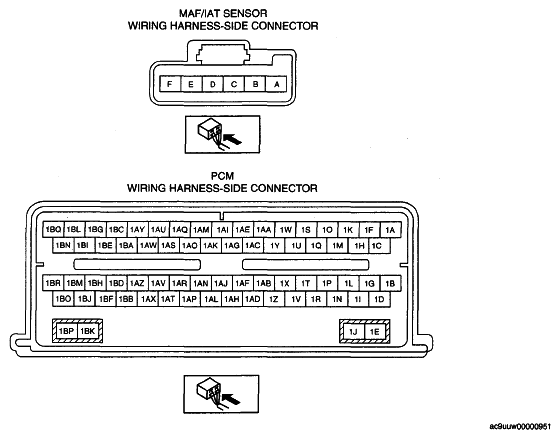

Fig 1: Identifying MAF/IAT Sensor & PCM Related Connector Terminals
G04969690Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION .)
  2. Inspect the following wiring harnesses for open or short. (Continuity inspection)
