Rear

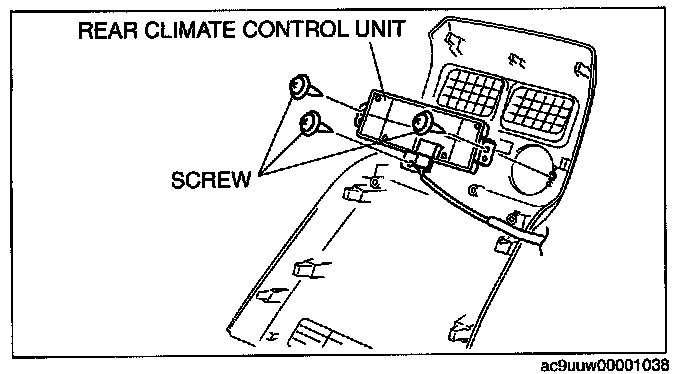

REAR CLIMATE CONTROL UNIT REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the console cover.
3. Remove the rear cooler duct.
4. Remove the screws.




5. Remove the rear climate control unit.
6. Install in the reverse order of removal.
