Pinout Values and Diagnostic Parameters

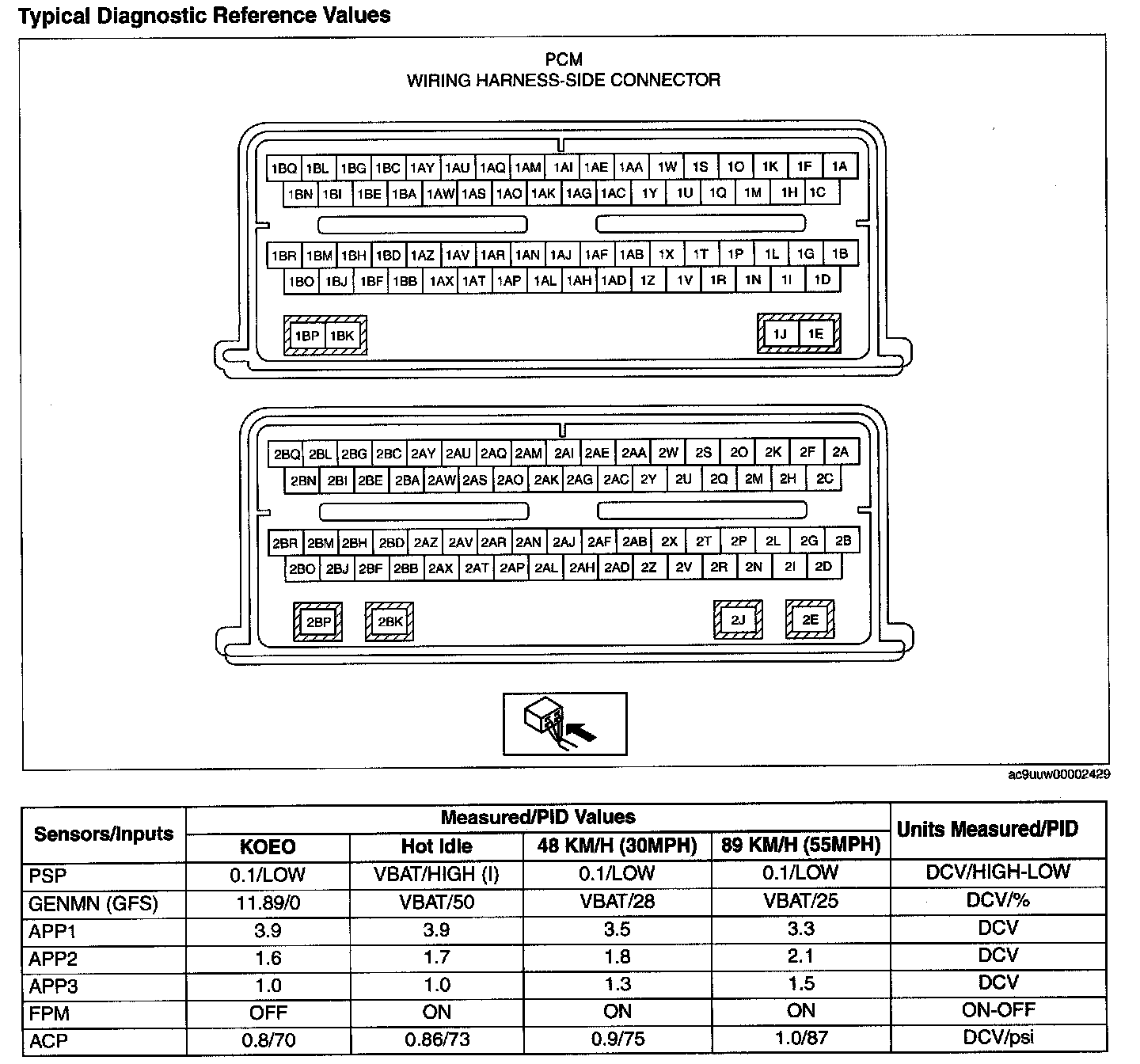

Typical Diagnostic Reference Values Part 1:

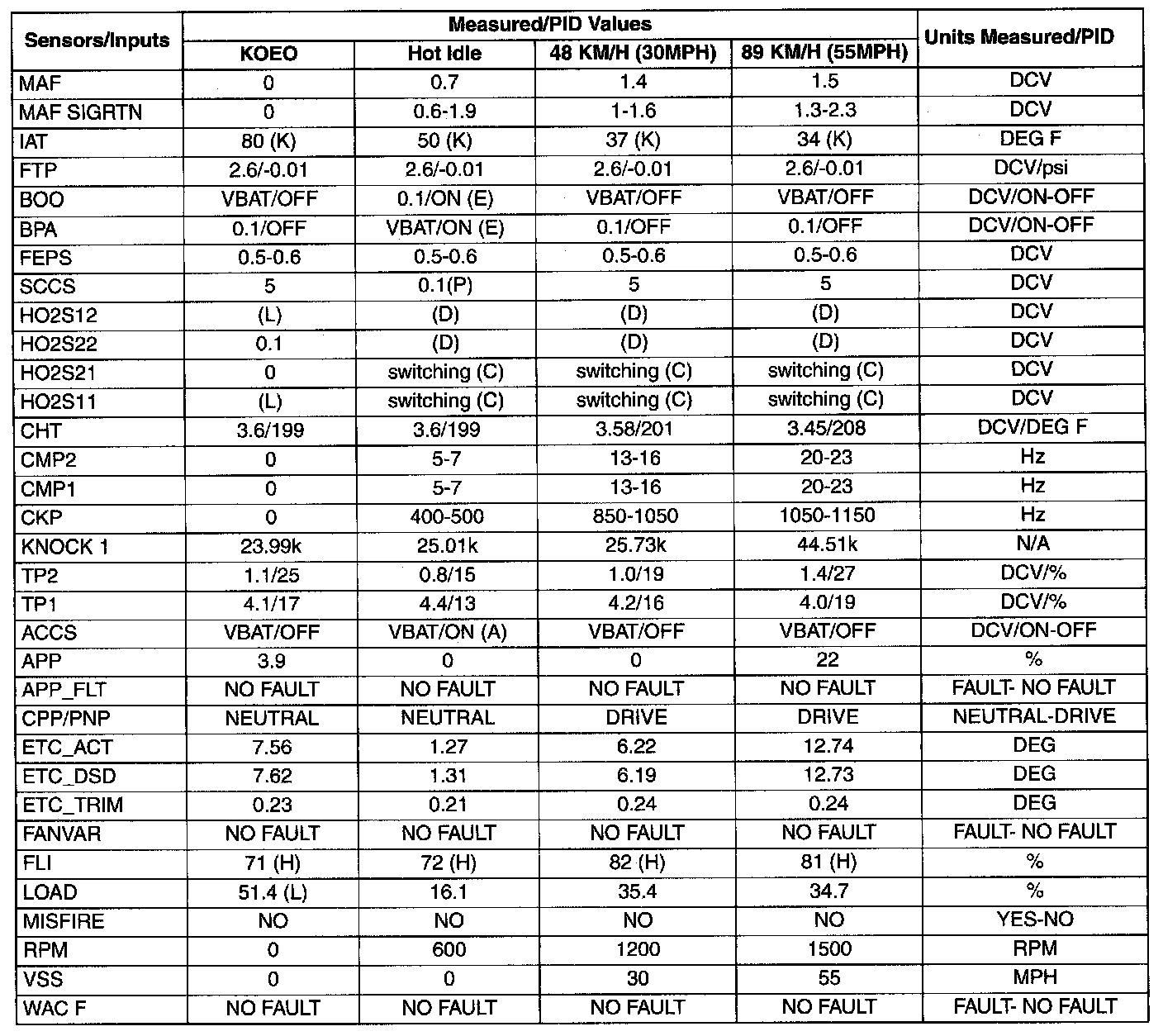

Typical Diagnostic Reference Values Part 2:

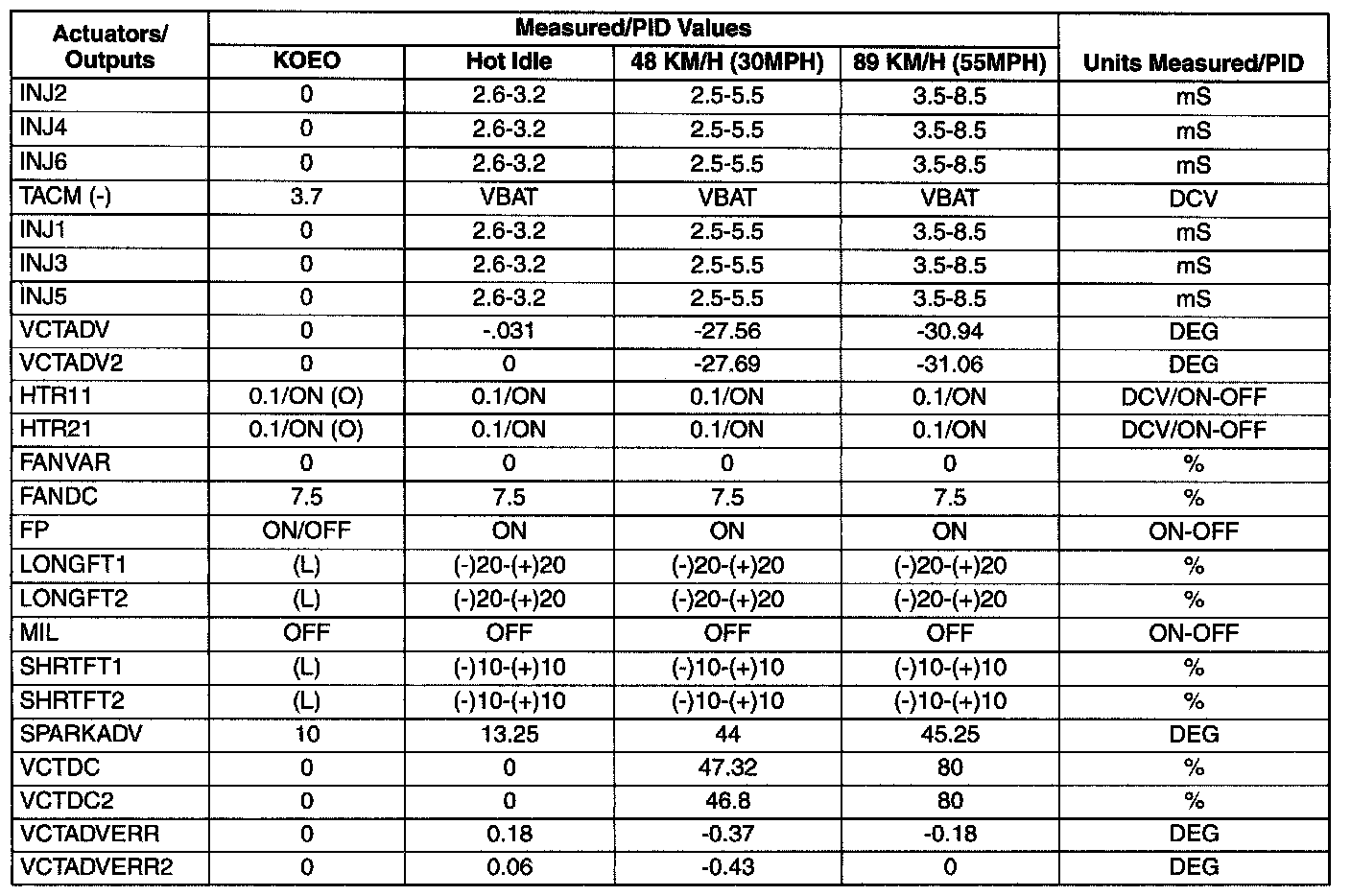

Typical Diagnostic Reference Values Part 3:

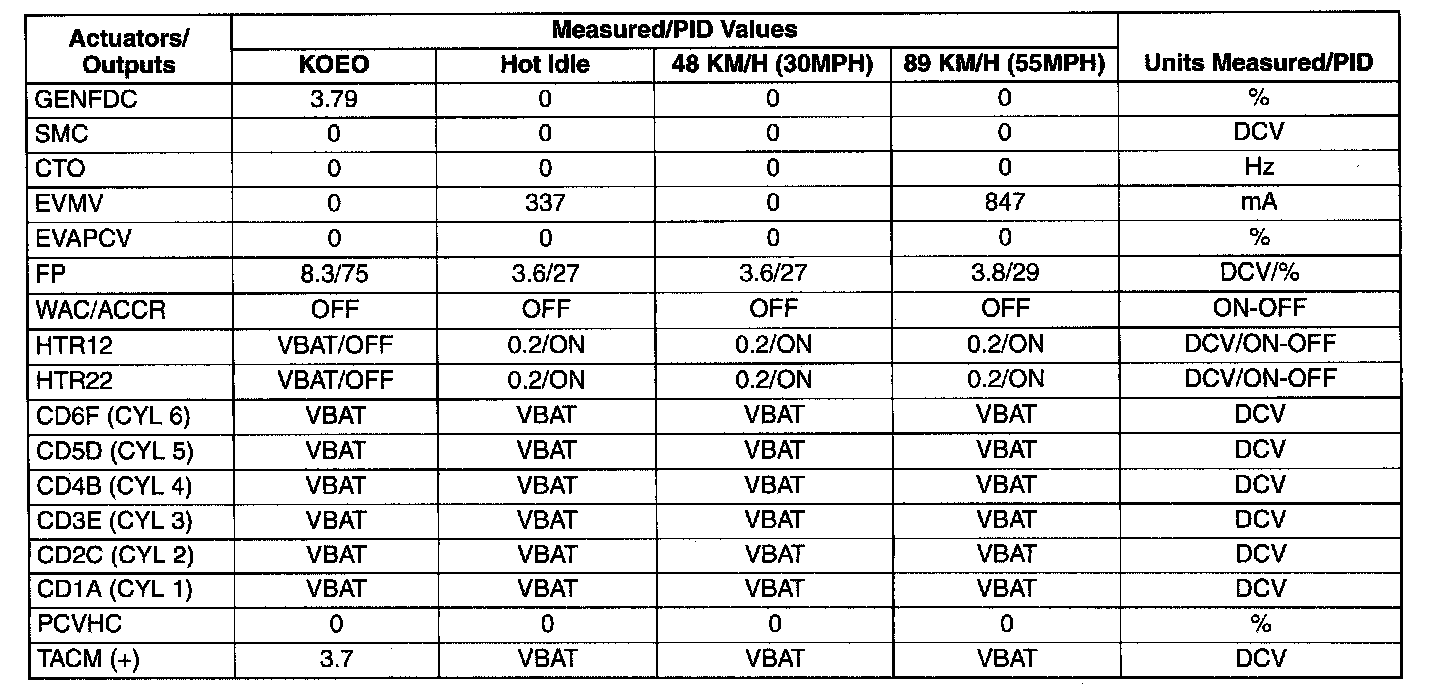

Typical Diagnostic Reference Values Part 4:

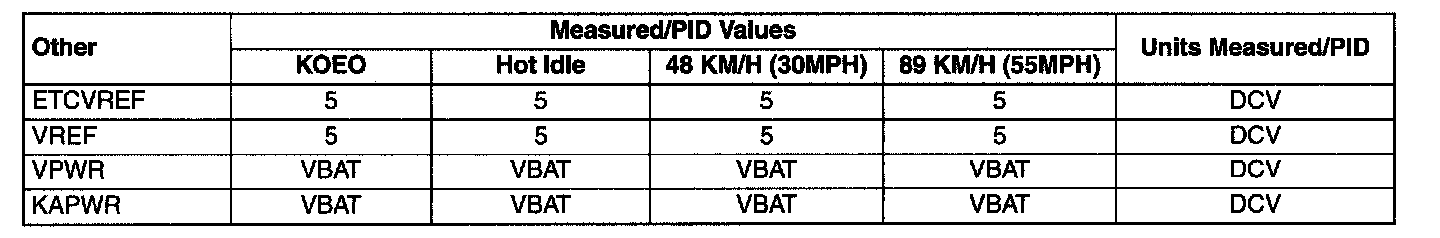

Typical Diagnostic Reference Values Part 5:
