Transmission Position Sensor/Switch: Locations

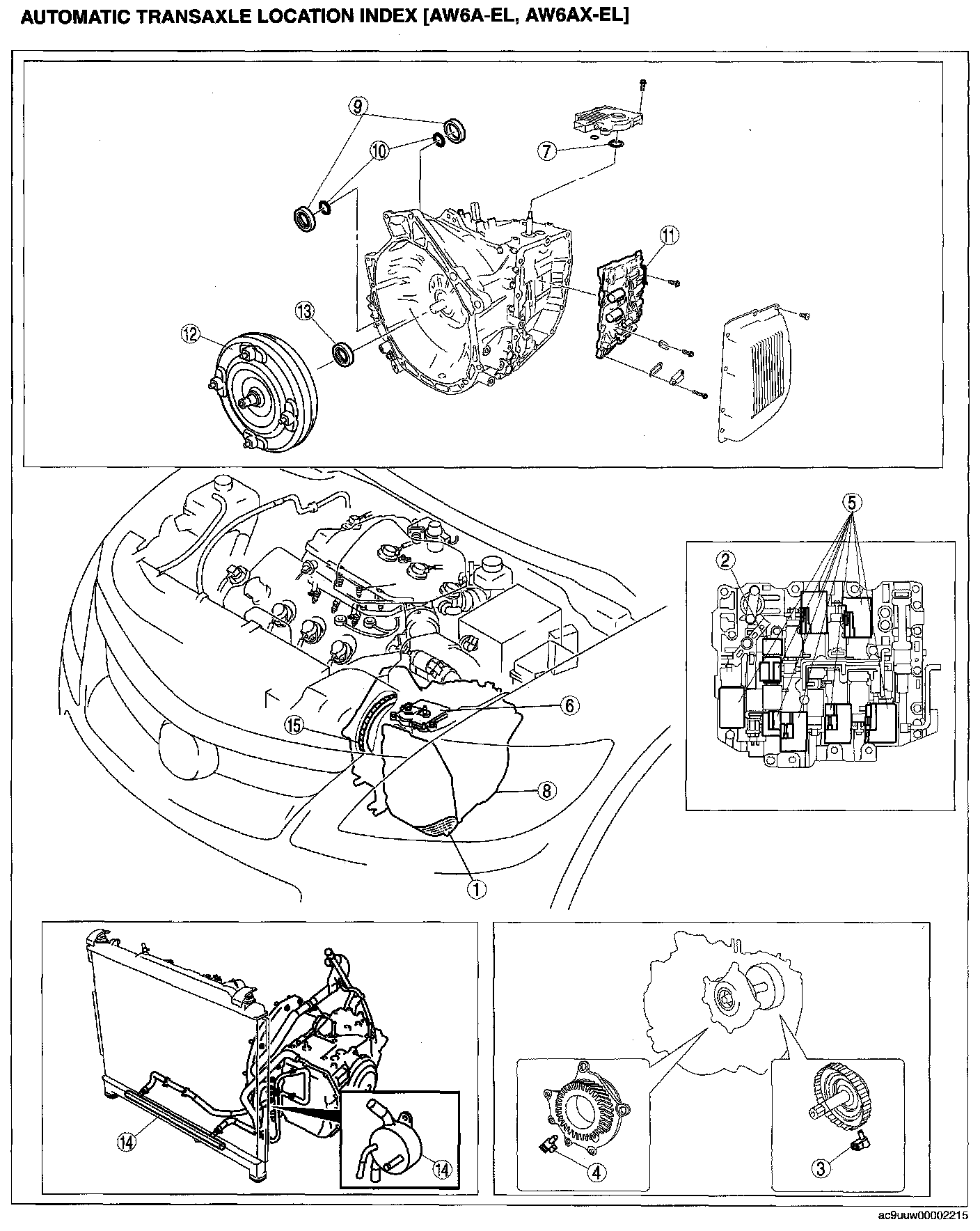

AUTOMATIC TRANSAXLE LOCATION INDEX (AW6A-EL, AW6AX-EL) (Part 1):

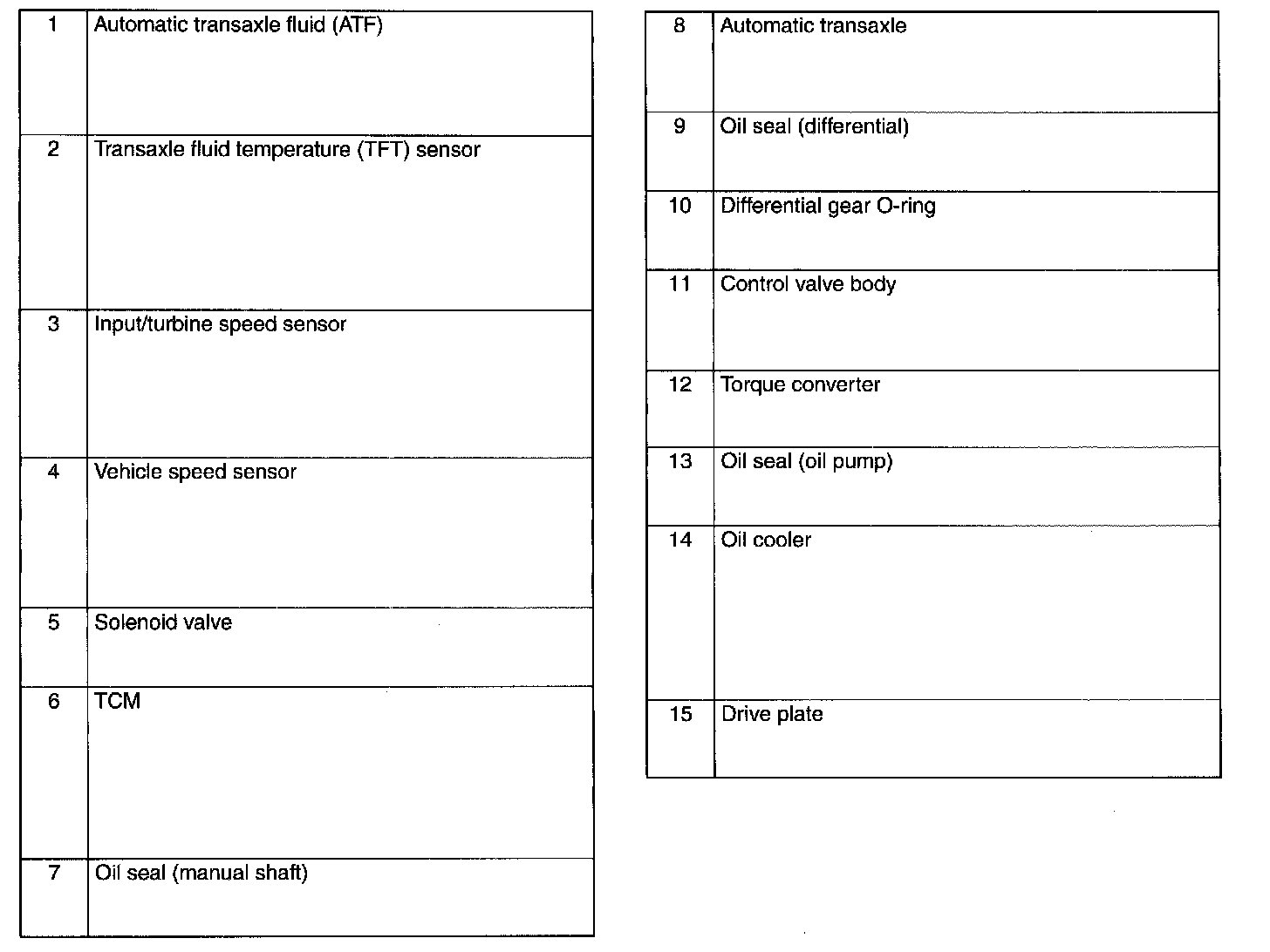

AUTOMATIC TRANSAXLE LOCATION INDEX (AW6A-EL, AW6AX-EL) (Part 2):
