Disassembly Procedure

Disassembly Procedure

Caution: Do not pull the manual valve strongly.





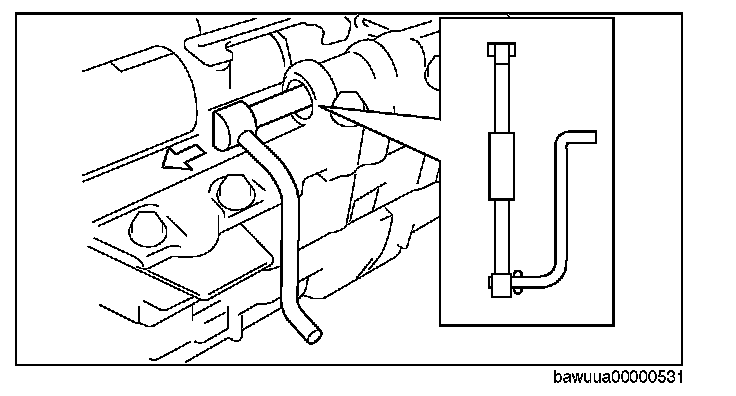

1. Remove the manual valve from the control valve body.

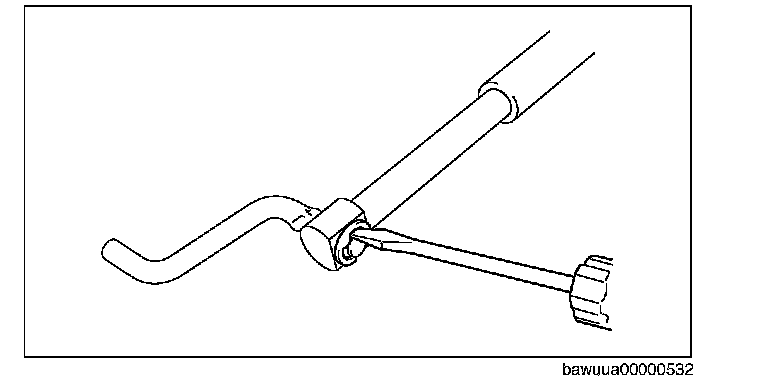

2. Using a flathead screwdriver, remove the E-ring.
3. Remove the manual valve connecting rod from the manual valve.

Caution: Do not damage the solenoid.

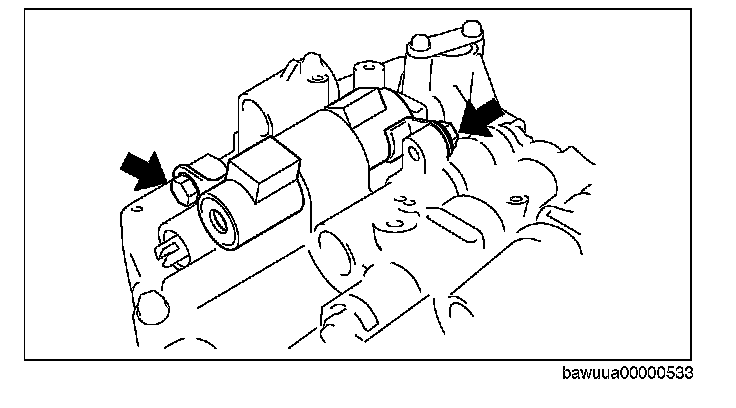

4. Remove the solenoids from the control valve body.
