Component Locations

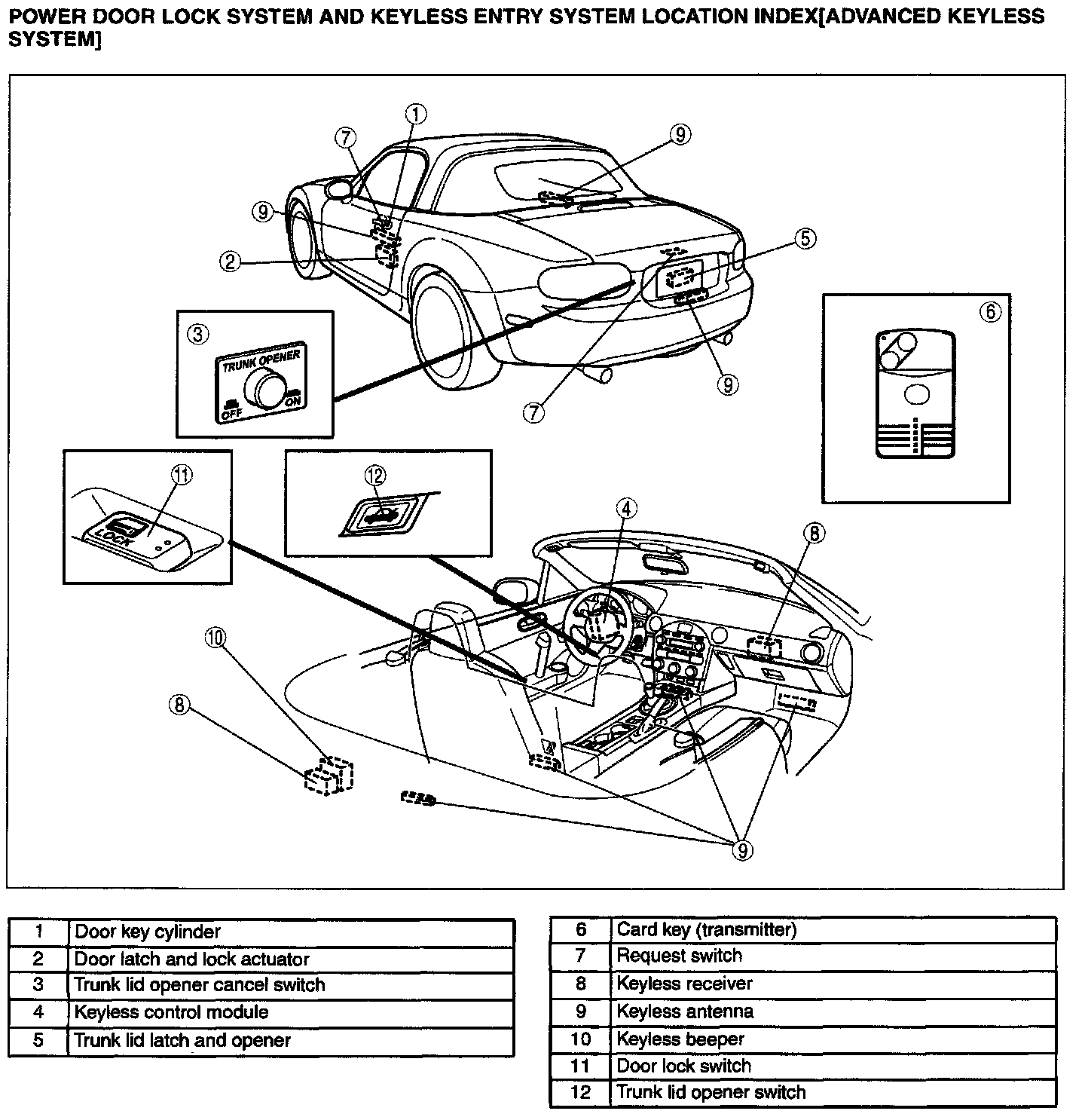

Power Door Lock System And Keyless Entry System Location Index (Advanced Keyless System):

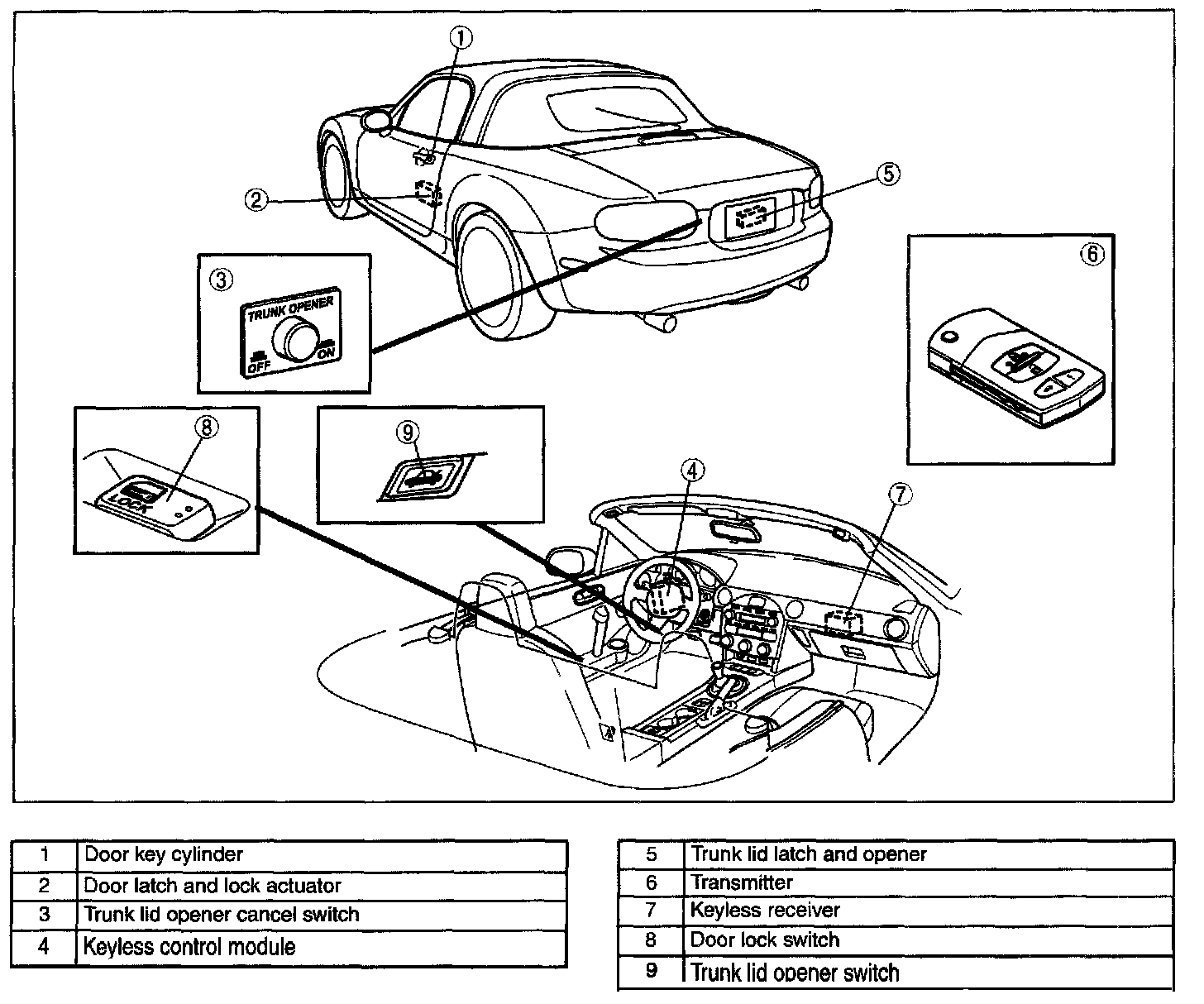

Power Door Lock System And Keyless Entry System Location Index(Keyless Entry System):
