Cruise Control Switch: Testing and Inspection

CRUISE CONTROL SWITCH INSPECTION[L3 WITH TC]
1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Remove the driver-side air bag module.
4. Disconnect the audio control switch connector.

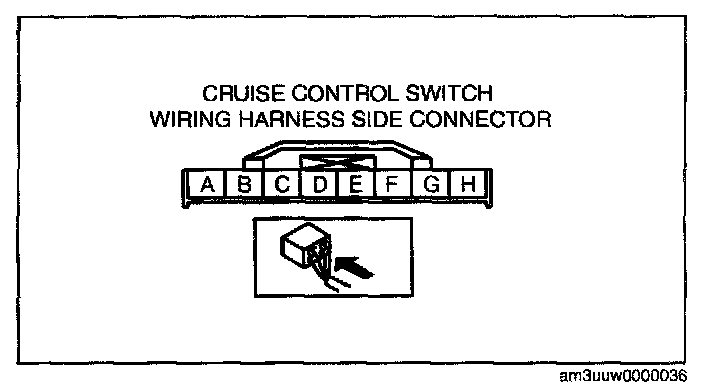

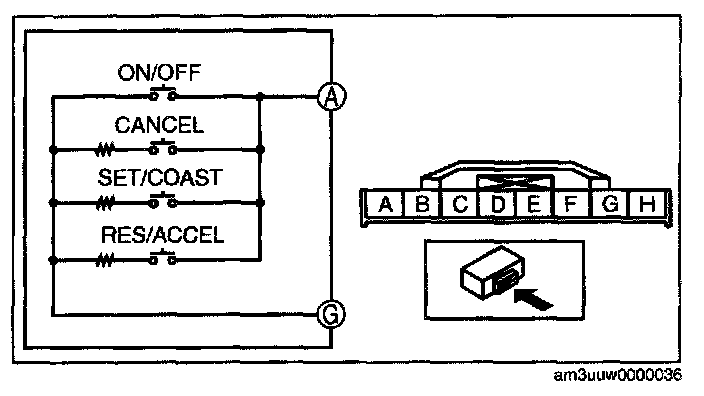

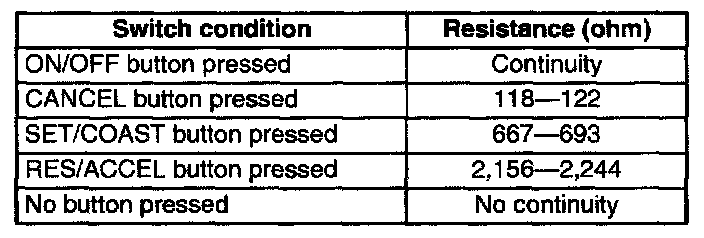

5. Inspect for resistance and continuity between cruise control switch terminals A-G using a tester.
- If not as specified, replace the cruise control switch.







Circuit Open/Short Inspection
1. Disconnect the PCM connector.
2. Disconnect the cruise control switch connector.
3. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)

Open circuit
- If there is no continuity in the following wiring harnesses, there is an open circuit. Repair or replace the wiring harness.

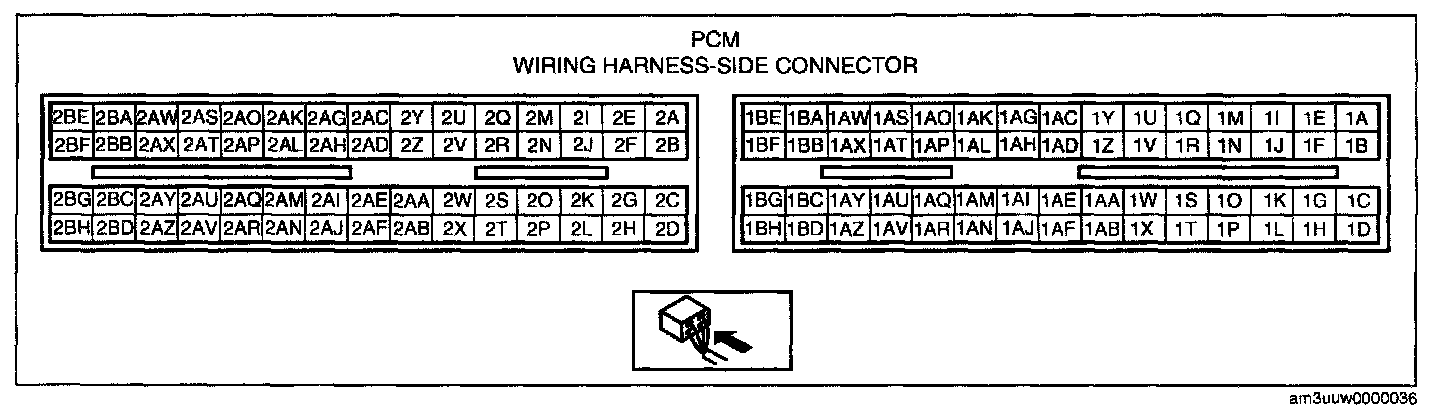

- Cruise control switch terminal A and PCM terminal 1AQ*1, 1AD*2
- Cruise control switch terminal G and body ground

Short circuit
- If there is continuity in the following wiring harnesses, there is a short circuit. Repair or replace the wiring harness.
- Cruise control switch terminal A and body ground
- Cruise control switch terminal G and power supply
