Coolant Temperature Sensor/Switch (For Computer): Locations

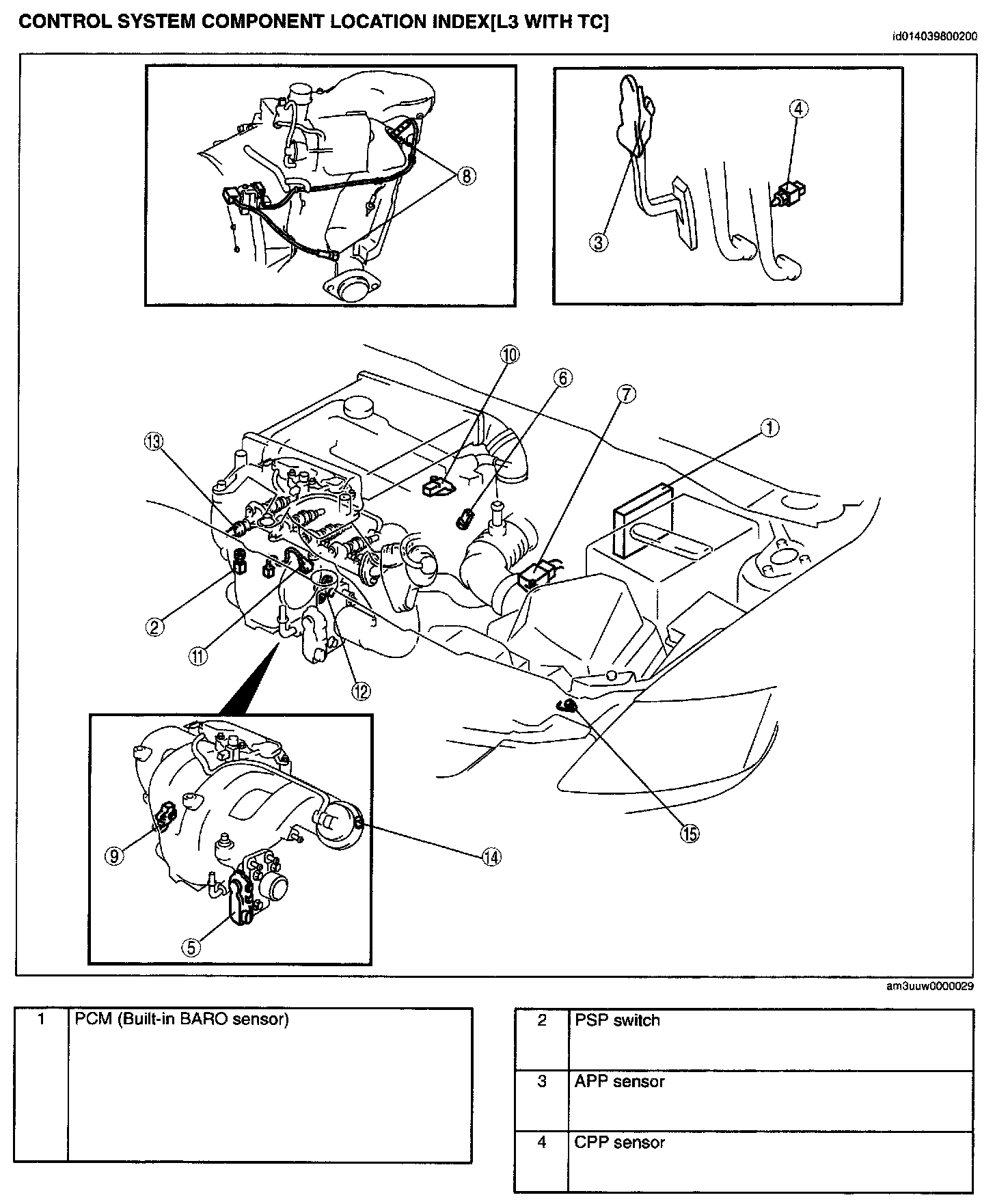

Control System Component Location Index[L3 With TC] Part 1:

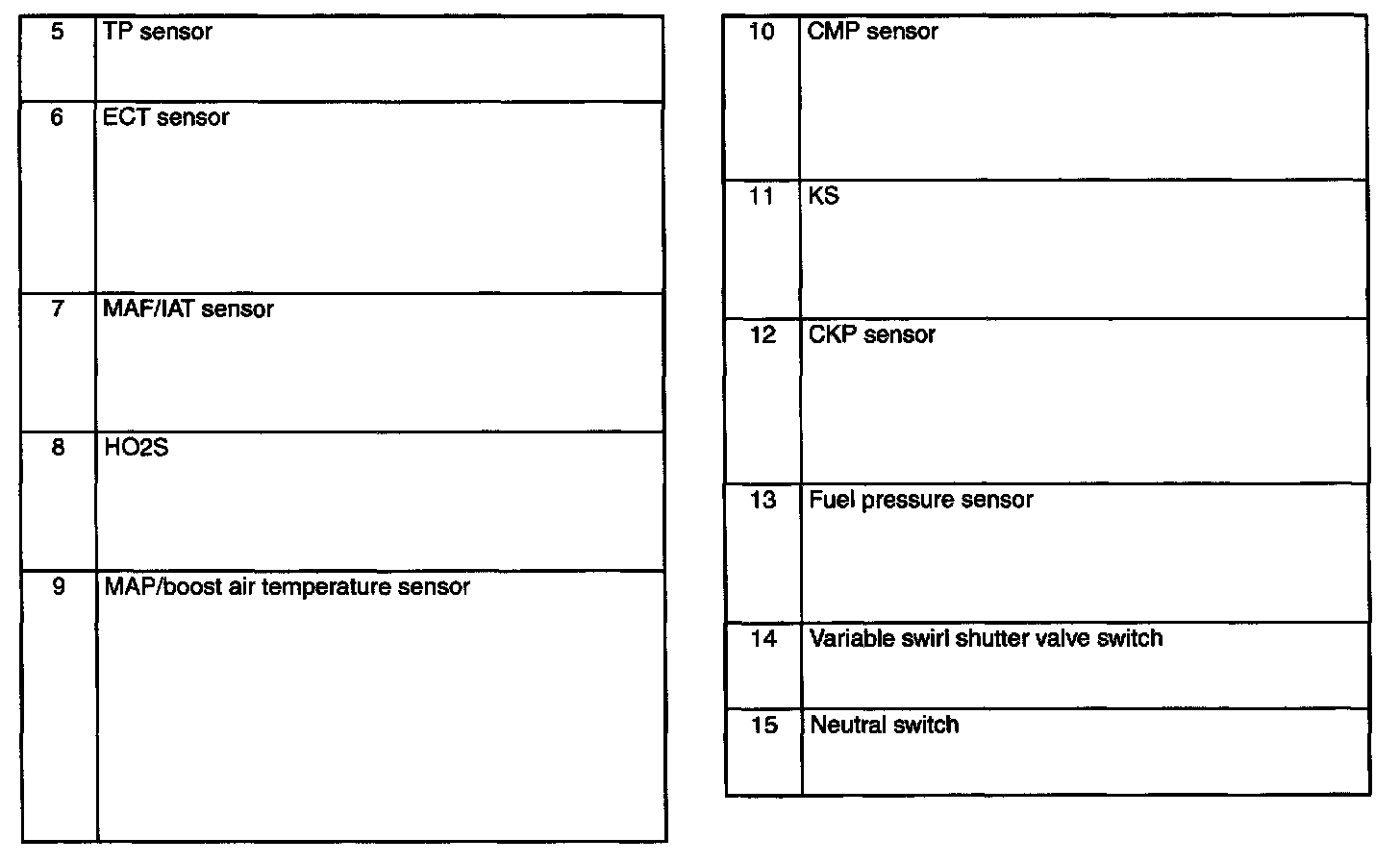

Control System Component Location Index[L3 With TC] Part 2:
