Removal and Replacement

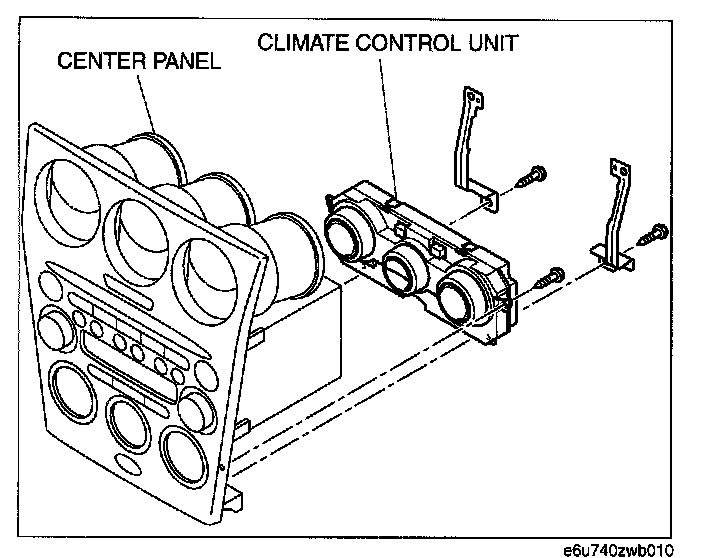

CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [L3 WITH TC]
1. Disconnect the negative battery cable.
2. Remove the center panel
3. Remove the screws and climate control unit.




4. Install in the reverse order of removal.
