DTC P0327: Notes
DTC P0327 DETECTION & CONDITION POSSIBLE CAUSES
| DTC P0327 |
KS circuit low input |
| DETECTION CONDITION |
- The PCM monitors the input voltage from the KS when the engine is running. If the input voltage is less than 1.2 V
, the PCM determines that the KS circuit input voltage is low.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition in the first drive cycle.
- PENDING CODE is available if the PCM detects the above malfunction condition.
- FREEZE FRAME DATA is available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- KS malfunction
- Connector or terminal malfunction

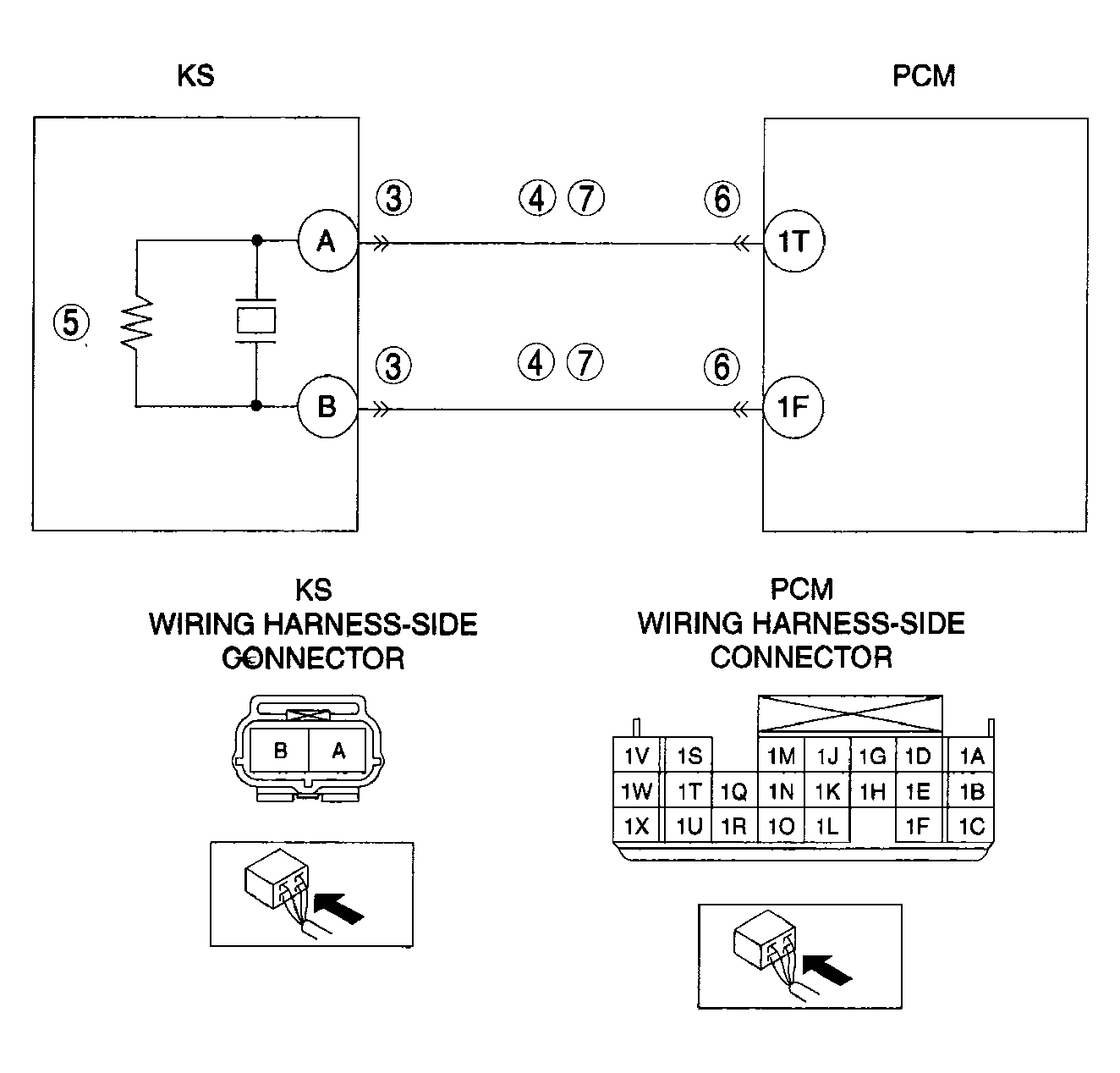

- Open circuit in wiring harness between KS terminal A and PCM terminal 1T
- Short to ground in wiring harness between KS terminal A and PCM terminal 1T
- Open circuit in wiring harness between KS terminal B and PCM terminal 1F
- Short to ground in wiring harness between KS terminal B and PCM terminal 1F
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
