DTC P1688

Metering oil pump control circuit initial check problem

DETECTION CONDITION

The PCM monitors the input signal from the metering oil pump switch when the metering oil pump stepping motor initial check is operating. If the input signal is on, the PCM determines that there is a metering oil pump control circuit initial check problem.

Diagnostic support note

This is a continuous monitor (CCM).
The MIL illuminates if the PCM detects the above malfunction condition in the first drive cycle.
PENDING CODE is available if the PCM detects the above malfunction condition.
FREEZE FRAME DATA is available.
The DTC is stored in the PCM memory.

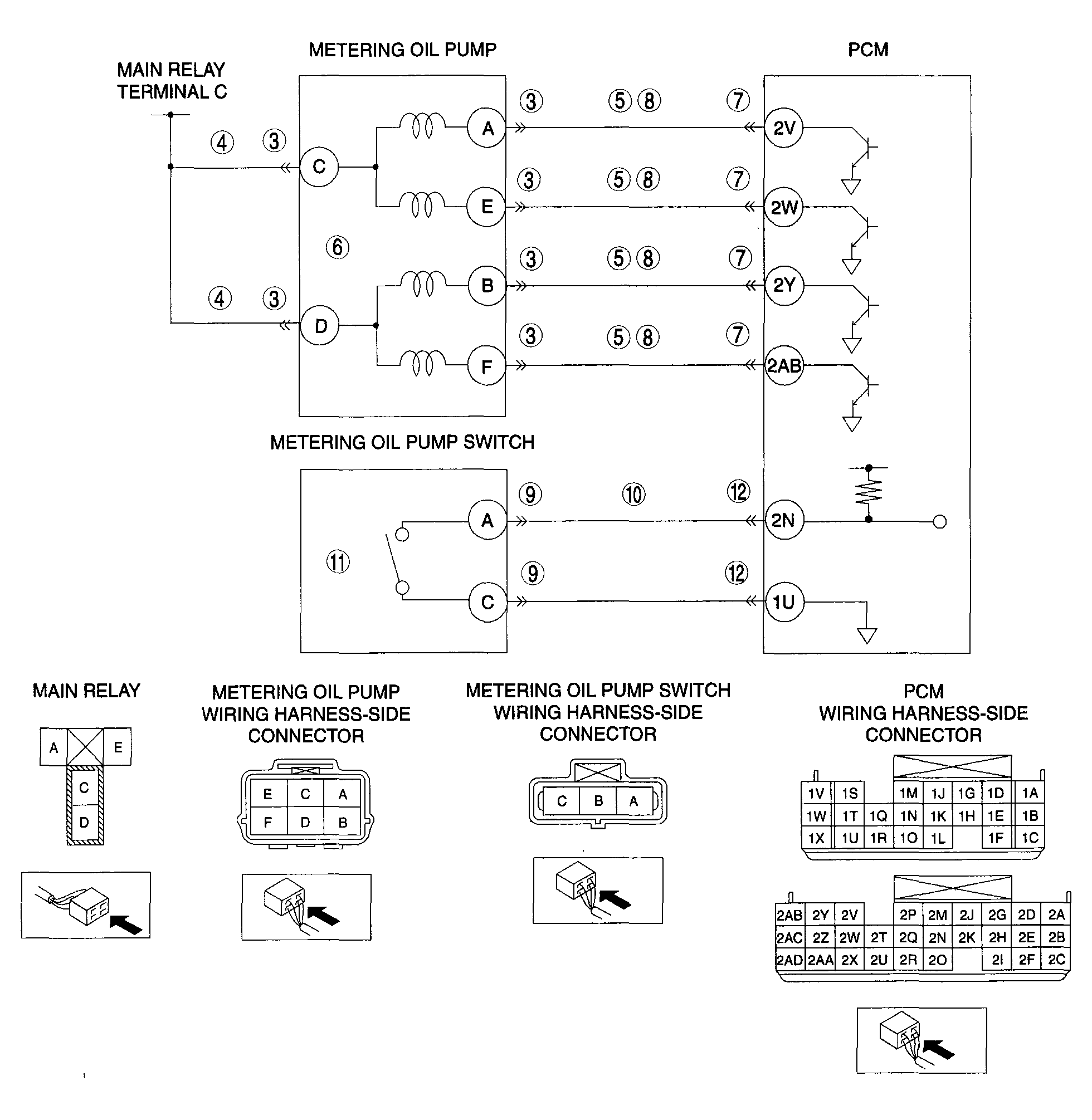

POSSIBLE CAUSE

Metering oil pump malfunction
Metering oil pump switch malfunction
Connector or terminal malfunction
Open circuit in wiring harness between main relay terminal C and metering oil pump terminal C
Short to ground in wiring harness between main relay terminal C and metering oil pump terminal C
Open circuit in wiring harness between main relay terminal C and metering oil pump terminal D
Short to ground in wiring harness between main relay terminal C and metering oil pump terminal D
Open circuit in wiring harness between metering oil pump terminal A and PCM terminal 2V
Short to ground in wiring harness between metering oil pump terminal A and PCM terminal 2V
Open circuit in wiring harness between metering oil pump terminal E and PCM terminal 2W
Short to ground in wiring harness between metering oil pump terminal E and PCM terminal 2W
Open circuit in wiring harness between metering oil pump terminal B and PCM terminal 2Y
Short to ground in wiring harness between metering oil pump terminal B and PCM terminal 2Y
Open circuit in wiring harness between metering oil pump terminal F and PCM terminal 2AB
Short to ground in wiring harness between metering oil pump terminal F and PCM terminal 2AB
Short to ground in wiring harness between metering oil pump switch terminal A and PCM terminal 2N
PCM malfunction

Courtesy of MAZDA MOTORS CORP.
