DTC P2103: Notes
DTC P2103 DETECTION & CONDITION POSSIBLE CAUSES
| DTC P2103 |
Throttle actuator power supply line circuit high input |
| DETECTION CONDITION |
- The PCM monitors the input voltage from the drive-by-wire relay when the PCM turns the drive-by-wire relay off. If the input voltage is more than 5.0 V
, the PCM determines that the drive-by-wire relay control circuit voltage is high.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition in the first drive cycle.
- PENDING CODE is available if the PCM detects the above malfunction condition.
- FREEZE FRAME DATA is available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- Drive-by-wire relay malfunction
- Connector or terminal malfunction

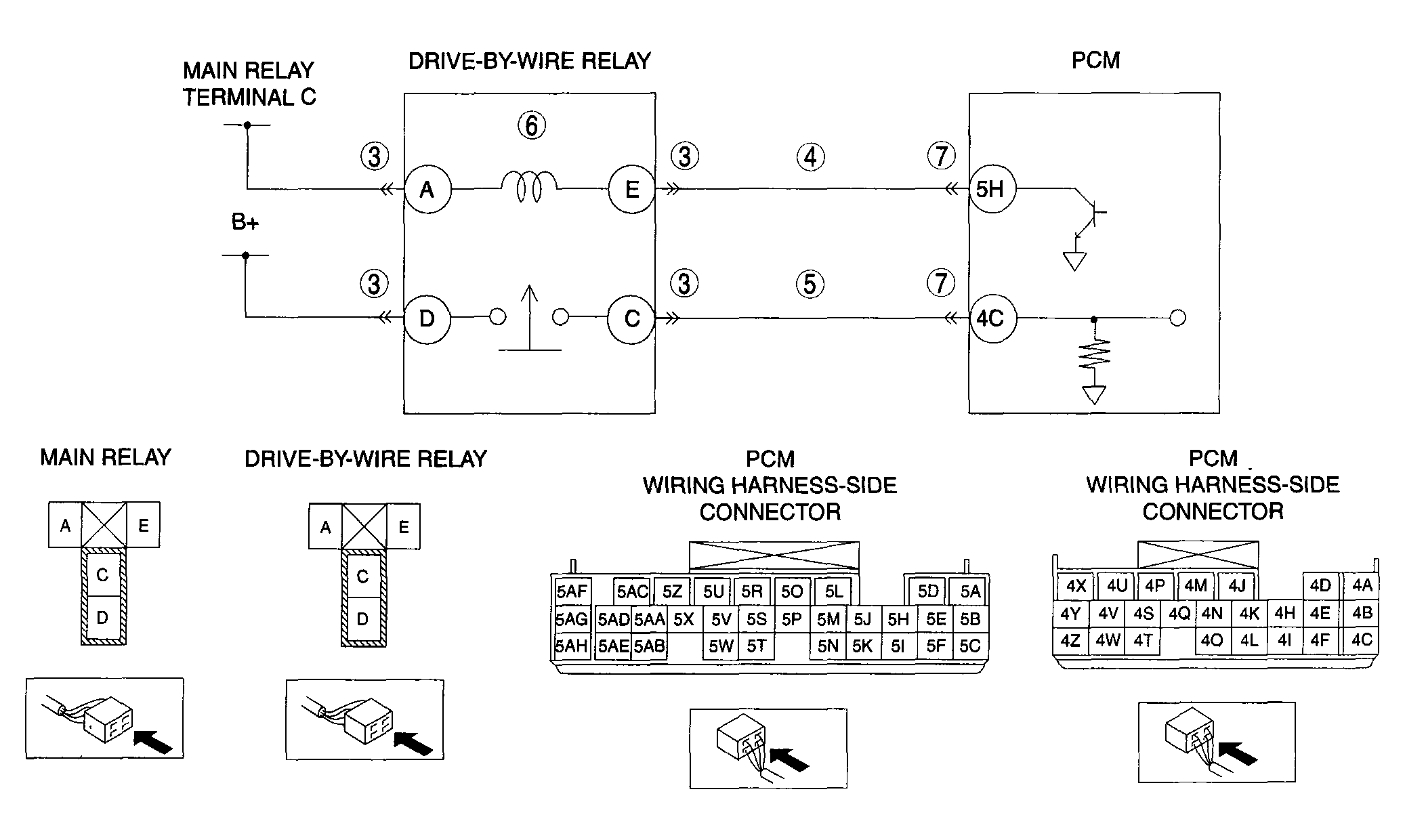

- Short to ground in wiring harness between drive-by-wire relay terminal E and PCM terminal 5H
- Short to power supply in wiring harness between drive-by-wire relay terminal C and PCM terminal 4C
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
