DTC P2122: Notes
DTC P2122 DETECTION & CONDITION POSSIBLE CAUSES
| DTC P2122 |
APP sensor No.1 circuit low input |
| DETECTION CONDITION |
- The PCM monitors the input voltage from the APP sensor No.1 when the engine is running. If the input voltage is less than 0.35 V
, the PCM determines that the APP sensor No.1 circuit input voltage is low.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition in the first drive cycle.
- PENDING CODE is available if the PCM detects the above malfunction condition.
- FREEZE FRAME DATA is available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- APP sensor No.1 malfunction
- Connector or terminal malfunction

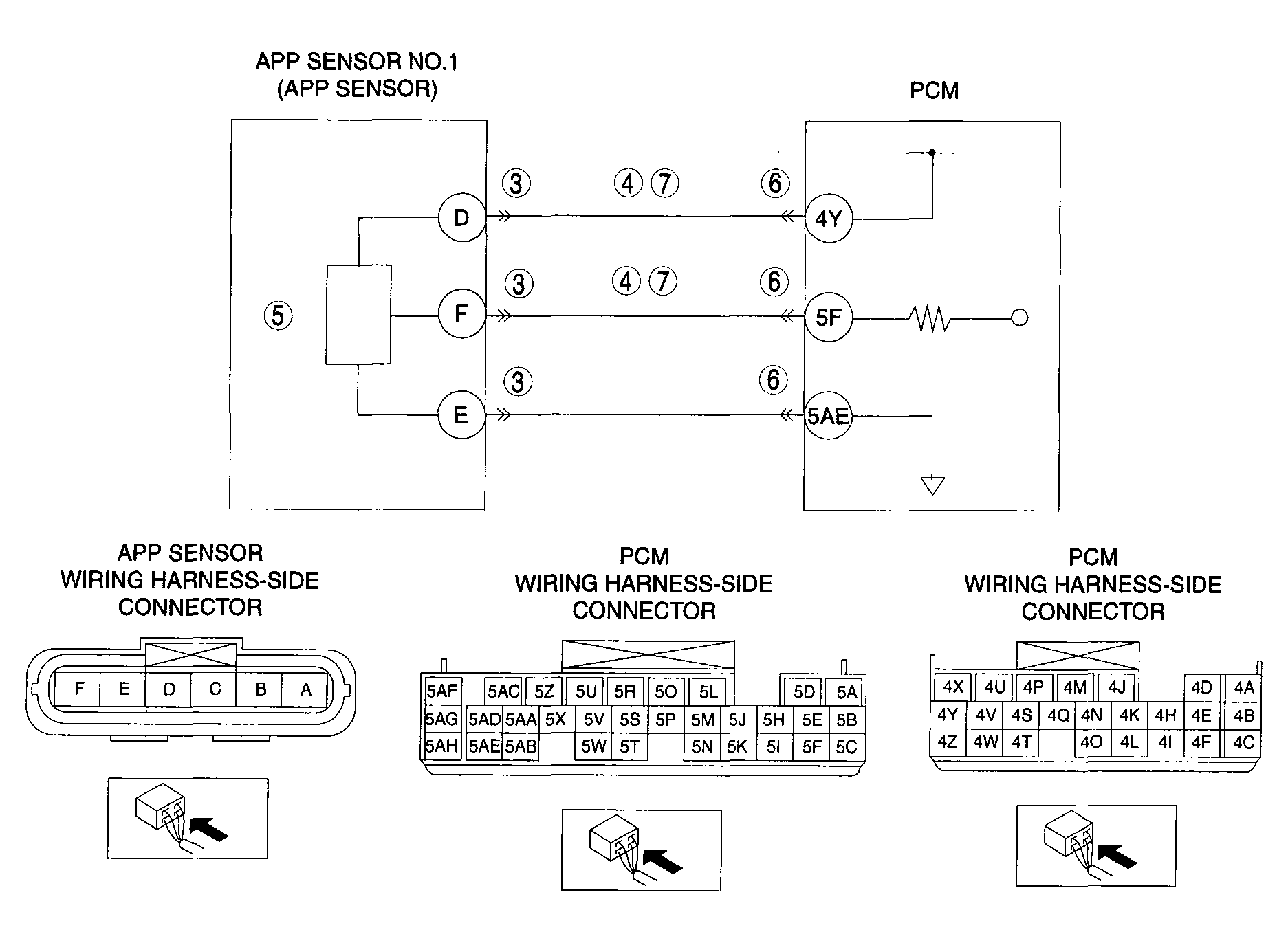

- Open circuit in wiring harness between APP sensor terminal D and PCM terminal 4Y
- Short to ground in wiring harness between APP sensor terminal D and PCM terminal 4Y
- Open circuit in wiring harness between APP sensor terminal F and PCM terminal 5F
- Short to ground in wiring harness between APP sensor terminal F and PCM terminal 5F
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
