DTC P2127: Notes
DTC P2127 DETECTION & CONDITION POSSIBLE CAUSES
| DTC P2127 |
APP sensor No.2 circuit low input |
| DETECTION CONDITION |
- The PCM monitors the input voltage from the APP sensor No.2 when the engine is running. If the input voltage is less than 0.35 V
, the PCM determines that the APP sensor No.2 circuit input voltage is low.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition in the first drive cycle.
- PENDING CODE is available if the PCM detects the above malfunction condition.
- FREEZE FRAME DATA is available.
- The DTC is stored in the PCM memory.
|

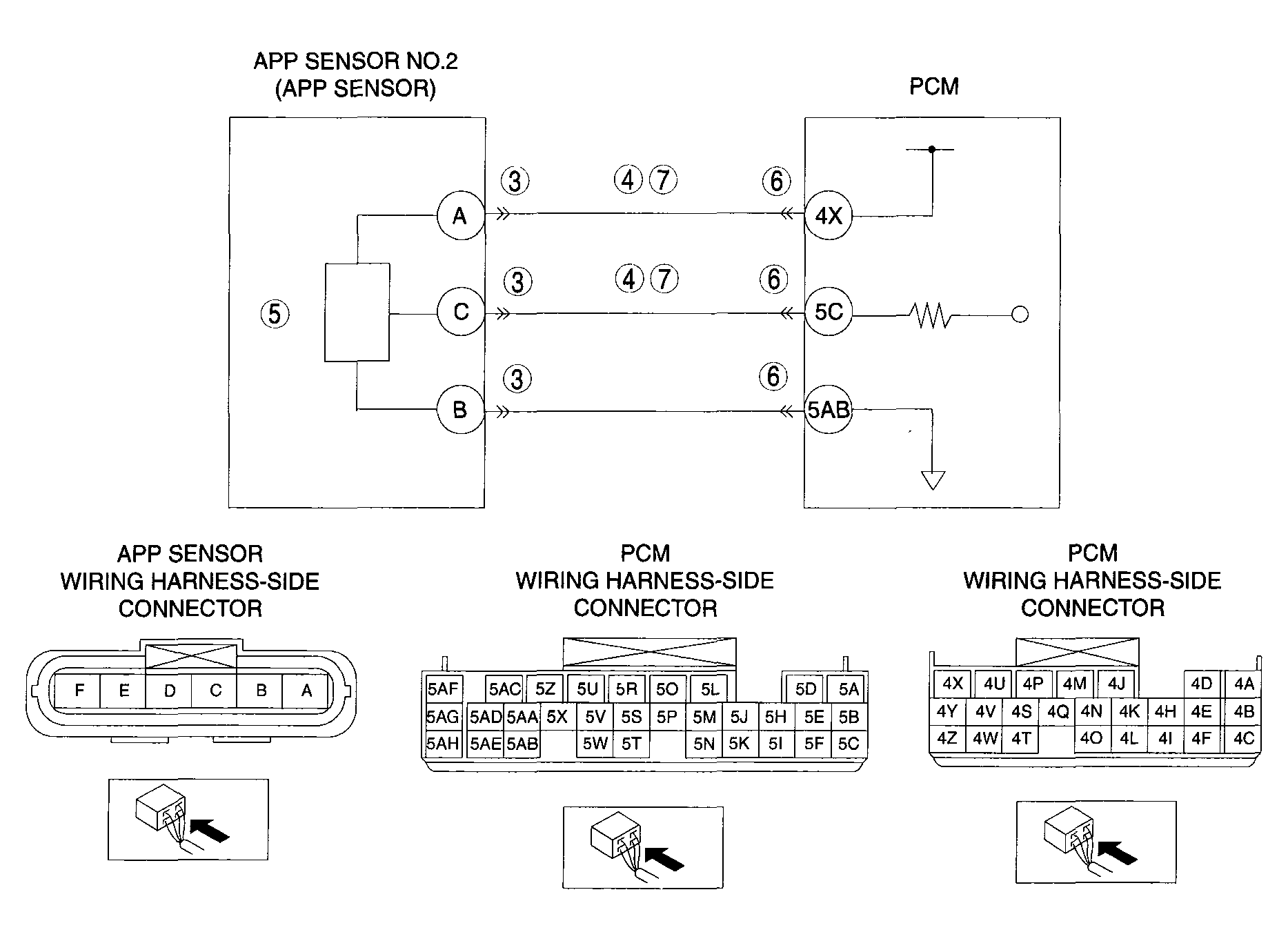

| POSSIBLE CAUSE |
- APP sensor No.2 malfunction
- Connector or terminal malfunction
- Open circuit in wiring harness between APP sensor terminal A and PCM terminal 4X
- Short to ground in wiring harness between APP sensor terminal A and PCM terminal 4X
- Open circuit in wiring harness between APP sensor terminal C and PCM terminal 5C
- Short to ground in wiring harness between APP sensor terminal C and PCM terminal 5C
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
