Monitoring System And Control System Device Relationship Chart

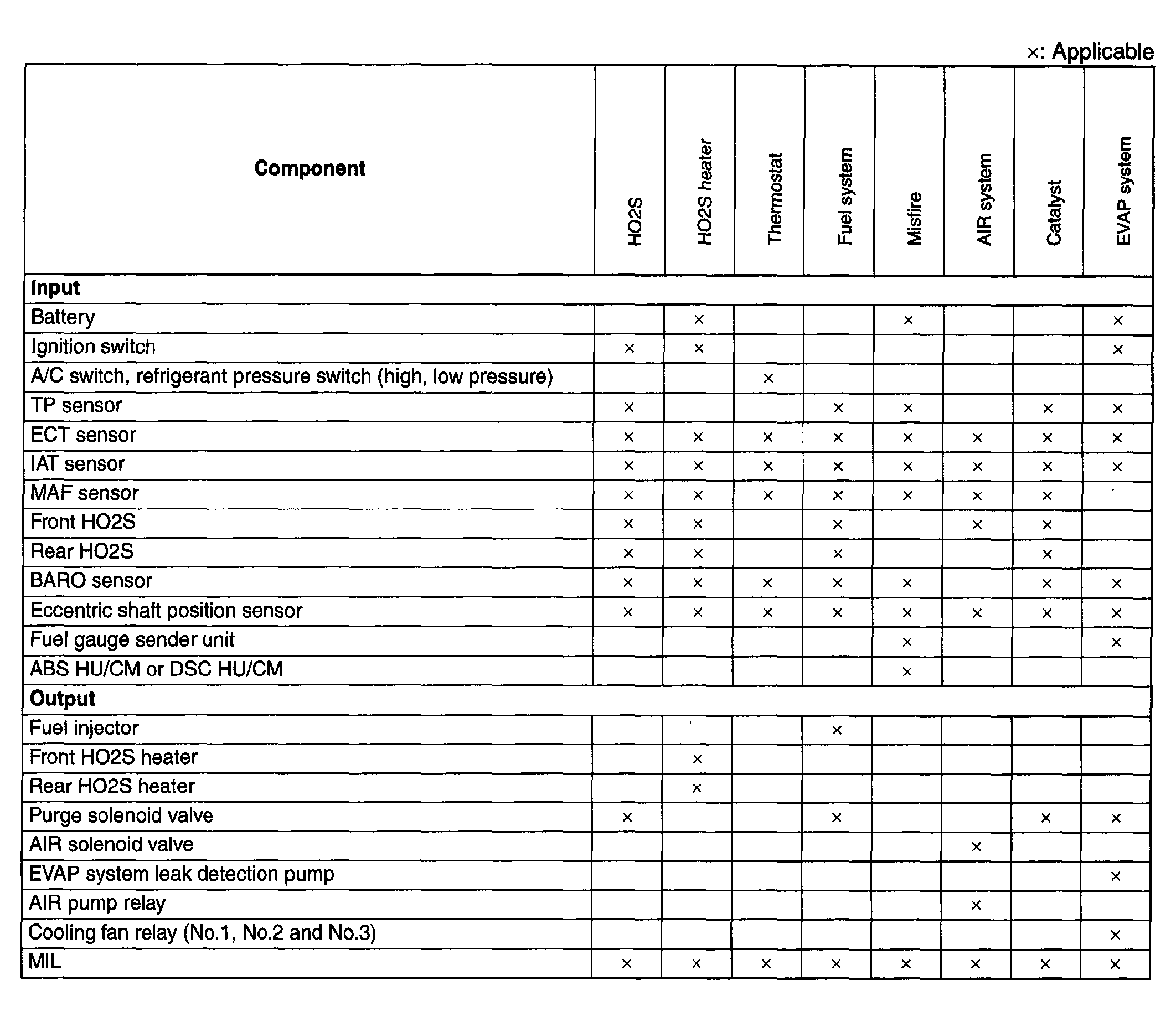

Fig 1: Monitoring System & Control System Device Relationship Chart
G04562620Courtesy of MAZDA MOTORS CORP.
