Mode 6 (EVAP System Repair Verification Drive Mode)

NOTE:

If the Mode 6 cannot be performed (you cannot drive the vehicle under the Mode 6 condition), perform the "Evaporative System Test" as an alternative. (See EVAPORATIVE EMISSION (EVAP) SYSTEM LEAK INSPECTION ).

NOTE:

If the Mode 6 cannot be performed (you cannot drive the vehicle under the Mode 6 condition), perform the "Evaporative System Test" as an alternative. (See EVAPORATIVE EMISSION (EVAP) SYSTEM LEAK INSPECTION )

Drive the vehicle as shown in the graph. The driving condition before driving at constant speed is not specified.

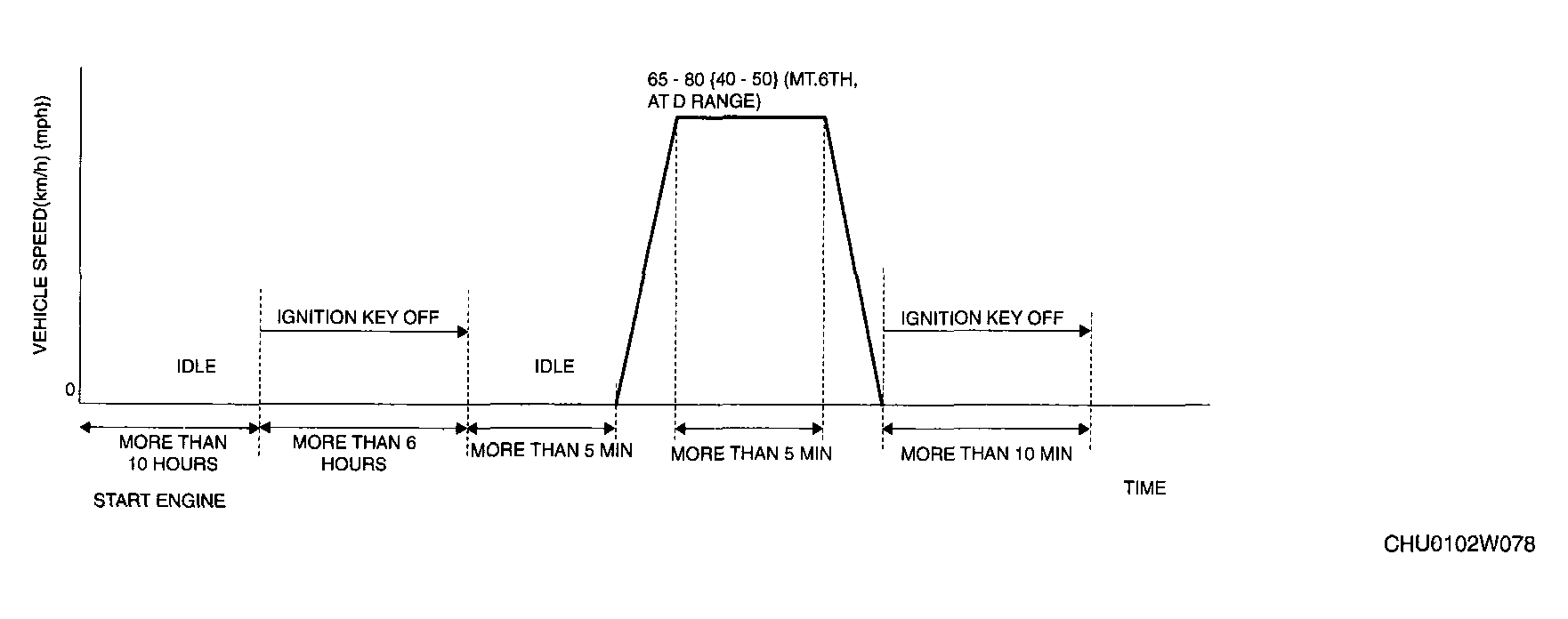

Fig 1: Driving Condition Graph
Courtesy of MAZDA MOTORS CORP.
Stop the vehicle and access the ON BOARD SYSTEM READINESS to inspect the Drive Mode completion status.
- If completed, RFC changes from No to Yes.
- If not completed, turn the ignition switch off, then go back to Step 1.
Access the DIAGNOSTIC MONITORING TEST RESULTS to inspect the monitor results.
- If detect values are not within specification, repair has not been completed.
Verify that no DTCs are available.
