Navigation Function Selector Switch: Service and Repair

CAR-NAVIGATION CONTROL SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the upper panel.




3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

Car-Navigation Control Switch Removal Note

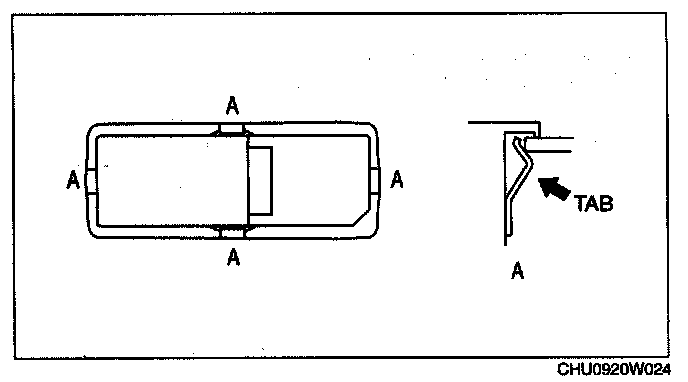

1. Remove the car-navigation control switch while pressing tabs A as shown in the figure.
