Ignition Coil: Service and Repair

IGNITION COIL REMOVAL/INSTALLATION
1. Remove the engine cover.
2. Remove the battery cover.
3. Remove the negative battery cable.
4. Remove the air hose.

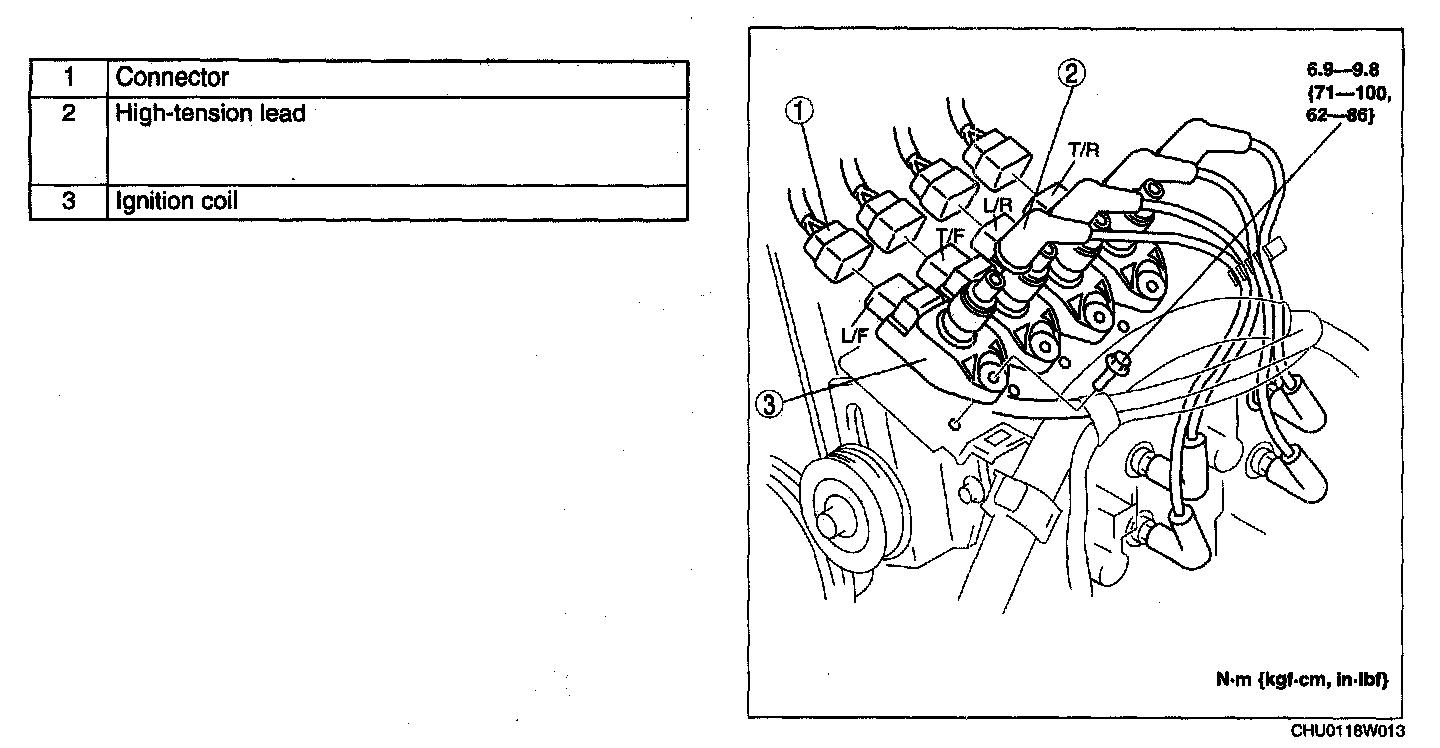

5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
