Climate Control Unit / Climate Control Unit Illumination
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Climate Control Unit / Climate Control Unit Illumination

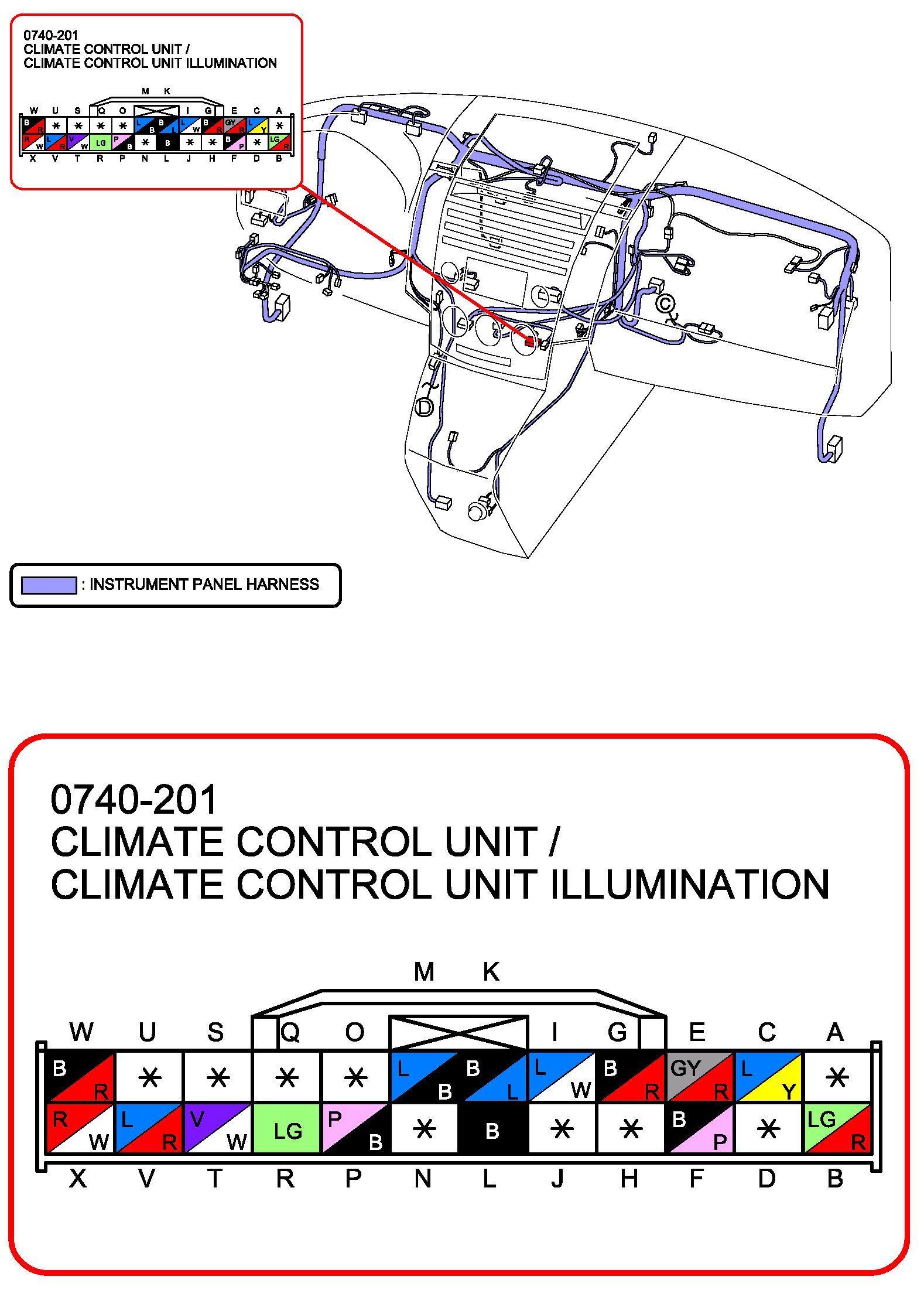

Climate Control Unit / Climate Control Unit Illumination:

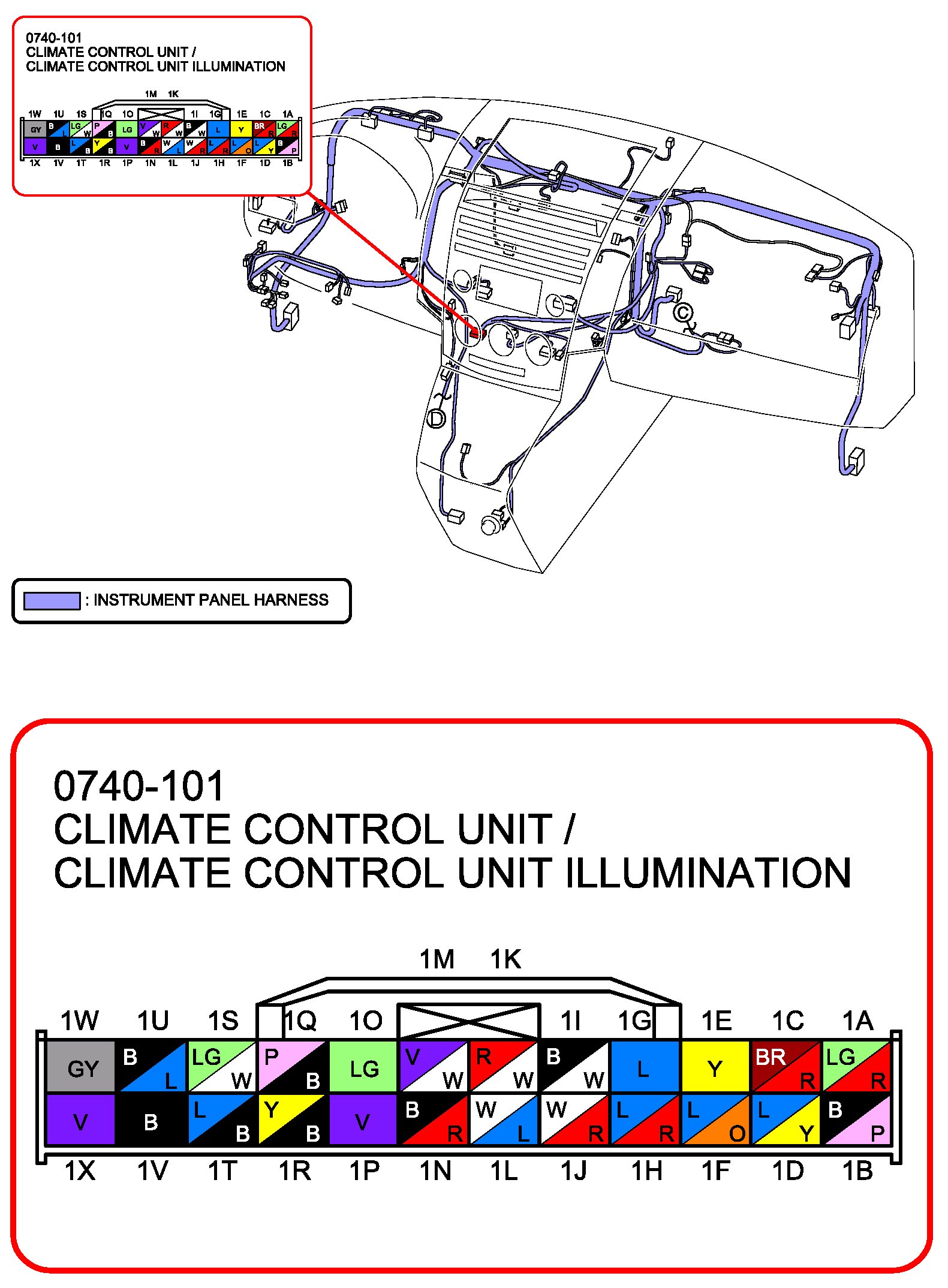

Climate Control Unit / Climate Control Unit Illumination:
